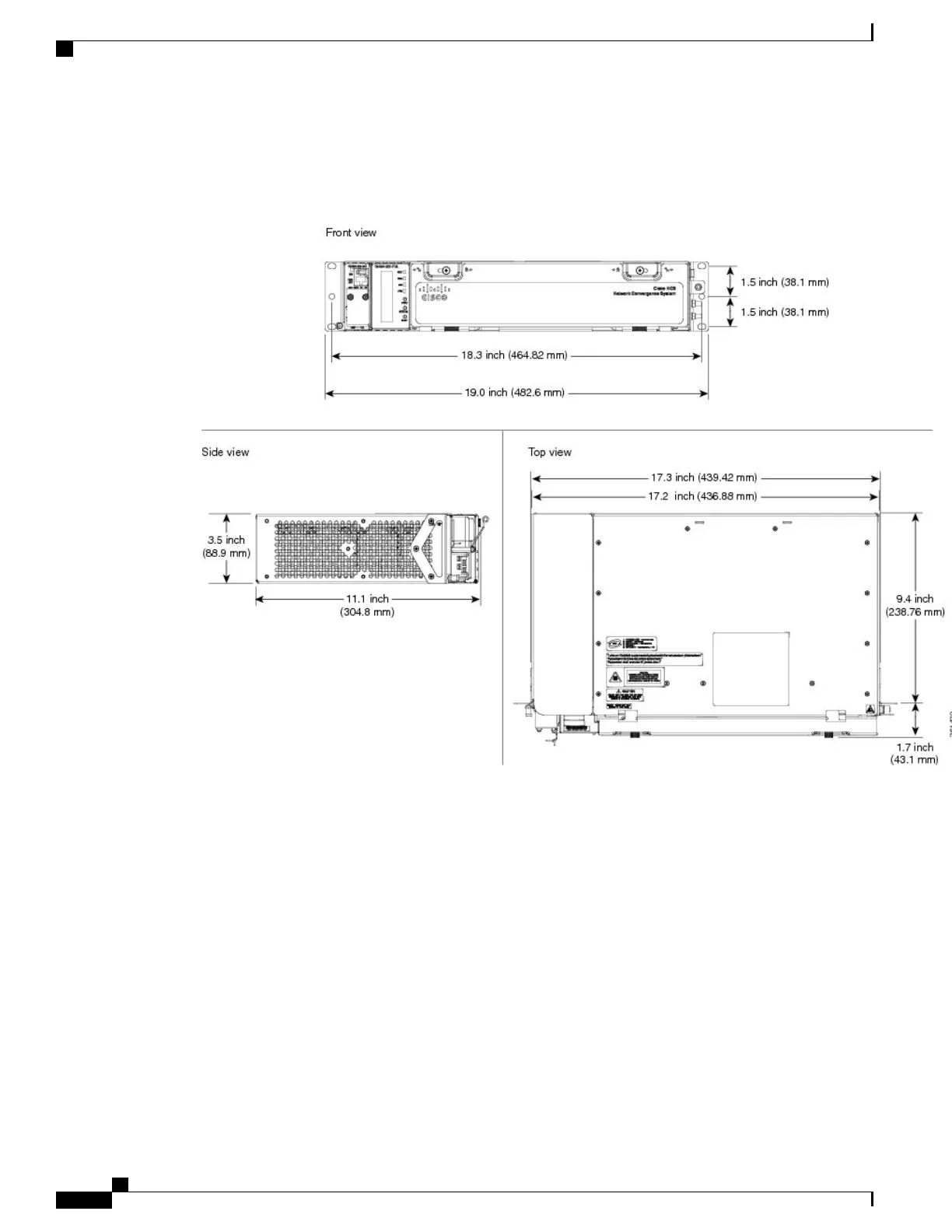

The figure below shows the dimensions of the NCS 2002 shelf on a 19-inch (482.6 mm) ANSI rack
configuration with brackets mounted in the front position.
Figure 38: Cisco NCS 2002 Shelf Dimensions for a 19-inch ANSI Rack Configuration
Mounting a Single Node
Mounting the NCS 2002 shelf on a rack requires a minimum of 3.5 inches (88.9 mm) of vertical rack space.
To ensure that the mounting is secure, use two to three #12-24 mounting screws for each side of the shelf.
For an ANSI rack, the brackets can be mounted in the front or middle position. The shelf should be empty
for easier lifting.
The NCS 2002 shelves can be mounted above each other without any space between the shelves. This method
of mounting does not restrict the air flow because the air vents are on either sides of the NCS 2002 shelves.
ETSI Rack Installation
The NCS 2002 shelf is mounted on a 600 x 600-mm (23.6 x 23.6-inch) or 600 x 300-mm (23.6 x 11.8-inch)
ETSI standard equipment rack. In an ETSI rack, the shelf can be mounted only in the front position. The shelf
Cisco NCS 2000 Series Hardware Installation Guide
62
Mounting the Cisco NCS 2002 Shelf
Mounting a Single Node
