Procedure
Step 1
Connect the ground strap cable to the shelf:
a) Loosen and remove the ground nut from the shelf. See the figure below.
b) Insert the lug of the ground strap cable and tighten the nut on the shelf to a torque value of 11.5 in-lb (1.3
N-m).
c) Route the other end of the ground strap cable outside the shelf at an angle of 180 degrees towards the left
direction.

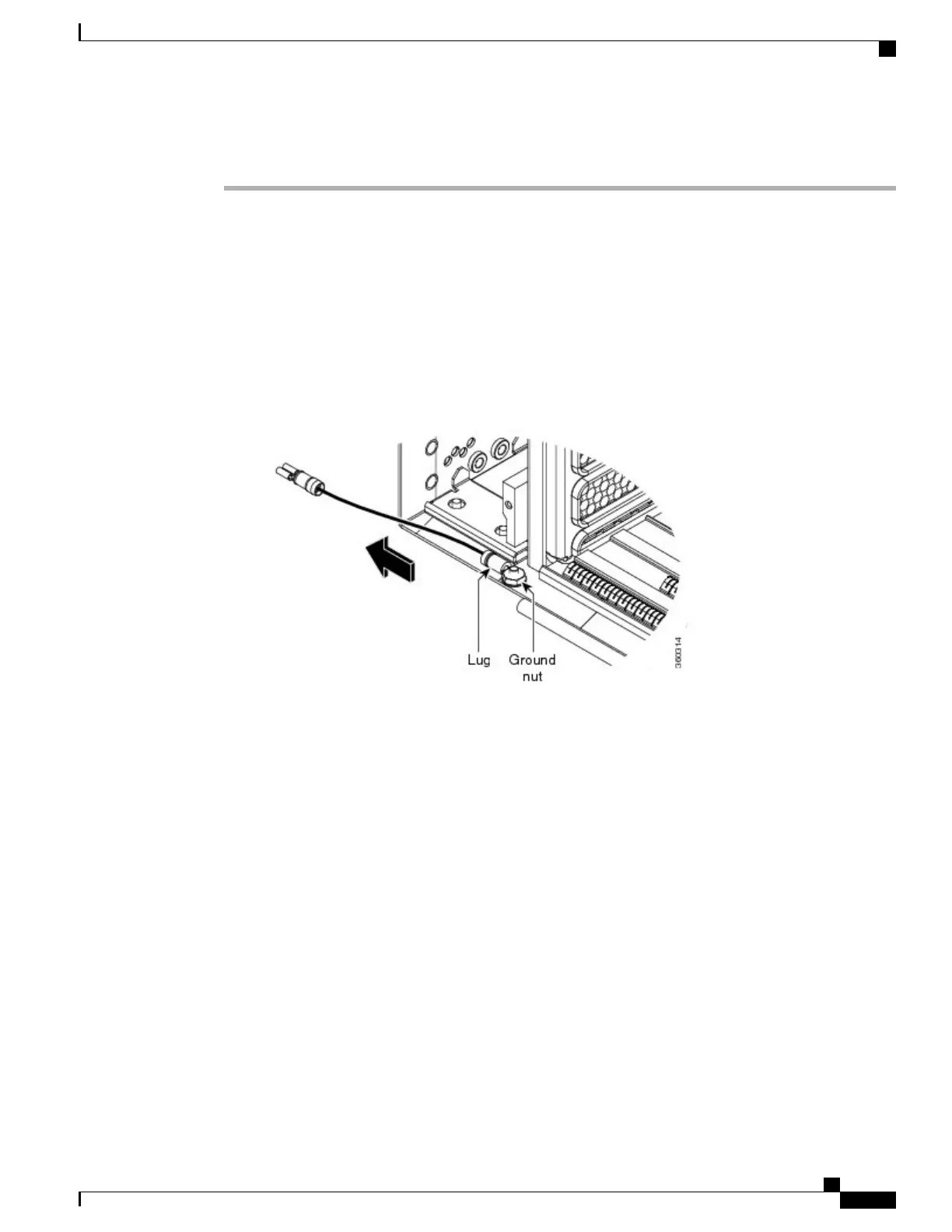

Figure 151: Inserting the Lug to the Shelf
Cisco NCS 2000 Series Hardware Installation Guide
259
Installing the Cisco NCS 2006 Door and Other Modules
NTP-L39 Install the Deep-Front Panel of the NCS 2006
