Step 5
Connect the other end of the ground strap cable to a grounding point on the chassis (see the figure below).

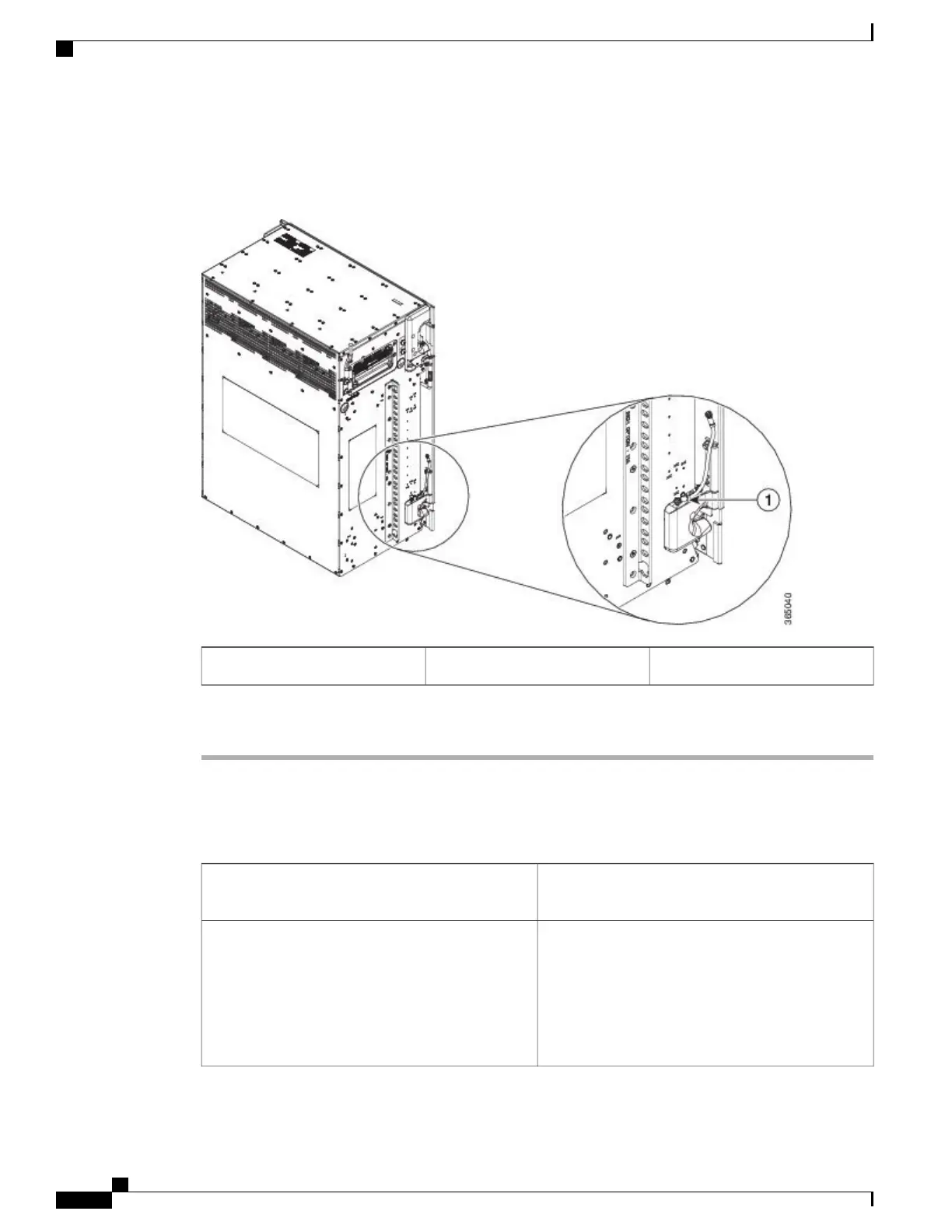

Figure 213: Installing the Ground Strap Cable on the NCS 2015 DC Shelf
Grounding point on the chassis1
Stop. You have completed this procedure.
NTP-L61 Installing Deep Door of NCS 2015 Shelf
This procedure installs the deep door of the NCS 2015
shelf.
Purpose
•
#2 Phillips Dynamometric screwdriver
•
10 M3 x 10 mm pan-head screws
•
One M3 x 8 mm pan-head screw
•
One M3 x 6 mm pan-head screw
Tools/Equipment
Cisco NCS 2000 Series Hardware Installation Guide
372
Installing the Cisco NCS 2015 Door and Other Modules
NTP-L61 Installing Deep Door of NCS 2015 Shelf
