For a 23-inch (584.2-mm) configuration, place the narrow side of the mounting bracket flush against
the shelf (see the figure below). The widest side of the mounting bracket should be towards the front of
the shelf.

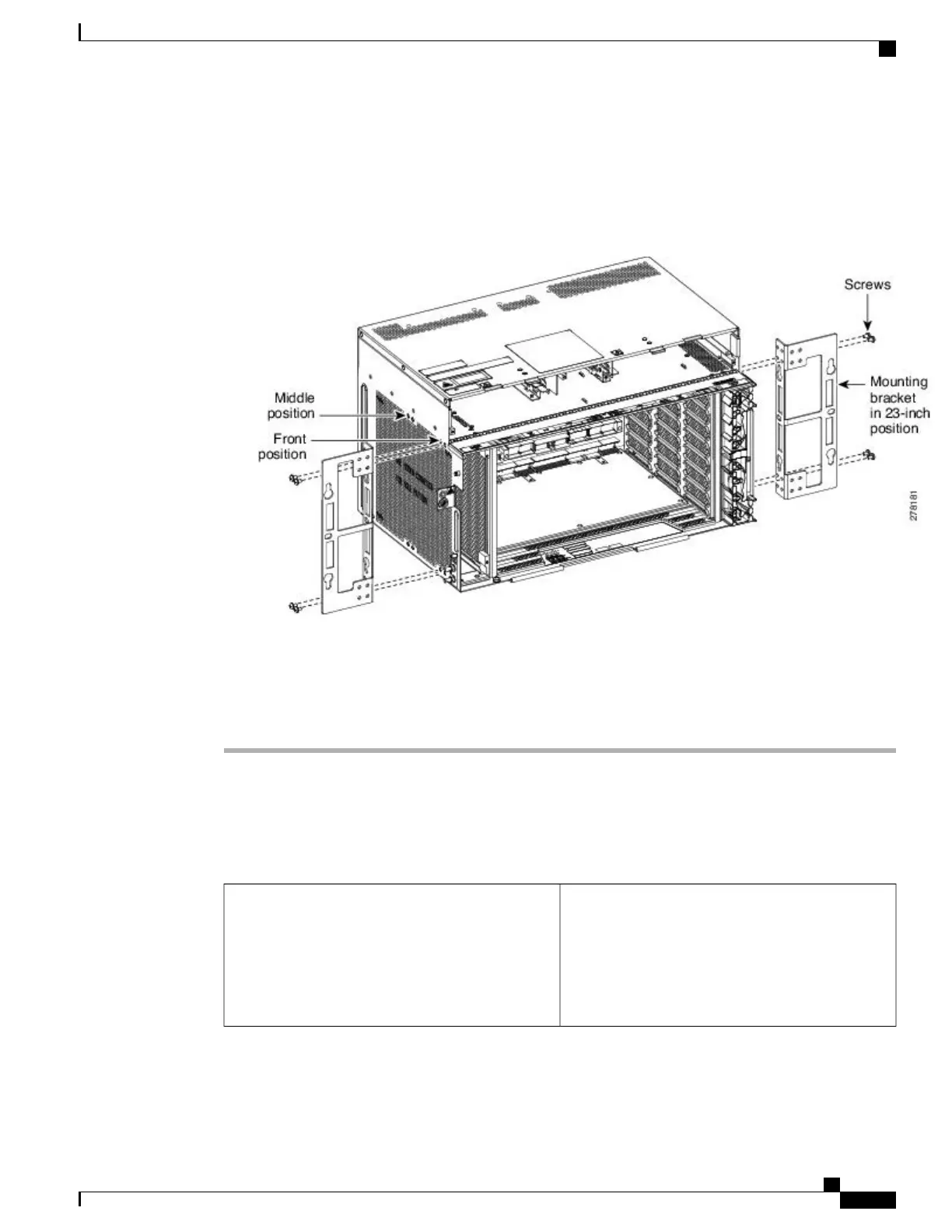

Figure 107: Mounting the Brackets on the NCS 2006 shelf for a 23-inch (584.2-mm) ANSI Configuration
Step 2
Align the mounting bracket screw holes against the shelf screw holes.
Step 3
Insert the screws and tighten them to a torque value of 11.5 in-lb (1.3 N-m).
Step 4
Repeat steps 1 through 3 for the mounting bracket on the opposite side.
Step 5
Return to your originating procedure (NTP).
DLP-L4 Mounting the Bracket with Air Deflectors (Front-to-Back) on the NCS
2006 Shelf for ANSI Rack Configuration
This task installs the bracket with air deflectors
(front-to-back) on the NCS 2006 shelf for ANSI rack
configuration.
In an ANSI rack, the air deflectors can be
mounted only in the 23-inch rack
configuration and in the front position of the
chassis.
Note
Purpose
Cisco NCS 2000 Series Hardware Installation Guide
171
Mounting the Brackets on NCS 2006 Shelf
DLP-L4 Mounting the Bracket with Air Deflectors (Front-to-Back) on the NCS 2006 Shelf for ANSI Rack Configuration
