Procedure
Step 1
Place the wider side of the 19-inch mounting bracket flush against the shelf (see the figure below). The narrow
side of the mounting bracket should be towards the front of the shelf.
Step 2
Align the mounting bracket screw holes against the shelf screw holes.
Step 3
Insert the screws and tighten them to a torque value of 11.5 in-lb (1.3 N-m).
Step 4
Repeat steps 1 through 3 for the mounting bracket on the opposite side.

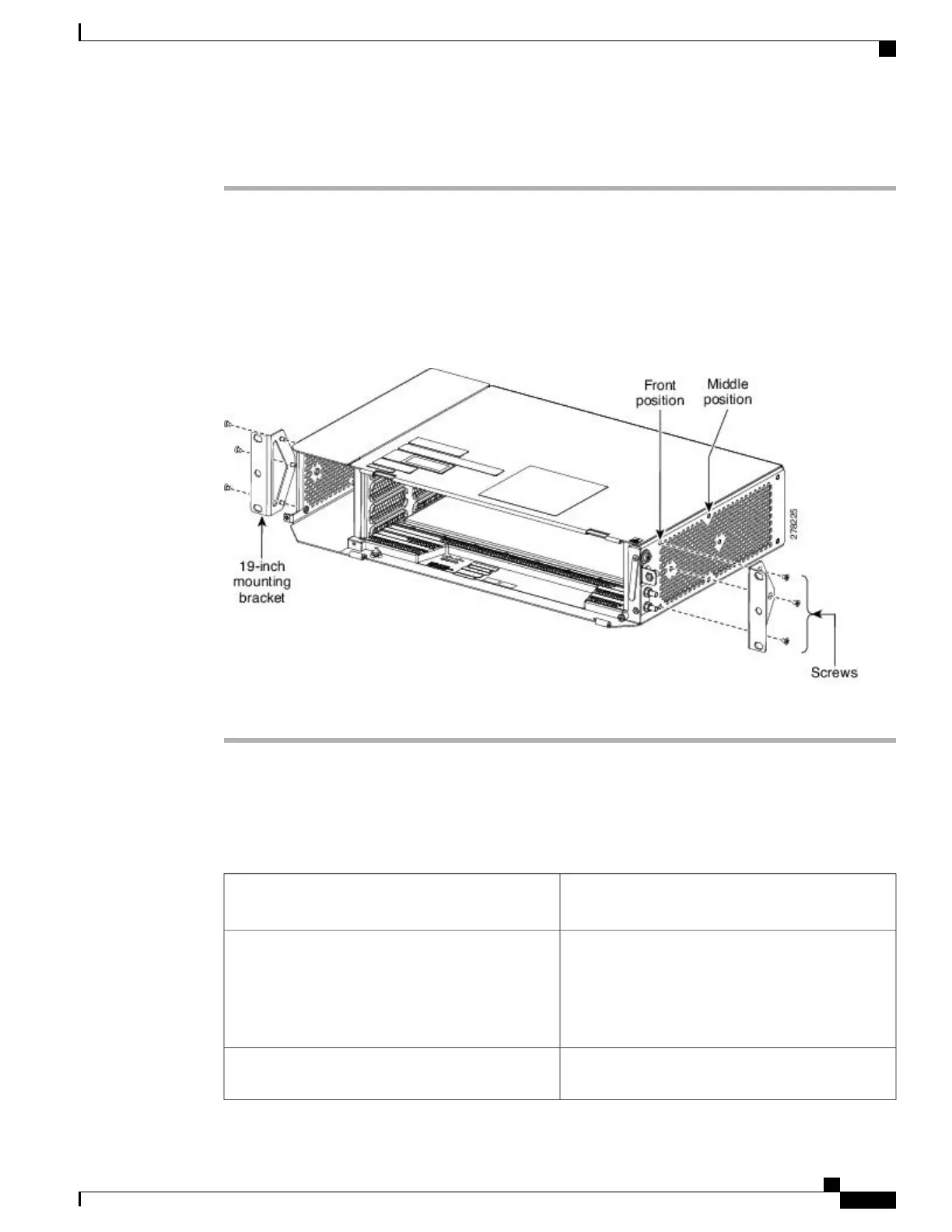

Figure 30: Mounting the Brackets on the NCS 2002 shelf for a 19-inch (482.6-mm) ANSI Configuration
Step 5
Return to your originating procedure (NTP).
DLP-L36 Mounting the 23-inch Brackets on the NCS 2002 Shelf for ANSI Rack
Configuration
This task installs the 23-inch mounting brackets on
the NCS 2002 shelf for ANSI rack configuration.
Purpose
•
#2 Phillips Dynamometric screwdriver
•
Medium slot-head screwdriver
•
Small slot-head screwdriver
Tools/Equipment
NTP-L41 Unpacking and Inspecting the Shelf, on
page 20.
Prerequisite Procedures
Cisco NCS 2000 Series Hardware Installation Guide
47
Mounting the Cisco NCS 2002 Brackets
DLP-L36 Mounting the 23-inch Brackets on the NCS 2002 Shelf for ANSI Rack Configuration
