Step 10
Place the 23-inch mounting bracket flush in the front position (see Diagram 1 of the following figure) or in
the middle position (see Diagram 3 of the following figure) against the right side of the chassis.
Step 11
Align the screw holes on the 23-inch mounting bracket with the screw holes on the right side of the chassis.
Step 12
Insert the screws and tighten them to a torque value of 11.5 in-lb (1.3 N-m).
Step 13
Place the 23-inch mounting bracket flush in the front position (see Diagram 1 of the following figure) or in
the middle position (see Diagram 3 of the following figure) against the left side of the chassis.
Step 14
Align the screw holes on the 23-inch mounting bracket with the screw holes on the left side of the chassis.
Step 15
Insert the screws and tighten them to a torque value of 11.5 in-lb (1.3 N-m).

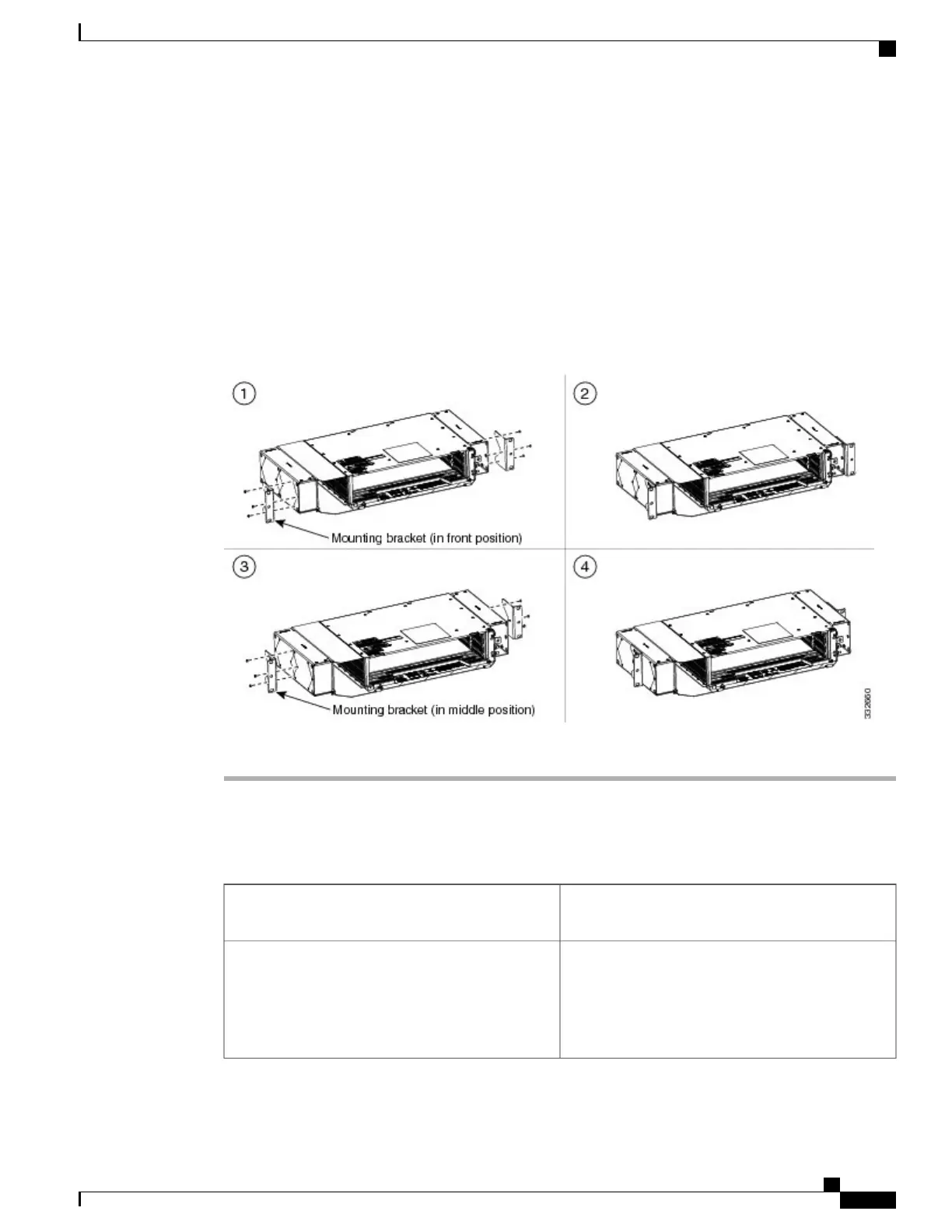

Figure 32: Mounting the Brackets on the NCS 2002 Shelf for ANSI Rack Configuration
Step 16
Return to your originating procedure (NTP).
NTP-L45 Mounting the Brackets in ETSI Configuration
This task installs the 19-inch mounting brackets to
the NCS 2002 shelf for ANSI rack configuration.
Purpose
•
#2 Phillips Dynamometric screwdriver
•
Medium slot-head screwdriver
•
Small slot-head screwdriver
Tools/Equipment
Cisco NCS 2000 Series Hardware Installation Guide
51
Mounting the Cisco NCS 2002 Brackets
NTP-L45 Mounting the Brackets in ETSI Configuration
