Step 5
Align the screw holes on the left back air deflector with the screw holes on the chassis.
Step 6
Insert the screws and tighten them to a torque value of 11.5 in-lb (1.3 N-m). See Diagram 1 of the figure
below.
Step 7
Place the air deflector covers on the rear ends of the chassis as shown in Diagram 2 of the figure below.
Step 8
Align the screw holes on the air deflector covers with the screw holes on the chassis.
Step 9
Insert the screws and tighten them to a torque value of 11.5 in-lb (1.3 N-m).
Step 10
Place the mounting bracket flush in the front position (see Diagram 3 of the figure below) against the right
side of the chassis.
Step 11
Align the screw holes on the mounting bracket with the screw holes on the right side of the chassis.
Step 12
Insert the screws and tighten them to a torque value of 11.5 in-lb (1.3 N-m).
Step 13
Place the other mounting bracket flush in the front position (see Diagram 3 of the figure below) against the
left side of the chassis.
Step 14
Align the screw holes on the mounting bracket with the screw holes on the left side of the chassis.
Step 15
Insert the screws and tighten them to a torque value of 11.5 in-lb (1.3 N-m).

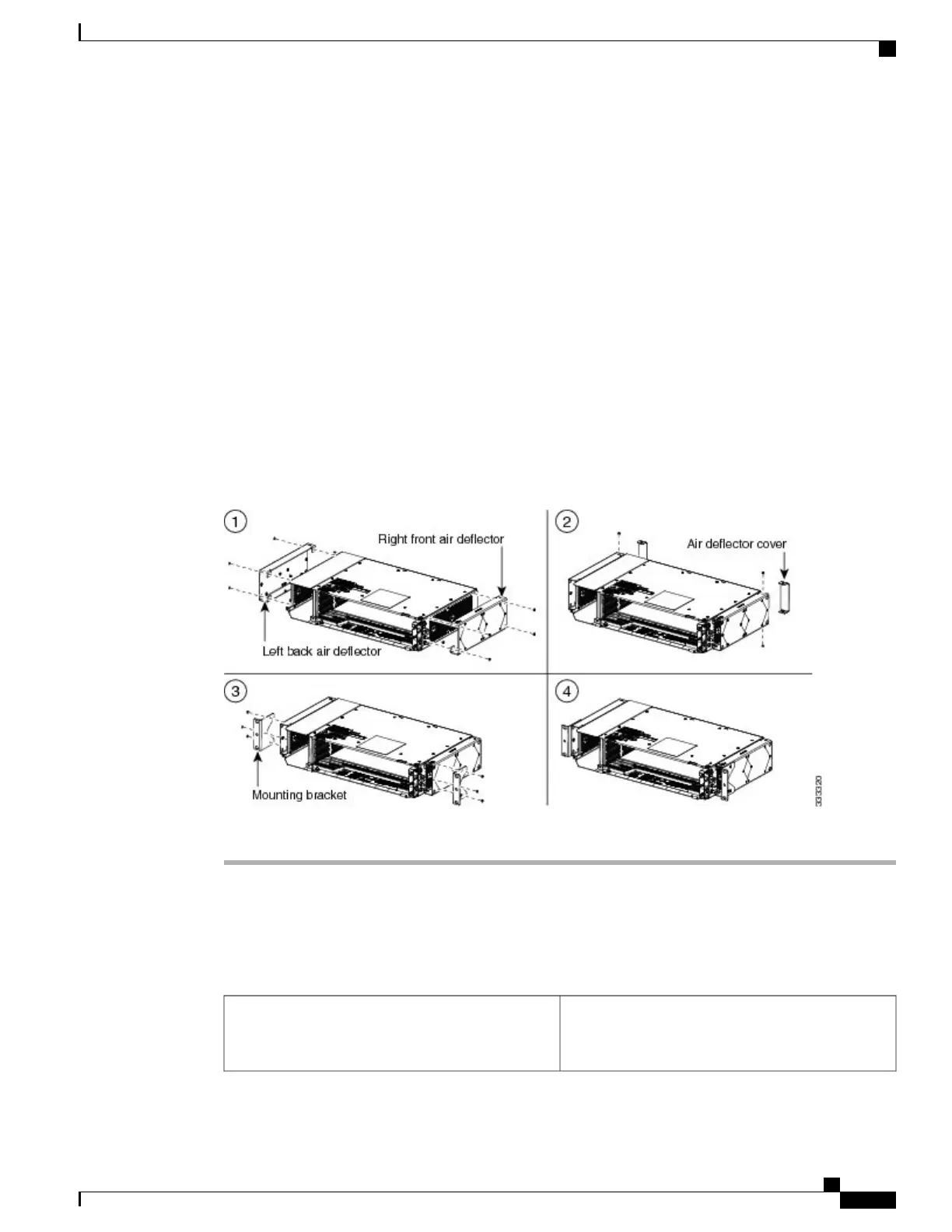

Figure 34: Mounting the Air Deflectors (Front-to-Front) on the NCS 2002 Shelf for ETSI Rack Configuration
Step 16
Return to your originating procedure (NTP).
DLP-L40 Mounting the Bracket with Air Deflectors (Front-to-Back) on the NCS
2002 Shelf for ETSI Rack Configuration
This task installs the bracket with air deflectors
(front-to-back) on the NCS 2002 shelf for ETSI rack
configuration.
Purpose
Cisco NCS 2000 Series Hardware Installation Guide
55
Mounting the Cisco NCS 2002 Brackets
DLP-L40 Mounting the Bracket with Air Deflectors (Front-to-Back) on the NCS 2002 Shelf for ETSI Rack Configuration
