The figure below shows the dimensions of the NCS 2006 shelf on a 19-inch (482.6 mm) ANSI rack
configuration with brackets mounted in the front position.

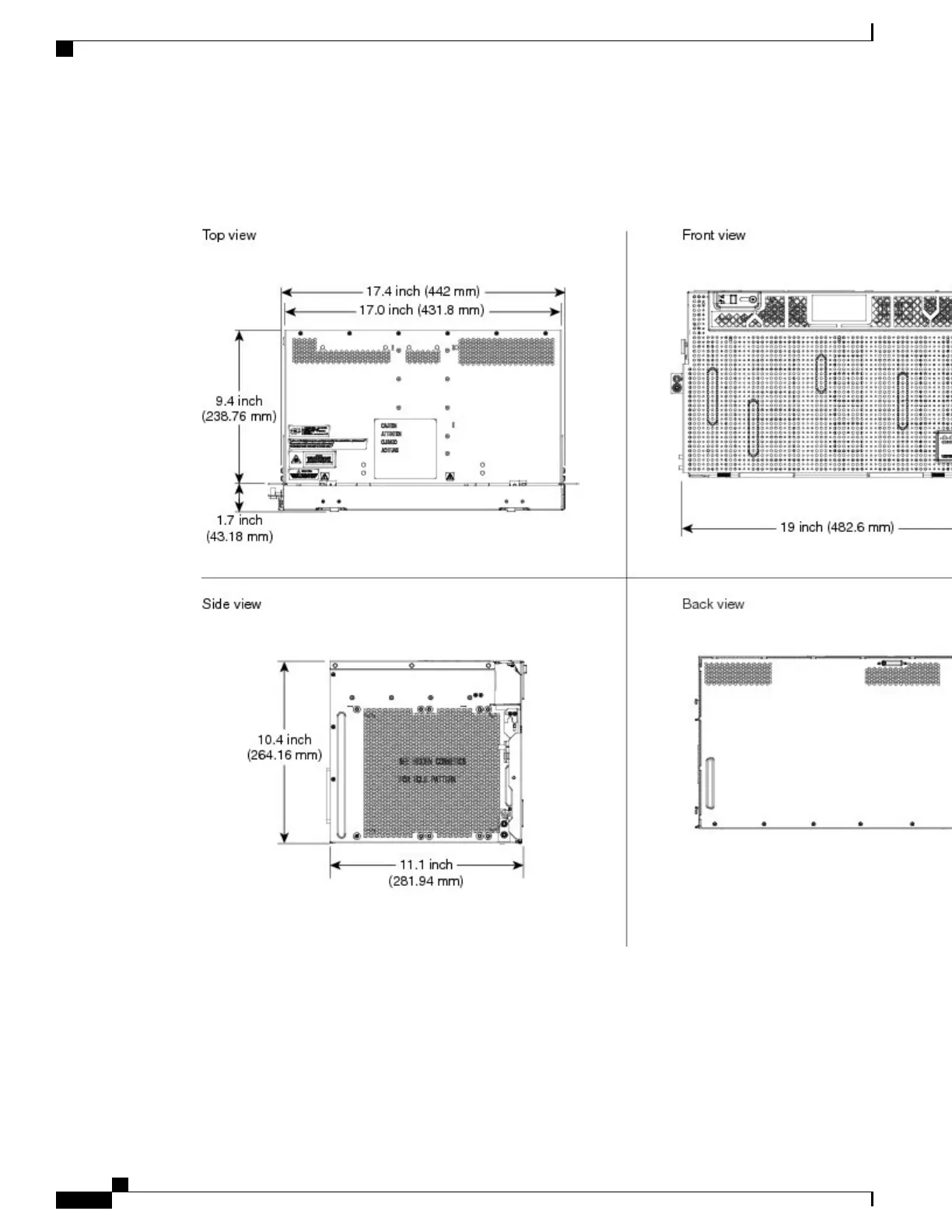

Figure 115: Cisco NCS 2006 Shelf Dimensions for a 19-inch ANSI Rack Configuration
Mounting a Single Shelf
Mounting the NCS 2006 shelf on a rack requires a minimum of 10.4-inches (265 mm) of vertical rack space.
To ensure that the mounting is secure, use two to three #12-24 mounting screws for each side of the shelf.
For an ANSI rack, the brackets can be mounted in the front or middle position.
Cisco NCS 2000 Series Hardware Installation Guide
186
Mounting the Cisco NCS 2006 Shelf
Mounting a Single Shelf
