Cisco NCS 2006 - NTP-L42 Install the Air Plenum in NCS 2002 Shelf

Front-to-back air flowRack / Cabinet
SupportedANSI 23-inch rack
SupportedANSI 23-inch cabinet
Supported
1
ETSI cabinet
1
A minimum opening of 20.600 inches is required to install the vertical air plenum behind the front rails.
The ANSI 19-inch two post rack that is compatible with air plenum installation is available from Telect,
with part number 12545-301.
Note

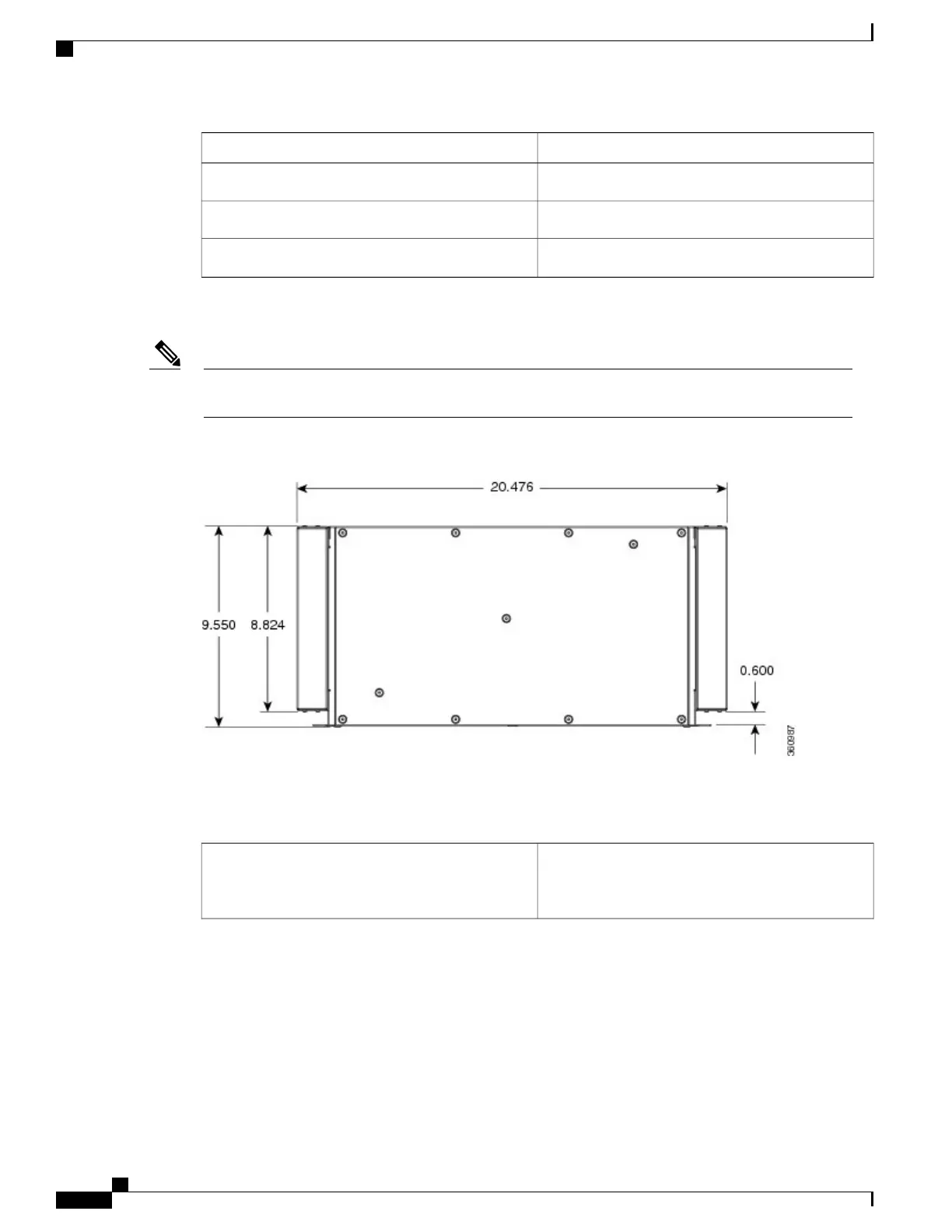

Figure 13: Minimum rear opening for ANSI 19-inch and ETSI configuration
NTP-L42 Install the Air Plenum in NCS 2002 Shelf
This procedure installs the air plenum to orient the
air flow in front-to- back direction in the NCS 2002
shelf.
Purpose
Cisco NCS 2000 Series Hardware Installation Guide
28
Installing the Air Flow Regulator
NTP-L42 Install the Air Plenum in NCS 2002 Shelf
