15
Using a cross-over (CAT-5) LAN cable:
a
Plug one connector into the M-MSM-1 port of the NC.
b
Plug the other connector into the M-MSM-1 port of the SSC 1.
16
Using a multi-mode fiber optic cable:
a
Plug one connector into the M-MSM-2 port of the SSC 1 that corresponds to the control card in Slot
1.
b
Plug the other connector into the M-MSM-2 port of the SSC 2 that corresponds to the control card in
Slot 1.
17
Repeat Steps 15 and 16 to connect the remaining SSCs.
18
To complete the ring, plug one connector of a multi-mode fiber optic cable into P-MSM-2 port of SSC
10. Plug the other connector into the P-MSM-3 port of the NC.
The scenario is illustrated in the figure below.

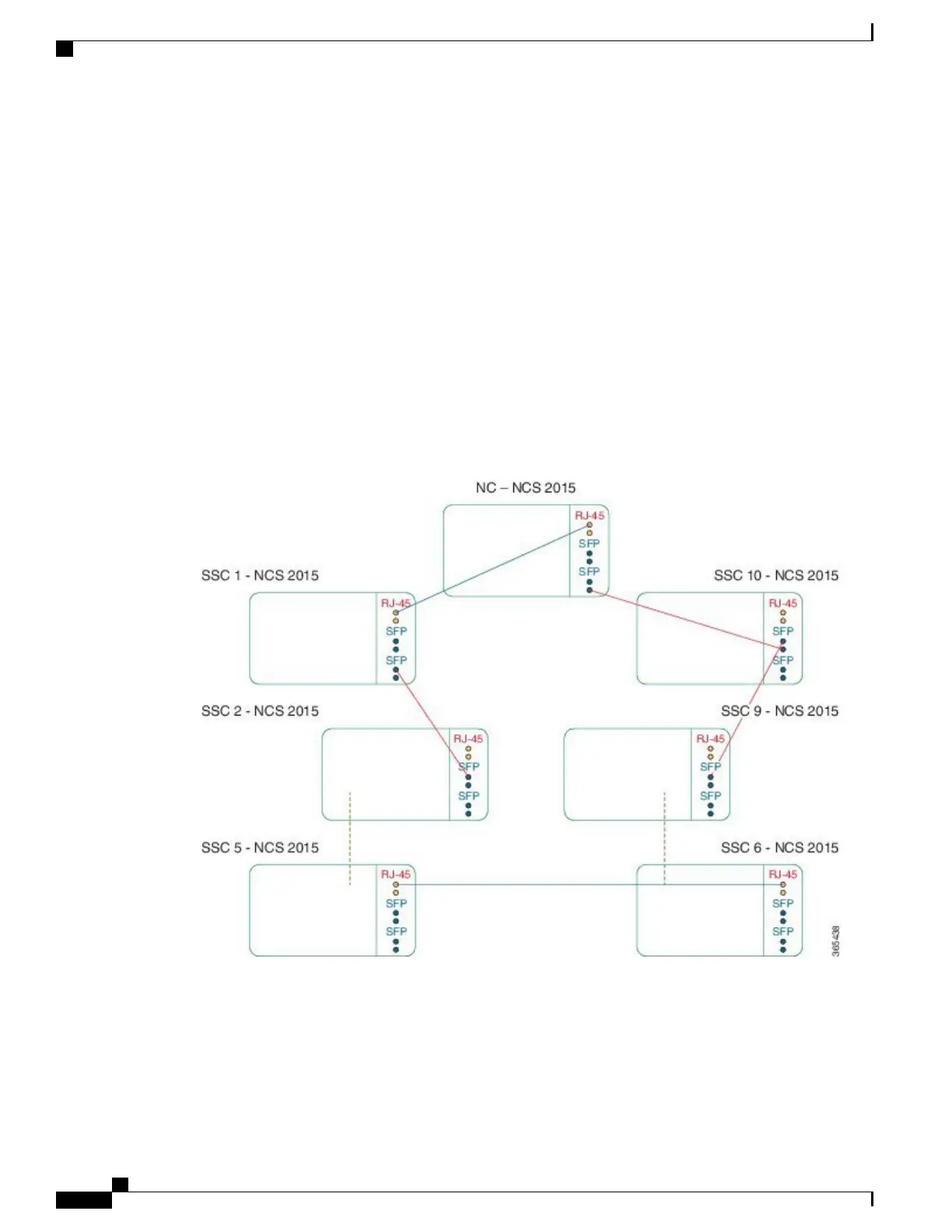

Figure 239: NCS 2015 NC and NCS 2015 SSCs in Ring Topology
Scenario 2: Using RJ-45 Ports Connect Cisco NCS 2015 Node Controller, and ONS 15454, NCS
2006, and NCS 2015 Subtending Shelves in a Ring Topology
The maximum number of NCS 2015 shelves that can be subtended is 10.
Cisco NCS 2000 Series Hardware Installation Guide
434
Multishelf Management
Ring Topology
