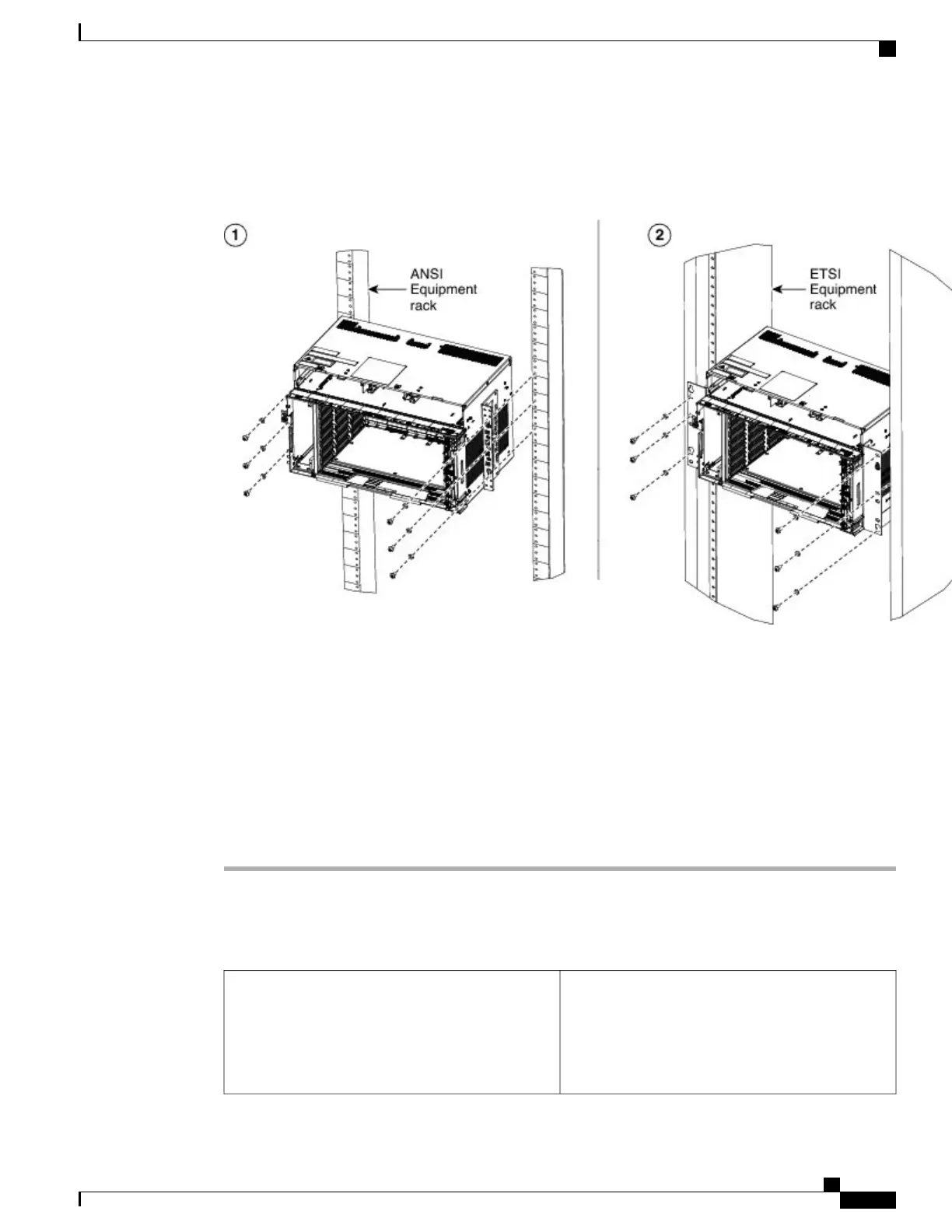

Diagram 2 of the figure below shows the NCS 2006 shelf mounted on an ETSI rack in the front position.
Figure 117: Mounting an NCS 2006 on a Rack
Step 3
Lift the shelf to the desired position in the rack. If the rack is empty, place the shelf at the bottom of the rack.
The placement of the shelf is dependent on where you want to install the new equipment in the rack.
To ensure proper cooling of the NCS 2006 shelf, make sure that the space in front of the air flow
vents are free of cables, fibers, and mechanical fixtures for fiber and cable management.
Note
Step 4
Align the screw holes on the mounting brackets with the mounting holes in the rack.
Step 5
Using the Phillips Dynamometric screwdriver, install one mounting screw in each side of the assembly.
Tighten the screw to a torque value of 22 in-lb (2.5 N-m).
Step 6
When the shelf is secured to the rack, install the remaining two mounting screws on either sides.
Use at least one set of the horizontal screw slots on the shelf to prevent slippage.Note
Step 7
Return to your originating procedure (NTP).
DLP-L10 Mounting the NCS 2006 Shelf on a Rack (Two People)
This task allows two people to mount the shelf on a
rack.
In an rack, the chassis can be installed in the
front or the middle position. In an ETSI rack,
the chassis is installed only in the front
position.
Note
Purpose
Cisco NCS 2000 Series Hardware Installation Guide
193
Mounting the Cisco NCS 2006 Shelf
DLP-L10 Mounting the NCS 2006 Shelf on a Rack (Two People)
To Next Page
