Install the 19-inch standard brackets on both sides of the chassis in the front position. See DLP-L3 Mounting
the Reversible Brackets on the NCS 2006 Shelf for ANSI Rack Configuration, on page 169.
Step 8
Check the length between the top and bottom horizontal air plenums where the chassis will be installed. The
length must be not less than 10.5 inches (267 mm). If the length is less, adjust the position of the top horizontal
plenum.
Step 9
Install the NCS 2006 empty chassis between the two horizontal plenums.

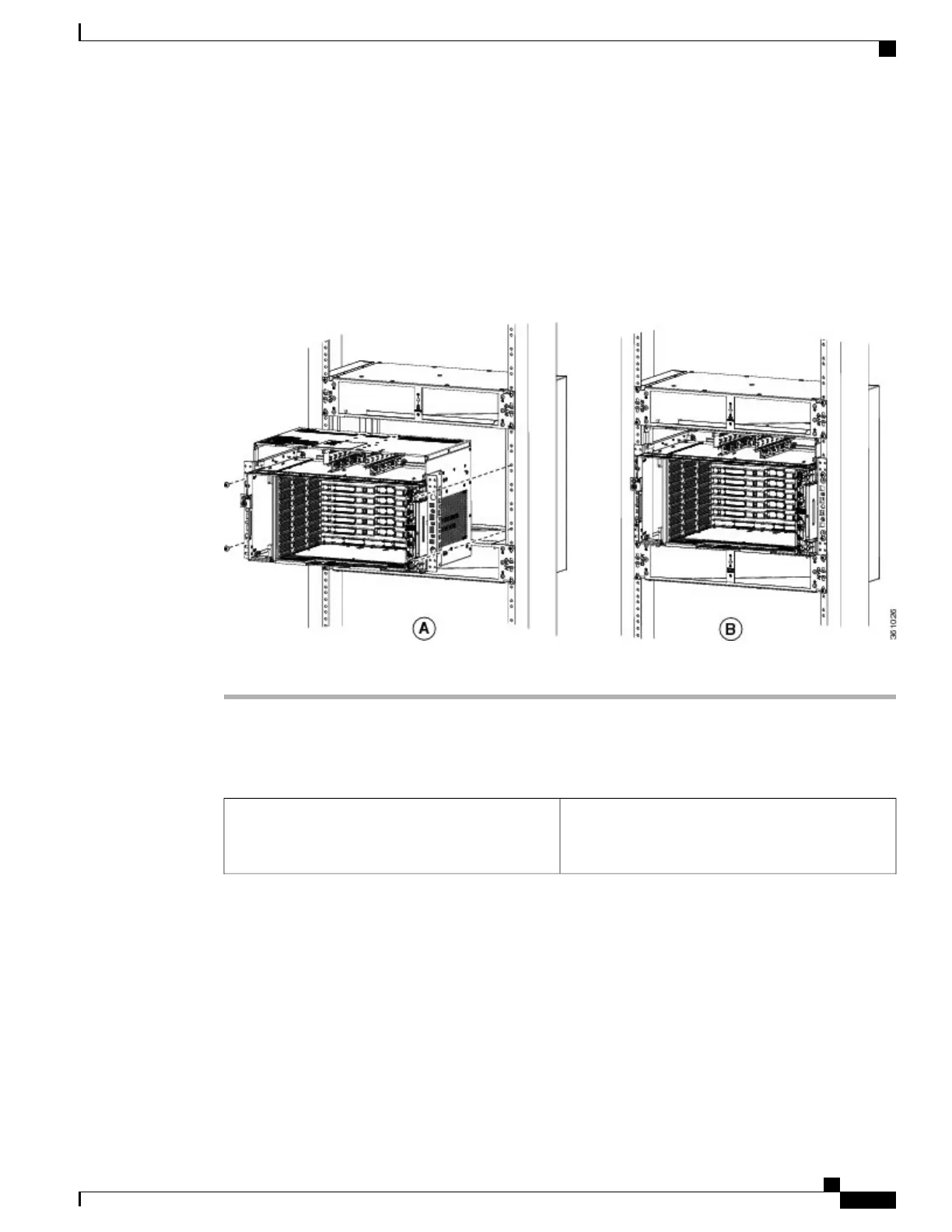

Figure 90: Installing the NCS 2006 chassis between the horizontal air plenum
Step 10
Return to your originating procedure (NTP).
DLP-L66 Installing Air Plenum in NCS 2006 Shelf for ANSI 23-inch Configuration
This task installs the air plenum for the NCS 2006
shelf in the ANSI 23-inch cabinet or rack
configuration.
Purpose
Cisco NCS 2000 Series Hardware Installation Guide
149
Installing the Air Flow Regulator
DLP-L66 Installing Air Plenum in NCS 2006 Shelf for ANSI 23-inch Configuration
