e) Plug the nine connectors on one end of the EAP cable into the two DCN ports and the seven SSC ports
of the MS-ISC-100T card in the right side of the NC shelf (Slots 12 to 17). Plug the other end of the EAP
cable into the multishelf port on the right EAP.

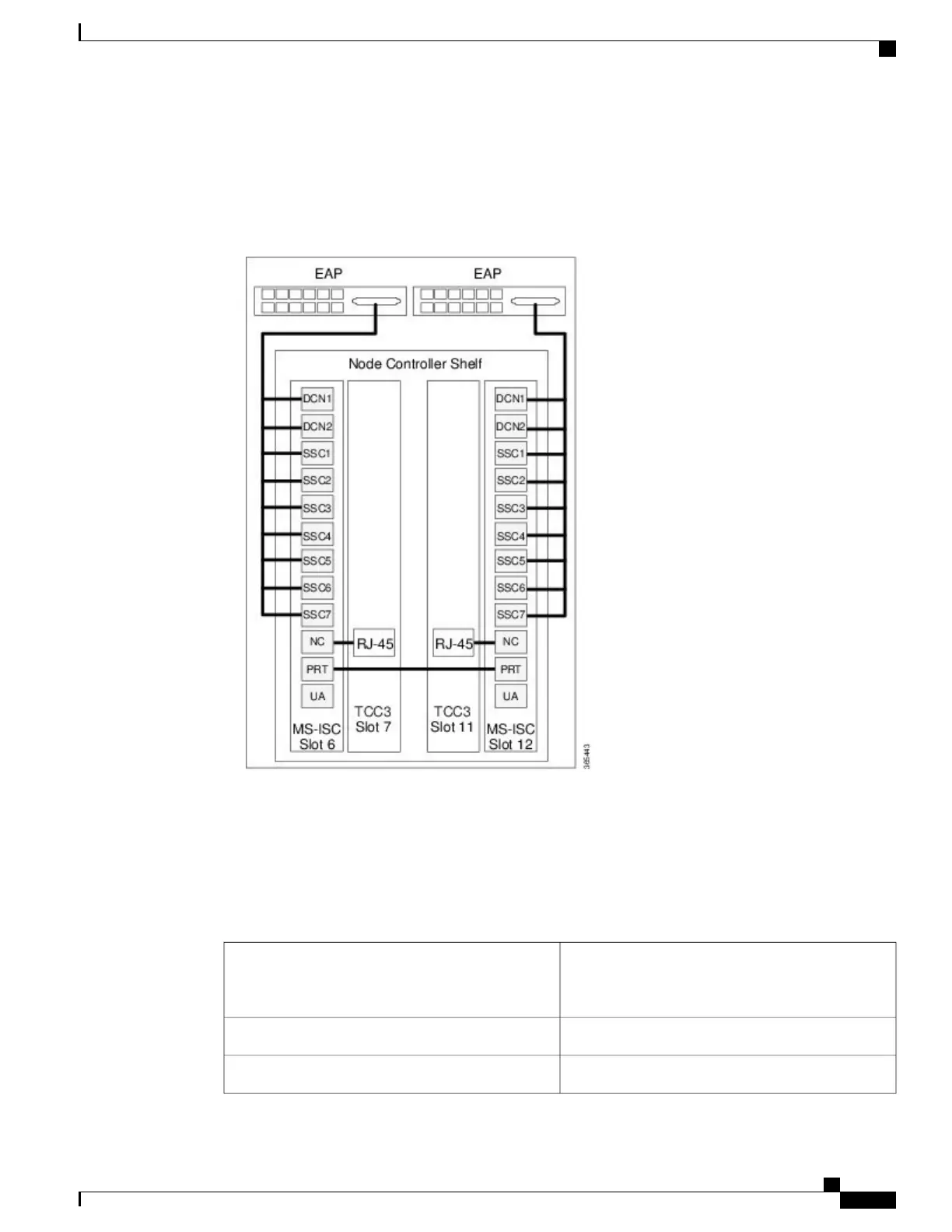

Figure 234: Connecting the EAP to the Node Controller
Stop. You have completed this procedure.
NTP-L65 Configure the MS-ISC-100T Card for a ONS 15454
Multishelf Node for Non-Default Public and Private VLAN IDs
Use this procedure to configure the MS-ISC-100T
Card for a multi-shelf node for non-default public and
private VLAN IDs.
Purpose
VoltmeterTools/Equipment
NonePrerequisite Procedures
Cisco NCS 2000 Series Hardware Installation Guide
417
Multishelf Management
NTP-L65 Configure the MS-ISC-100T Card for a ONS 15454 Multishelf Node for Non-Default Public and Private VLAN
IDs
