The scenario is illustrated in the figure below.

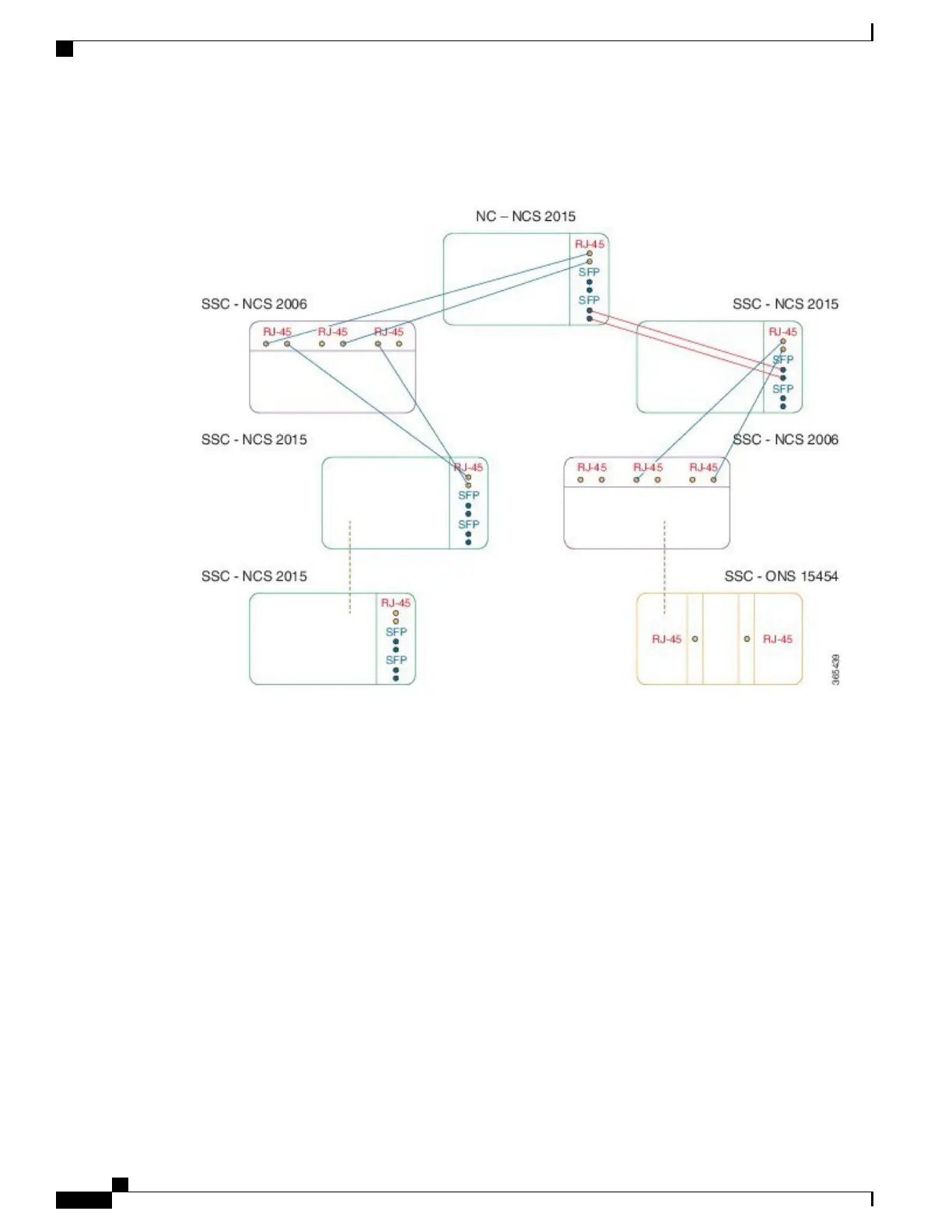

Figure 236: NCS 2015, NCS 2006, and ONS 15454 SSCs Connected to NCS 2015 NC Using RJ-45 and SFP Ports
Scenario 2: Using Cisco Catalyst Switch 3650, Up to 15 ONS 15454, NCS 2006, and NCS 2015
SSCs Can Be Connected To the NCS 2015 NC Through RJ-45 Ports
1
Using a cross-over (CAT-5) LAN cable:
a
Plug one connector into Port 1 of the active Catalyst 3560.
b
Plug the other connector into the M-MSM-1 port of the NC.
2
Using a cross-over (CAT-5) LAN cable:
a
Plug one connector into Port 1 of the standby Catalyst 3560.
b
Plug the other connector into the P-MSM-1 port of the NC.
3
Plug the other connector into the P-MSM-1 port of the NC.
a
Plug one connector into Port 23 of the active Catalyst 3560.
b
Plug the other end into Port 23 of the standby Catalyst 3560.
4
To connect all the SSCs to the Catalyst 3560 switches, use a cross-over (CAT-5) LAN cable.
Cisco NCS 2000 Series Hardware Installation Guide
426
Multishelf Management
Cisco NCS 2015 Node Controller, ONS 15454, NCS 2006, and NCS 2015 as Subtending Shelves
