Procedure
Step 1
To mount the reversible brackets:
•
For a 19-inch (482.6-mm) configuration, place the widest side of the mounting bracket flush against the
shelf (see the figure below). The narrow side of the mounting bracket should be towards the front of the
shelf.

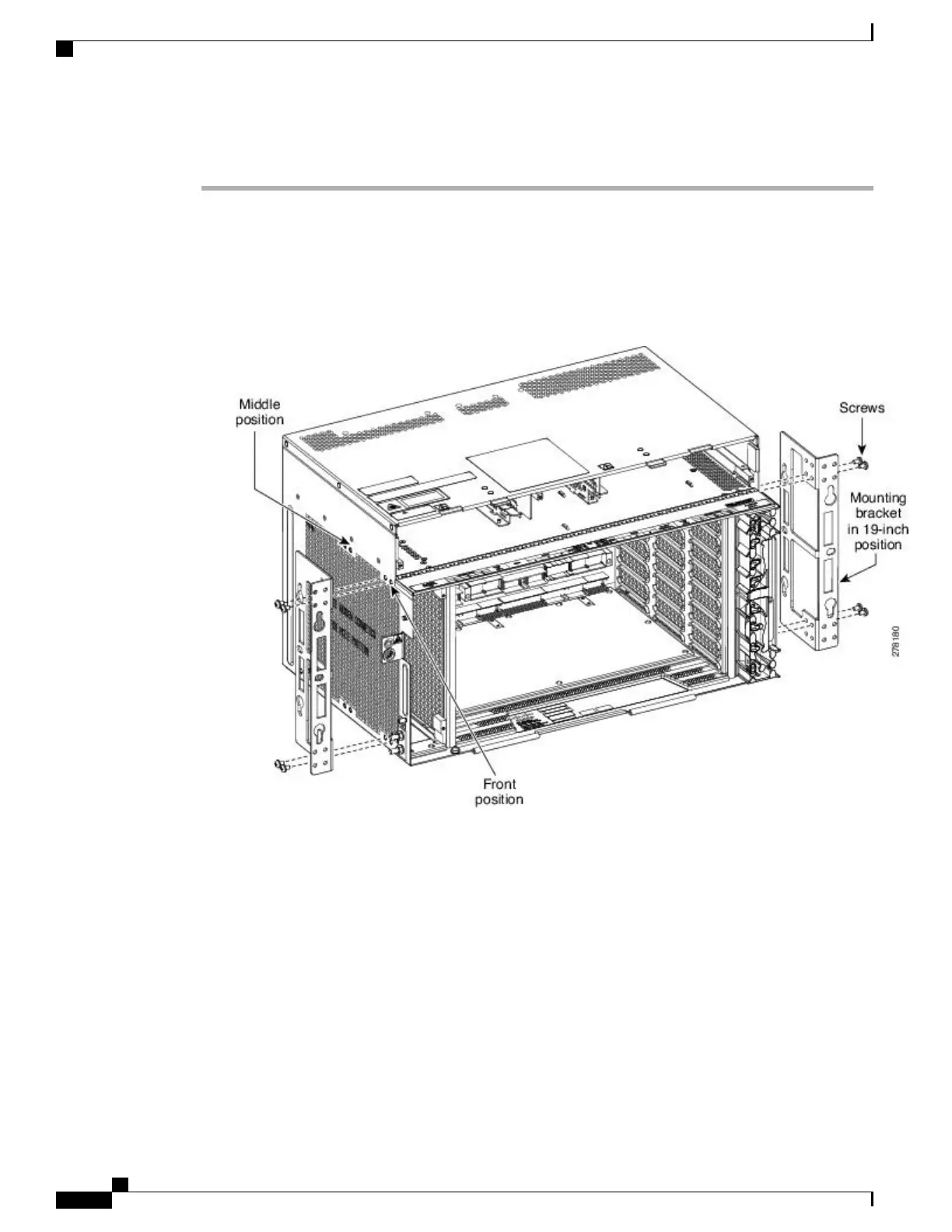

Figure 106: Mounting the Brackets on the NCS 2006 shelf for a 19-inch (482.6-mm) ANSI Configuration
Cisco NCS 2000 Series Hardware Installation Guide
170
Mounting the Brackets on NCS 2006 Shelf
DLP-L3 Mounting the Reversible Brackets on the NCS 2006 Shelf for ANSI Rack Configuration
