The following figures display the dimensions of the air plenum relative to the cabinet or rack.

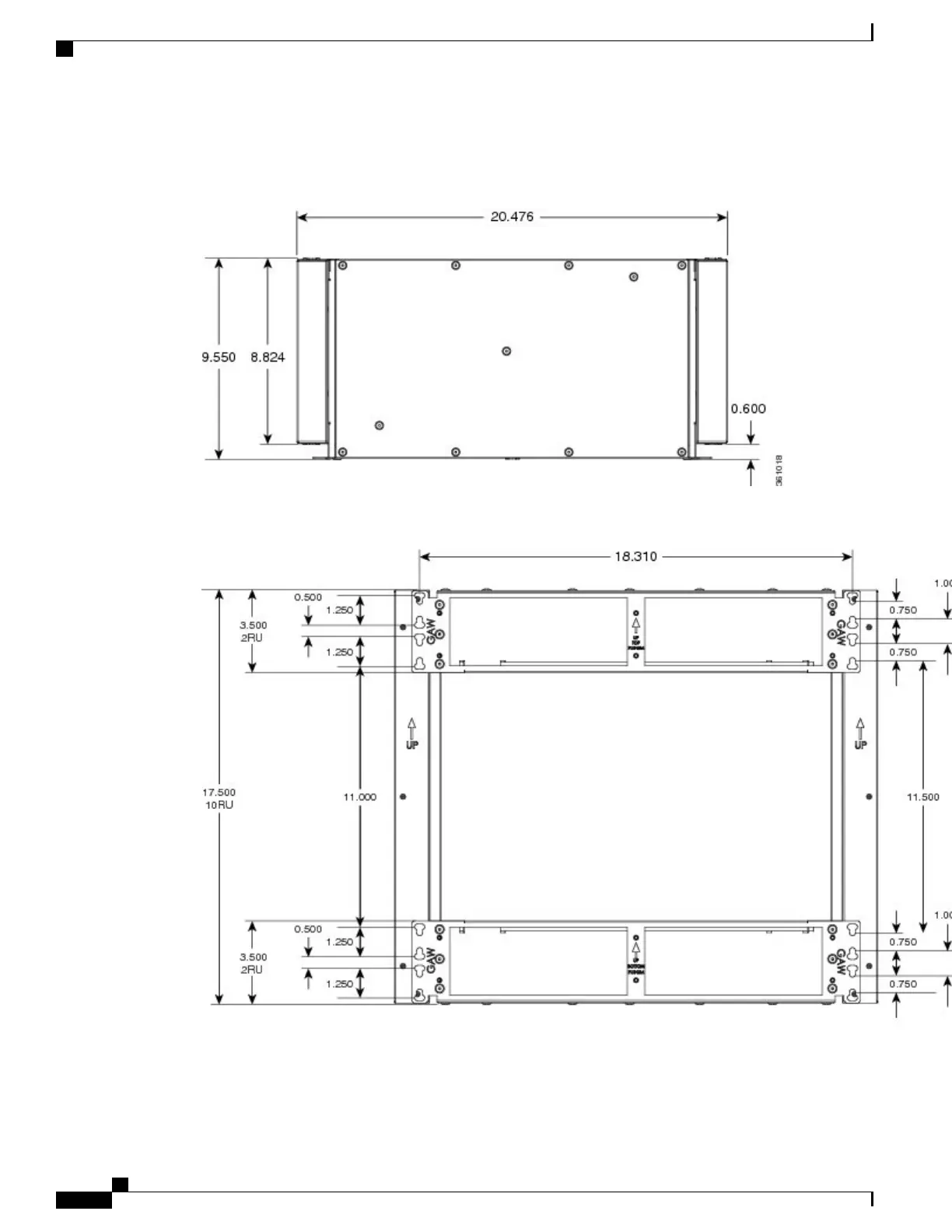

Figure 83: Dimension of Cisco NCS 2006 chassis relative to the air plenum
Figure 84: Dimension on Cisco NCS 2006 relative to the air plenum
Cisco NCS 2000 Series Hardware Installation Guide
142
Installing the Air Flow Regulator
Air Plenum
