DLP-L62 Unpacking and Verifying the Shelf , on
page 20
DLP-L63 Inspecting the Shelf, on page 22
Prerequisite Procedures
As neededRequired/As Needed
OnsiteOnsite/Remote
NoneSecurity Level
Use only the fastening hardware provided with the NCS 2006 to prevent loosening, deterioration, and
electromechanical corrosion of the hardware and joined material.
Caution
Procedure
Step 1
Place the right front air deflector flush against the right side of the chassis (see the figure below).
Step 2
Align the screw holes on the right front air deflector with the screw holes on the right side of the chassis.

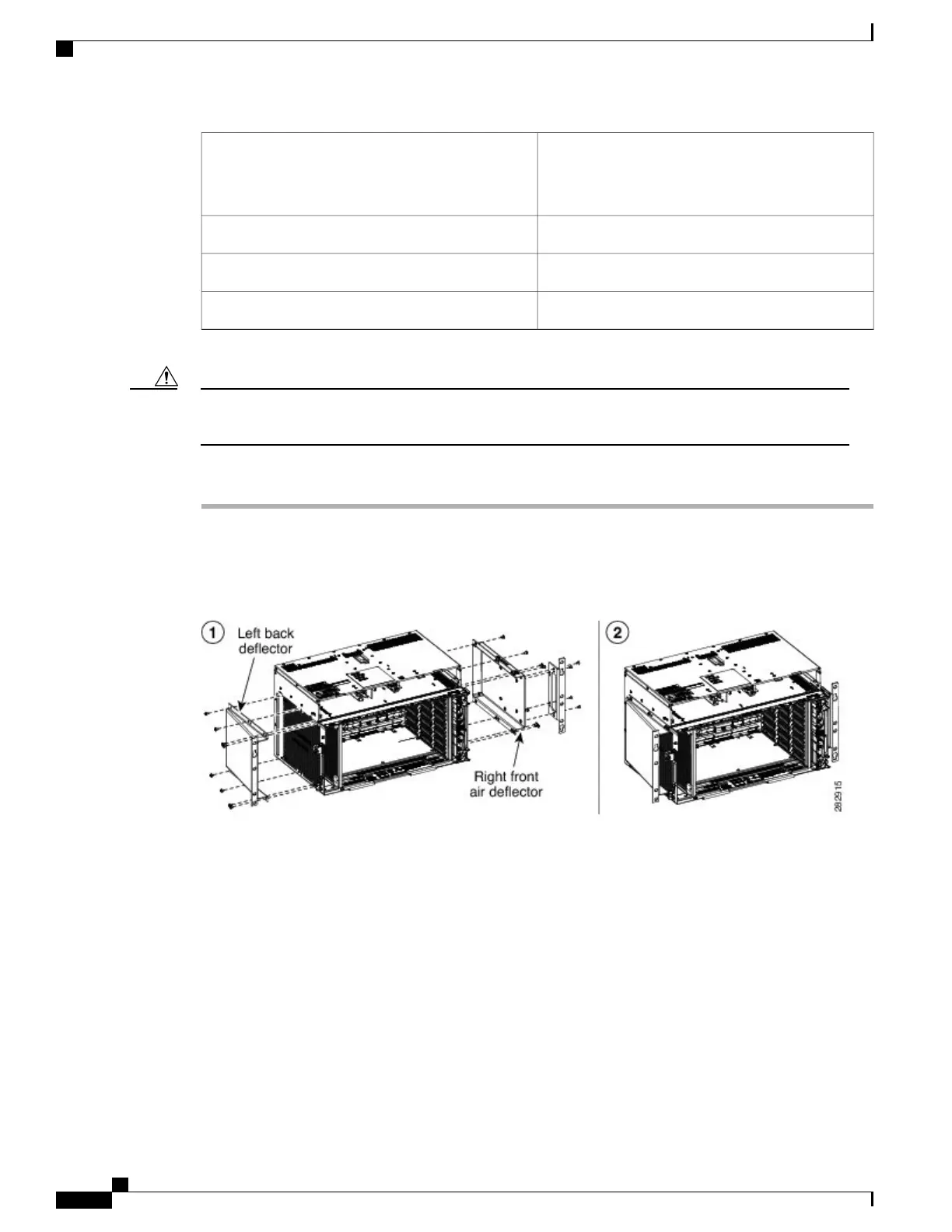

Figure 111: Mounting the Air Deflectors (Front-to-Front) on the NCS 2006 Shelf for ETSI Rack Configuration
Step 3
Insert the screws and tighten them to a torque value of 11.5 in-lb (1.3 N-m).
Step 4
Place the left front air deflector flush against the left side of the chassis.
Do not mount the left front deflector (exhaust air deflector), if these cards are to be installed in the NCS 2006
shelf:
•
100G-LC-C, 10x10G-LC, or CFP-LC
•
EDRA1-26, EDRA1-35, EDRA2-26, or EDRA2-35
•
MR-MXP
Use the standard brackets directly to mount the NCS 2006 shelf.
Cisco NCS 2000 Series Hardware Installation Guide
178
Mounting the Brackets on NCS 2006 Shelf
DLP-L6 Mounting the Air Deflectors (Front-to-Front) on the NCS 2006 Shelf for ETSI Rack Configuration
