Step 5
Align the screw holes of the left back air deflector with the screw holes on the left side of the chassis.
Step 6
Insert the screws and tighten them to a torque value of 11.5 in-lb (1.3 N-m).
Step 7
Place the mounting bracket flush in the middle position (see Diagram 1 of the figure below) or the front
position (see Diagram 3 of the figure below) against the right side of the chassis.
Step 8
Align the screw holes on the mounting bracket with the screw holes on the left side of the chassis.
Step 9
Insert the screws and tighten them to a torque value of 11.5 in-lb (1.3 N-m).
Step 10
Place the mounting bracket flush in the middle position (see Diagram 1 of the figure below) or the front
position (see Diagram 3 of the figure below) against the left side of the chassis.
Step 11
Align the screw holes on the mounting bracket with the screw holes on the left side of the chassis.
Step 12
Insert the screws and tighten them to a torque value of 11.5 in-lb (1.3 N-m).

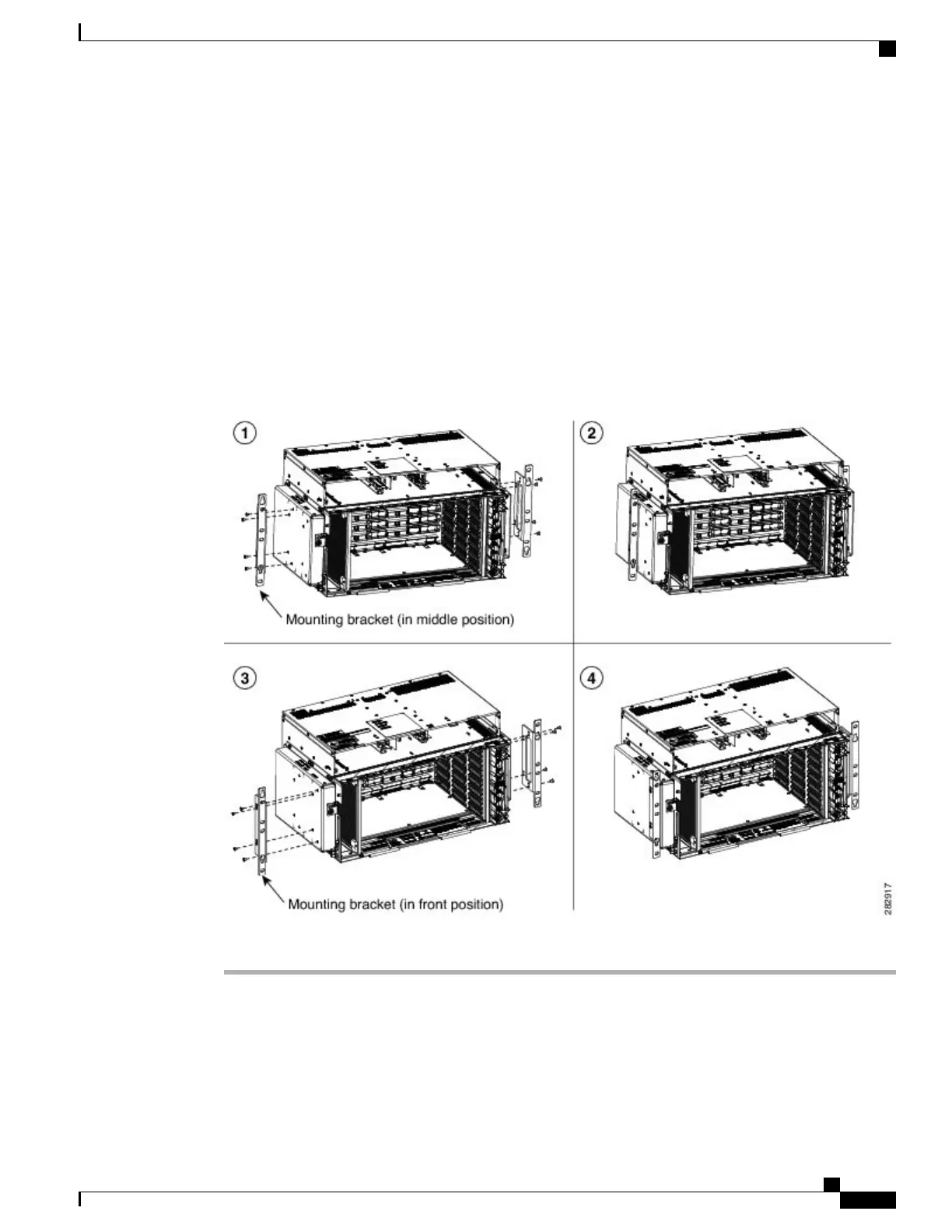

Figure 113: Mounting the Bracket with Air Deflectors (Front-to-Back) on the NCS 2006 Shelf for ETSI Rack Configuration
Step 13
Return to your originating procedure (NTP).
