Use the standard brackets directly to mount the NCS 2006 shelf.
Step 8
Align the screw holes with the screw holes of the mounting bracket and the chassis (see Diagram 4 of the
figure below).
Step 9
Insert the screws and tighten them to a torque value of 11.5 in-lb (1.3 N-m). See Diagram 4 of the figure
below.

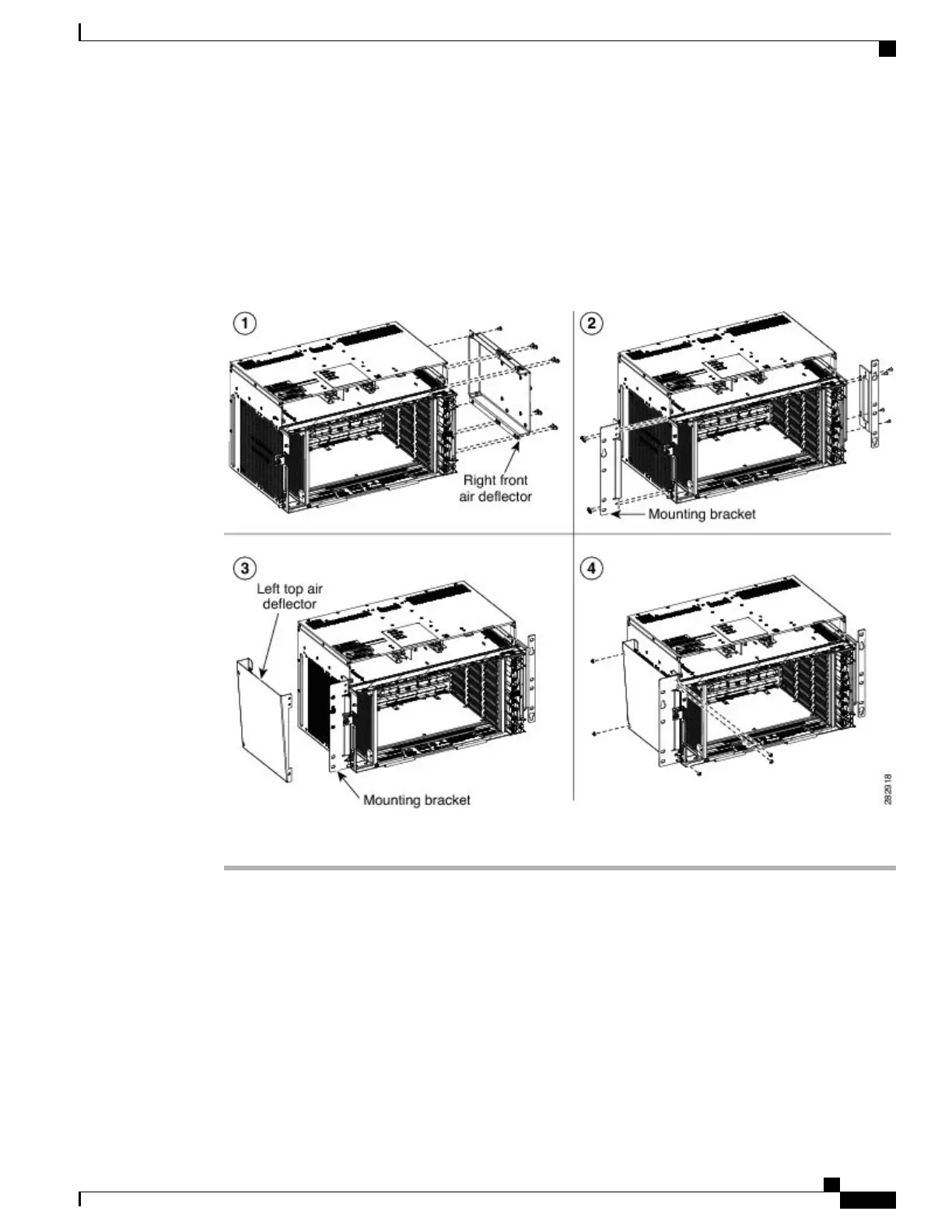

Figure 114: Mounting the Bracket with Air Deflectors (Front-to-Top) on the NCS 2006 Shelf for ETSI Rack Configuration
Step 10
Return to your originating procedure (NTP).
Cisco NCS 2000 Series Hardware Installation Guide
183
Mounting the Brackets on NCS 2006 Shelf
DLP-L8 Mounting the Bracket with Air Deflectors (Front-to-Top) on the NCS 2006 Shelf for ETSI Rack Configuration
