The following figure shows the mounting of Z-brackets for a 23-inch (584.2-mm) configuration.

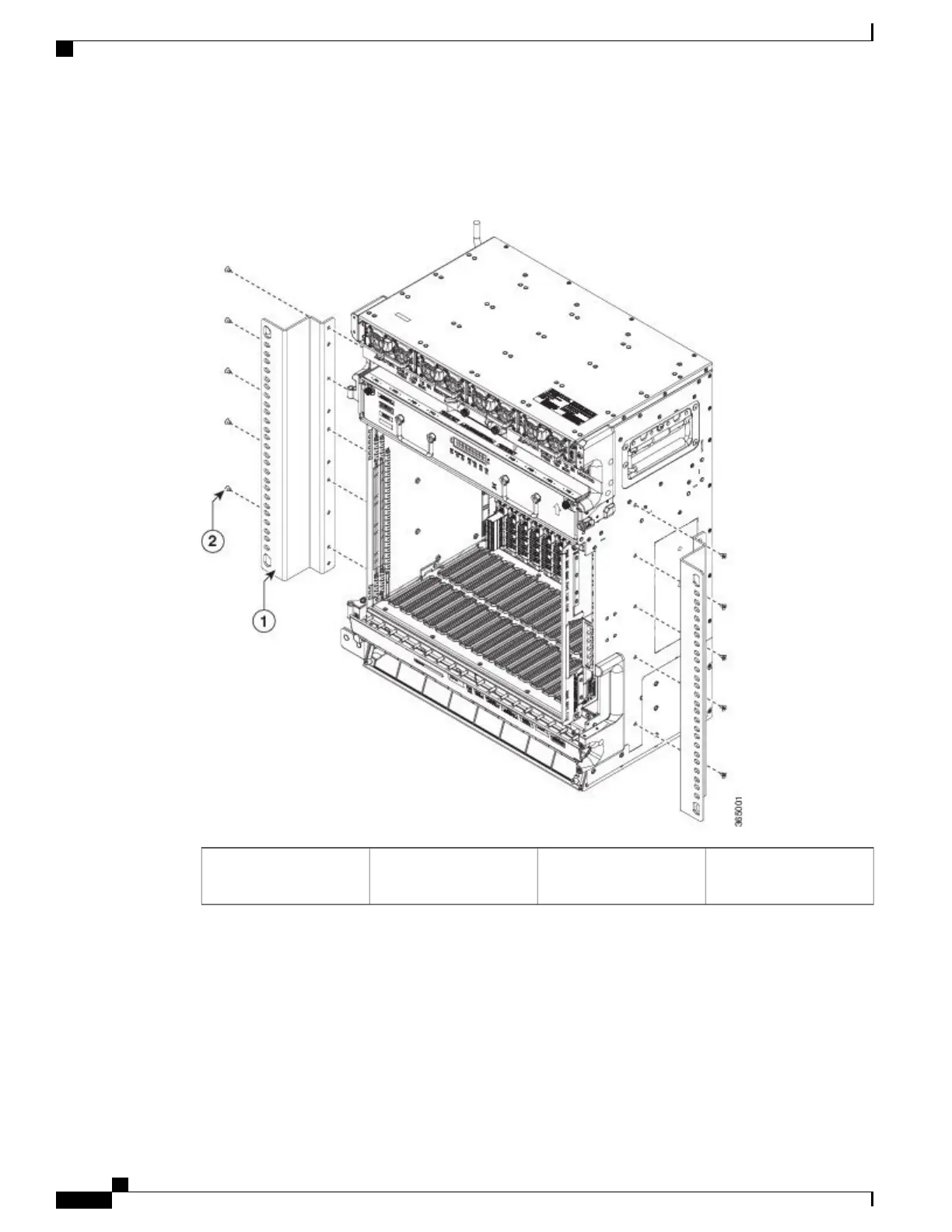

Figure 179: Mounting the Z-Brackets on the NCS 2015 DC Shelf for a 23-inch (584.2-mm) ANSI Configuration
Screw2Z-bracket in 23-inch
position
1
Cisco NCS 2000 Series Hardware Installation Guide
306
Mounting the Brackets on the NCS 2015 Shelf
NTP-L48 Mounting Brackets on NCS 2015 Shelf for ANSI Rack Configuration
