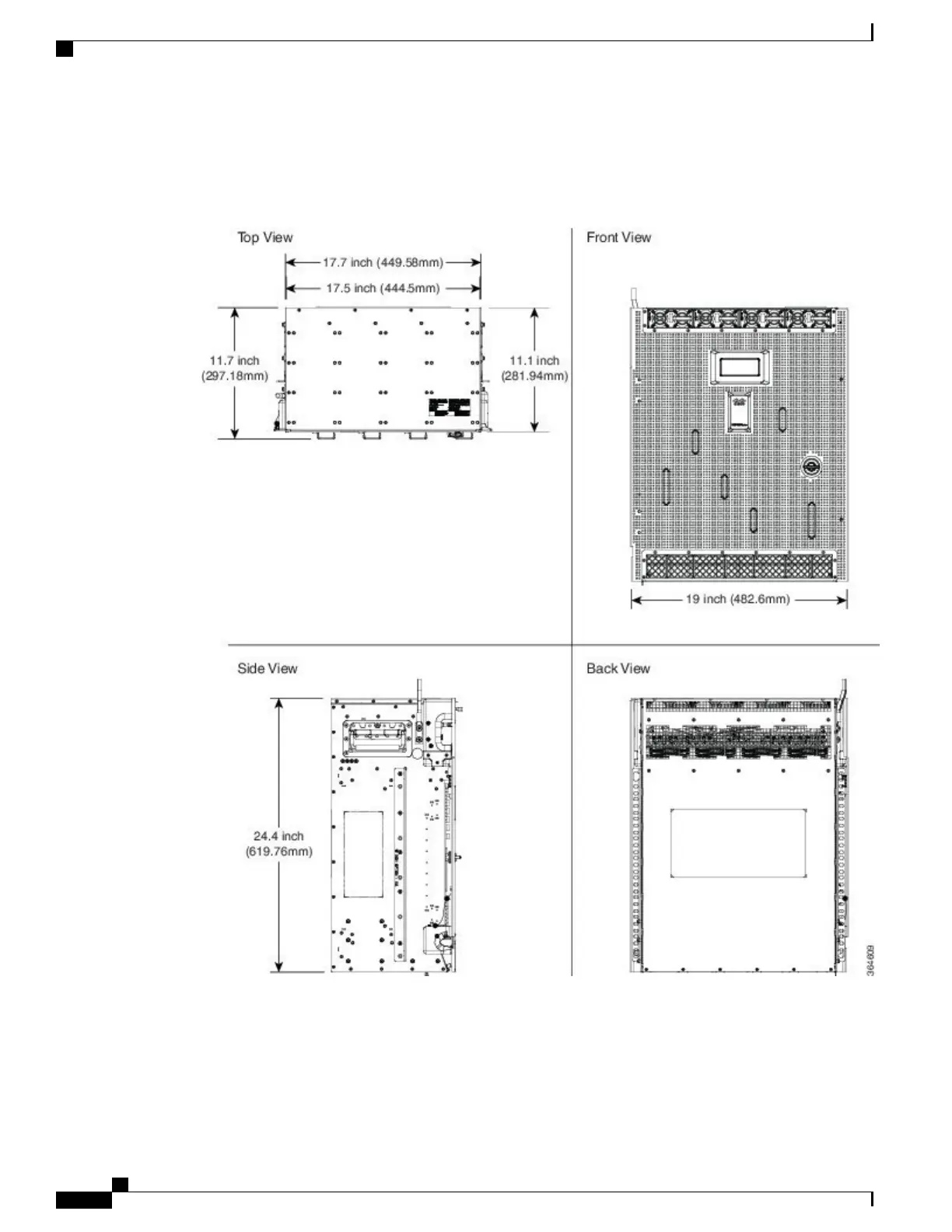

The following figure shows the dimensions of the NCS 2015 DC shelf on a 19-inch (482.6 mm) ANSI rack
configuration with brackets mounted in the middle position.
Figure 182: Cisco NCS 2015 DC Shelf Dimensions for a 19-inch ANSI Rack Configuration
Cisco NCS 2000 Series Hardware Installation Guide
312
Mounting the Cisco NCS 2015 Shelf
ANSI Rack Installation
