Procedure
Step 1
Insert the NCS 2015 ECU module in slot 18 of the chassis (see the figure below).
Step 2
Push the NCS 2015 ECU module such that the backplane connector is completely engaged and the faceplate
of the NCS 2015 ECU module aligns with the edge of the chassis side wall.
Step 3
Tighten the captive screw to a torque value of 4 in-lb (0.45 N-m).

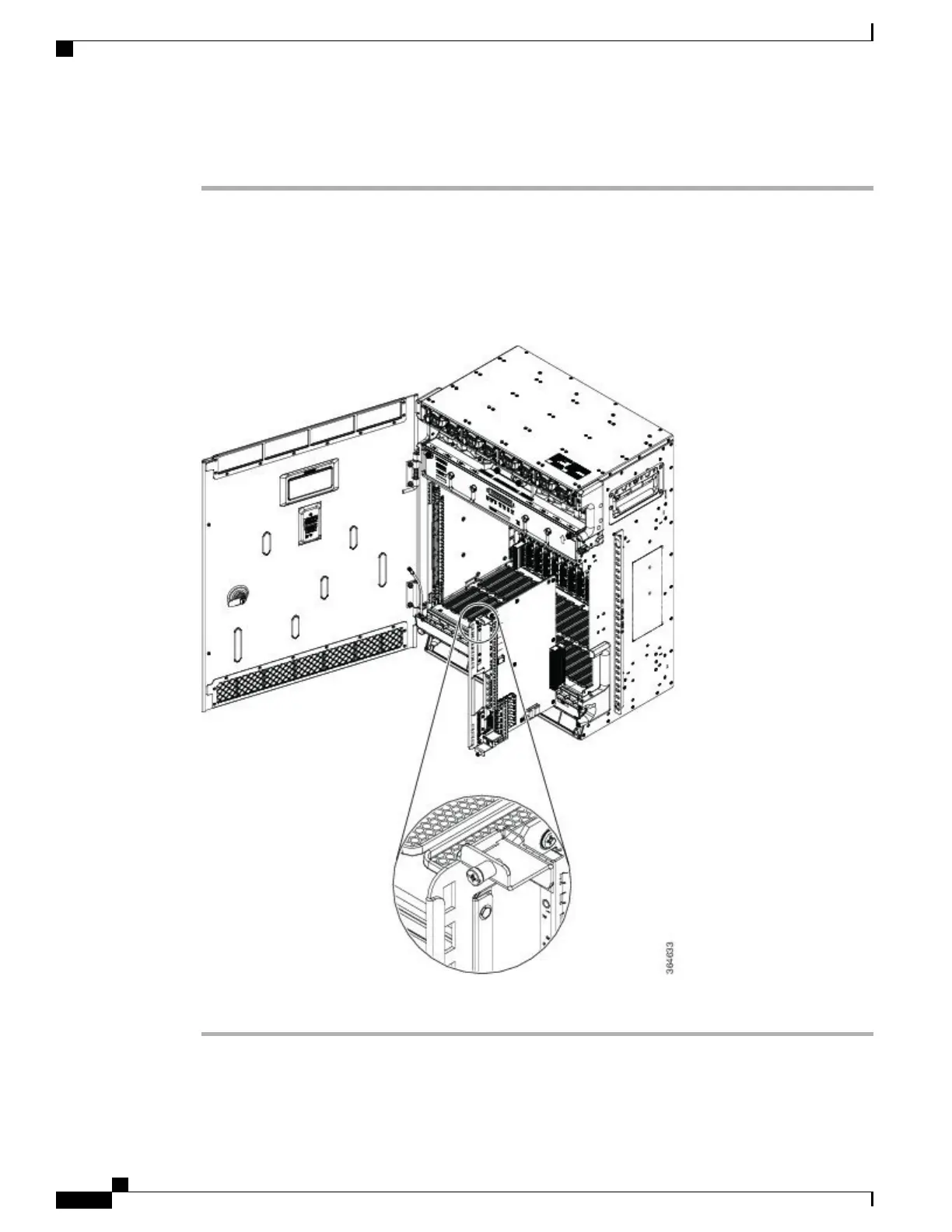

Figure 222: Installing the NCS 2015 ECU Module
Stop. You have completed this procedure.
