e
M-MSM-1 port of the NCS 2015 SSC that corresponds to the control card in Slot 1.
5
Using another cross-over (CAT-5) LAN cable:
a
Plug one connector into the SSC1 port on the right EAP.
b
Plug the other end of the connector into one of the following:
c
MSM port of the NCS 2006 SSC that corresponds to the control card in Slot 8.
d
RJ-45 port of the control card in Slot 11 of ONS 15454 SSC.
e
P-MSM-1 port of the NCS 2015 SSC that corresponds to the control card in Slot 17.
6
Connect two NCS 2015 SSCs by:
a
Using a multi-mode fiber optic cable, plug one connector into the M-MSM-2 port of NCS 2015 SSC
x that corresponds to the control card in Slot 1.
b
Plug the other connector into the M-MSM-2 port of another NCS 2015 SSC y that corresponds to the
control card in Slot 1.
c
Using another multi-mode fiber optic cable, plug one connector into the P-MSM-2 port of NCS 2015
SSC x that corresponds to the control card in Slot 17.
d
Plug the other connector into the P-MSM-2 port of NCS 2015 SSC y that corresponds to the control
card in Slot 17.
7
Repeat Steps 4 through 6 to connect the remaining SSCs.
The scenario is illustrated in the figure below.

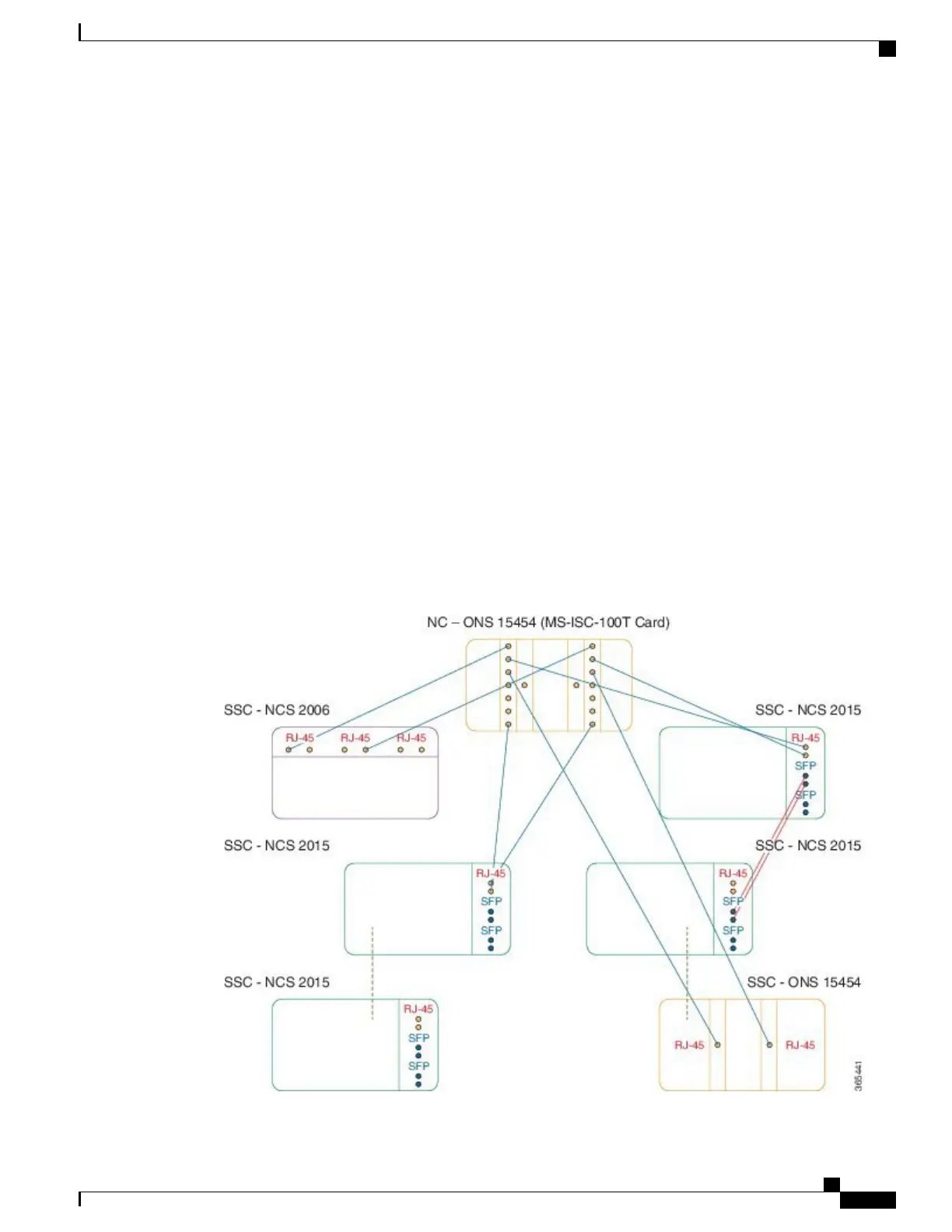

Figure 238: NCS 2015, NCS 2006, and ONS 15454 SSCs Connected to ONS 15454 NC Using RJ-45 and SFP Ports
Cisco NCS 2000 Series Hardware Installation Guide
431
Multishelf Management
Cisco ONS 15454 Node Controller, and ONS 15454, NCS 2006, and NCS 2015 Subtending Shelves
