The air filter must be inserted with the grid facing the shelf assembly as shown in the figure below.Note

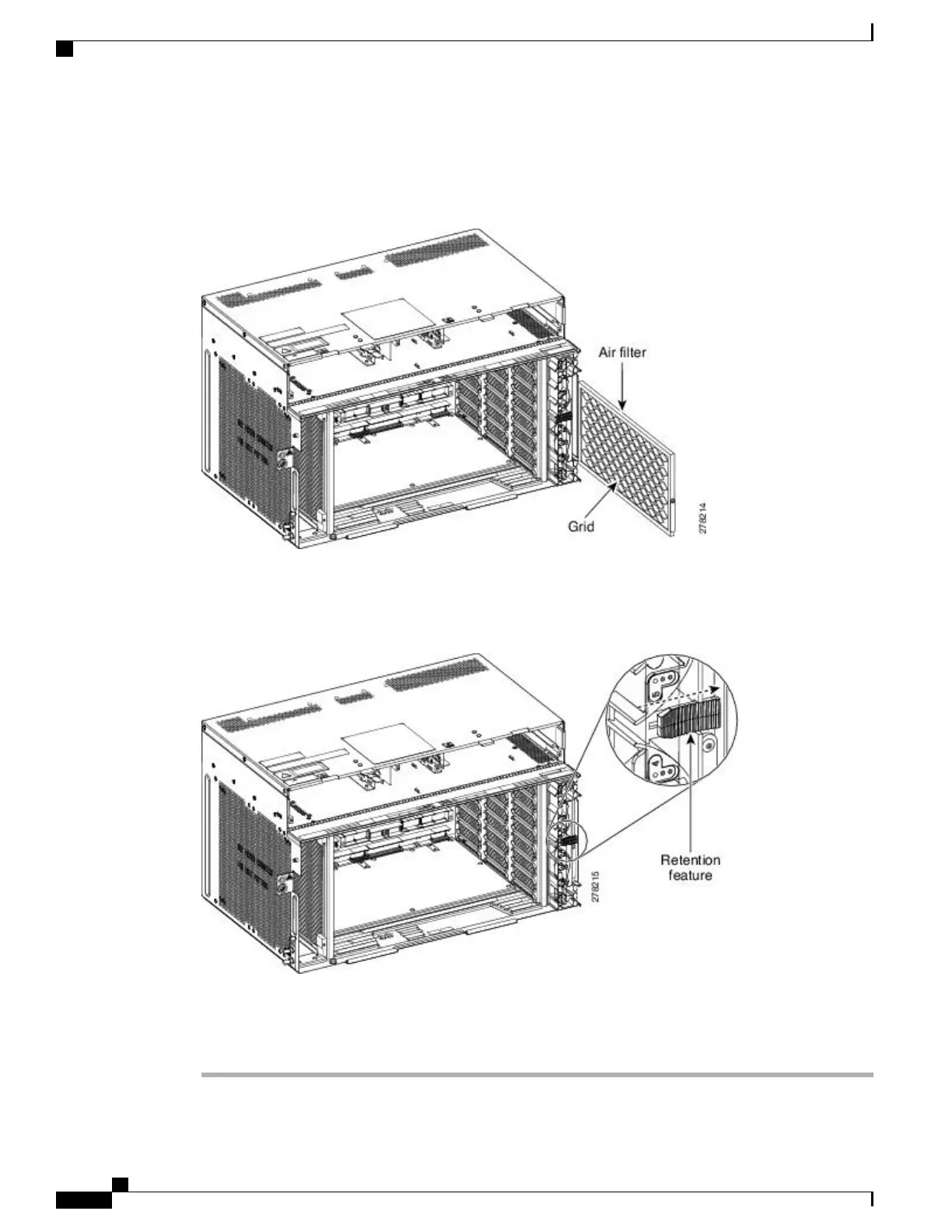

Figure 244: Extracting the Air Filter
Step 7
Push the retention feature to the right side (see the figure below).
Figure 245: Replacing the Air Filter
Step 8
Close the front door. If you removed the door, complete the NTP-L4 Installing the Standard Door of the NCS
2006 Shelf , on page 247.
Stop. You have completed this procedure.
Cisco NCS 2000 Series Hardware Installation Guide
446
Maintaining the NCS 2002, NCS 2006, and NCS 2015 Shelves
NTP-L20 Replacing the Air Filter of the NCS 2006 Shelf Assembly
