Procedure
Step 1

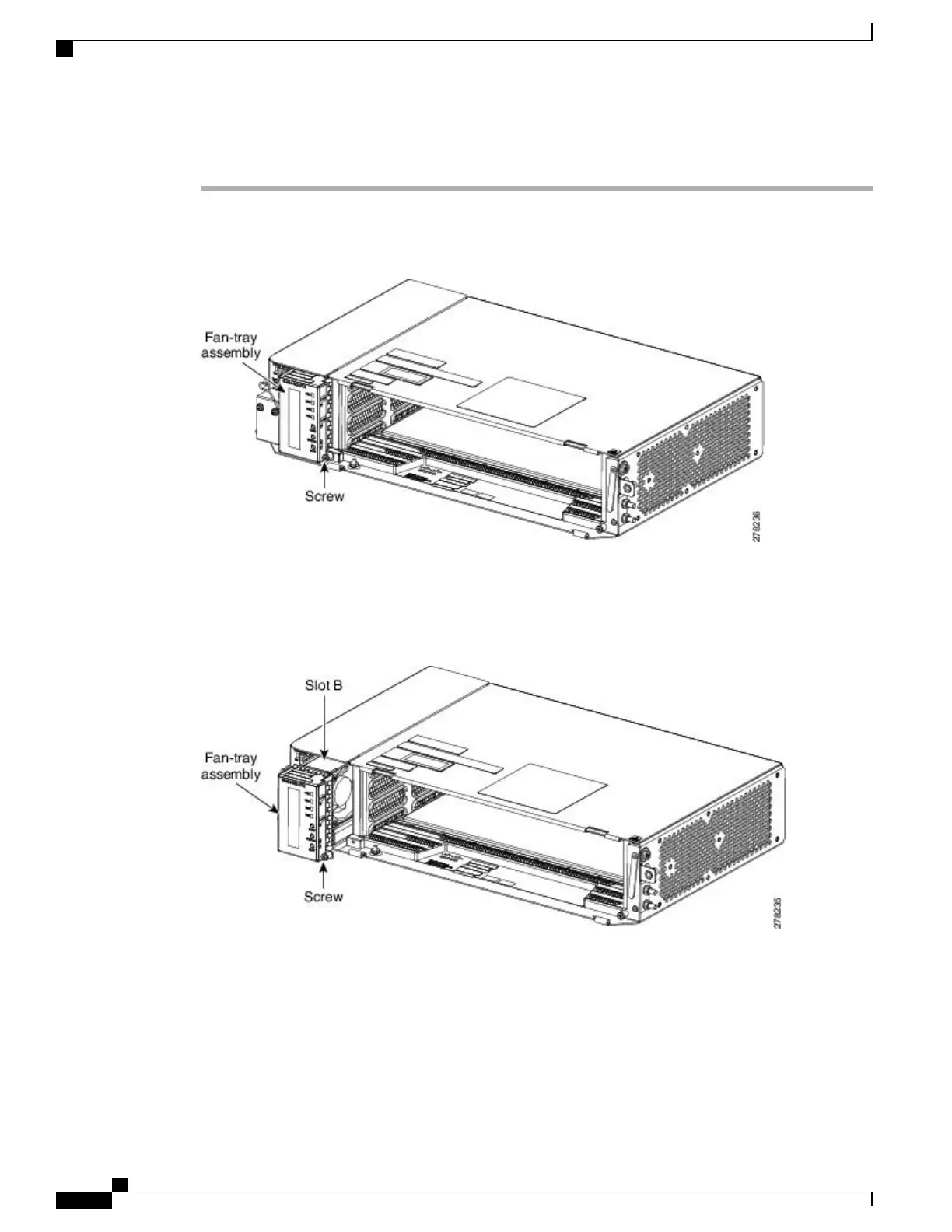

Loosen the screw on the fan-tray assembly (see the figure below).
Figure 249: Fan-Tray Assembly installed in the NCS 2002 Shelf Assembly
Step 2
Extract the fan-tray assembly partially to disconnect the backplane connector and wait until the fan stops (see
the figure below)
Figure 250: Fan -Tray Extracted Partially with Power Connector Disconnected
