Procedure
Step 1
Install the ETSI adapter plates on the horizontal air plenum.
Step 2
Align the screws to fix the adapter plates to the horizontal air plenum. Insert the screws and tighten them to
a torque value of 11.5 in-lb (1.3 N-m) as shown in the following figure.

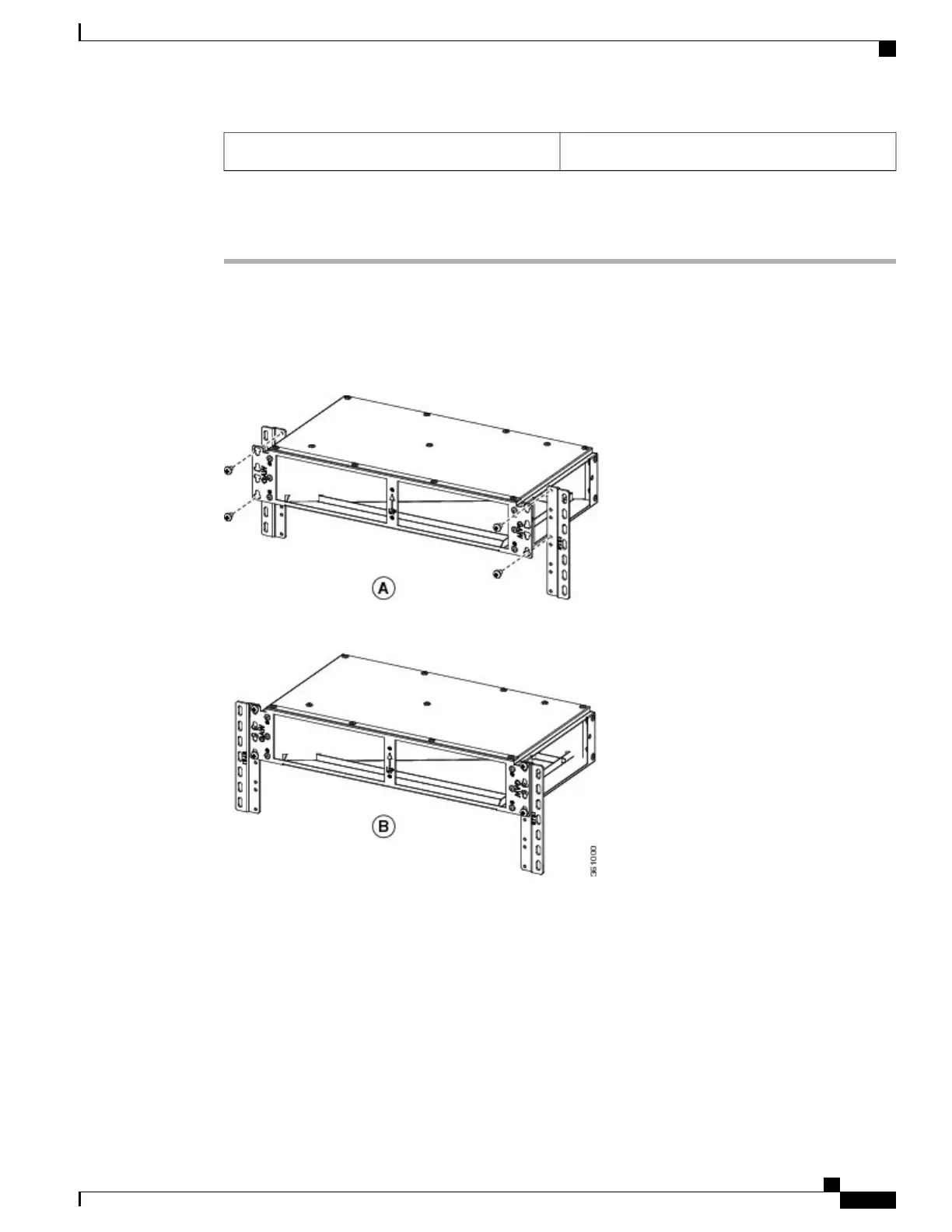

Figure 25: Installing the adapter plates on the horizontal air plenum
Cisco NCS 2000 Series Hardware Installation Guide
41
Installing the Air Flow Regulator
DLP-L70 Installing Air Plenum for NCS 2002 Shelf in ETSI Configuration
