Step 6
Install the vertical air plenum to the right of the horizontal air plenum. Follow steps 5a to 5c.

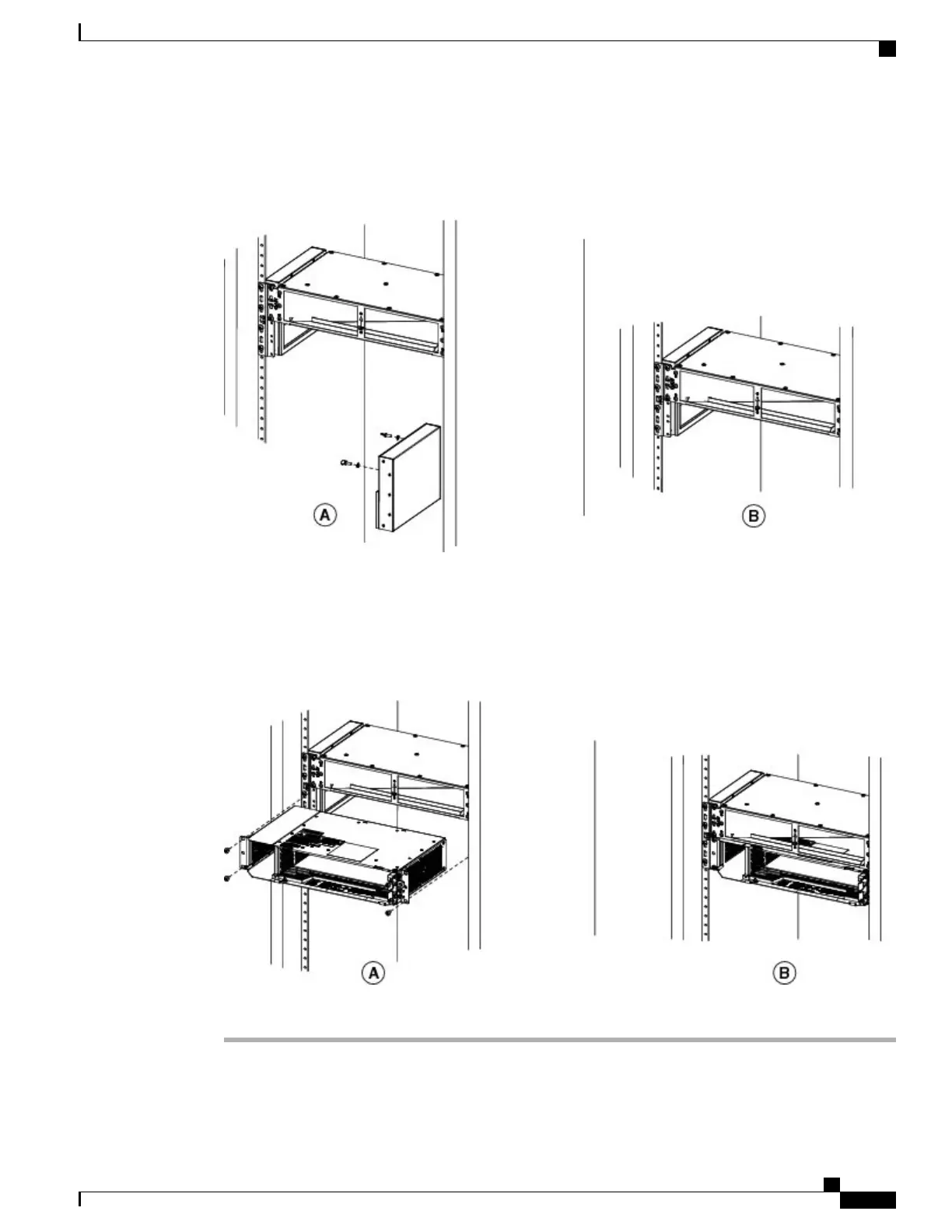

Figure 28: Installing the right vertical air plenum
Step 7
Install the ANSI 19-inch standard brackets on both sides of the chassis in front position. See DLP-L35 Mounting
the 19-inch Brackets on the NCS 2002 Shelf for ANSI Rack Configuration, on page 46.
Step 8
Install the NCS 2002 empty chassis below the horizontal plenum.
Figure 29: Installing the NCS 2002 chassis below the horizontal air plenum
Step 9
Return to your originating procedure (NTP).
