Step 13
Align the screw holes with the screw holes of the mounting bracket and the chassis.
Step 14
Insert the screws and tighten them to a torque value of 11.5 in-lb (1.3 N-m). See Diagram 4 of the following
figure.

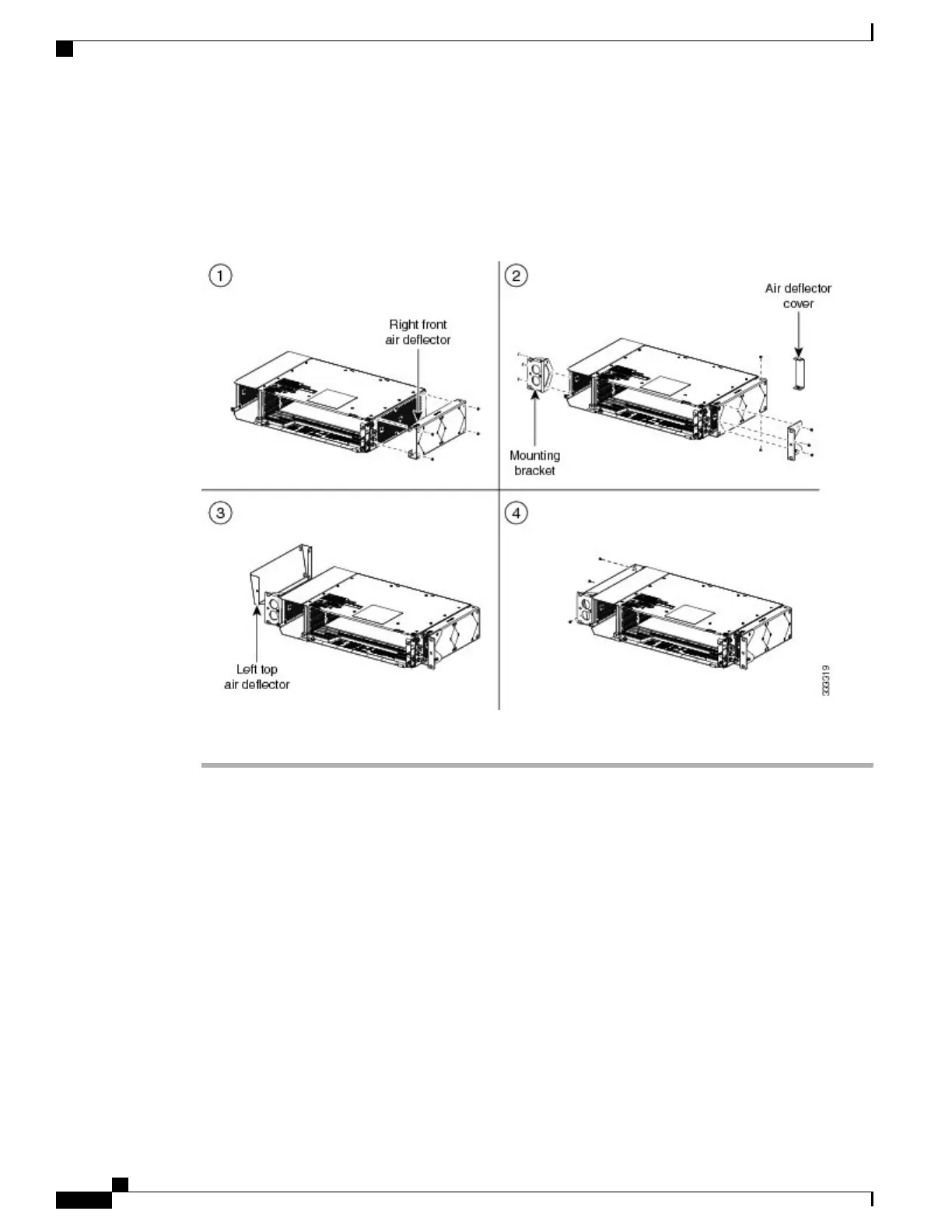

Figure 37: Mounting the Bracket with Air Deflectors (Front-to-Top) on the NCS 2002 Shelf for ETSI Rack Configuration
Step 15
Return to your originating procedure (NTP).
Cisco NCS 2000 Series Hardware Installation Guide
60
Mounting the Cisco NCS 2002 Brackets
DLP-L41 Mounting the Bracket with Air Deflectors (Front-to-Top) on the NCS 2002 Shelf for ETSI Rack Configuration
