Keysight M8000 Series of BER Test Solutions User Guide 101
Quick Tour with M8070A User Interface 3

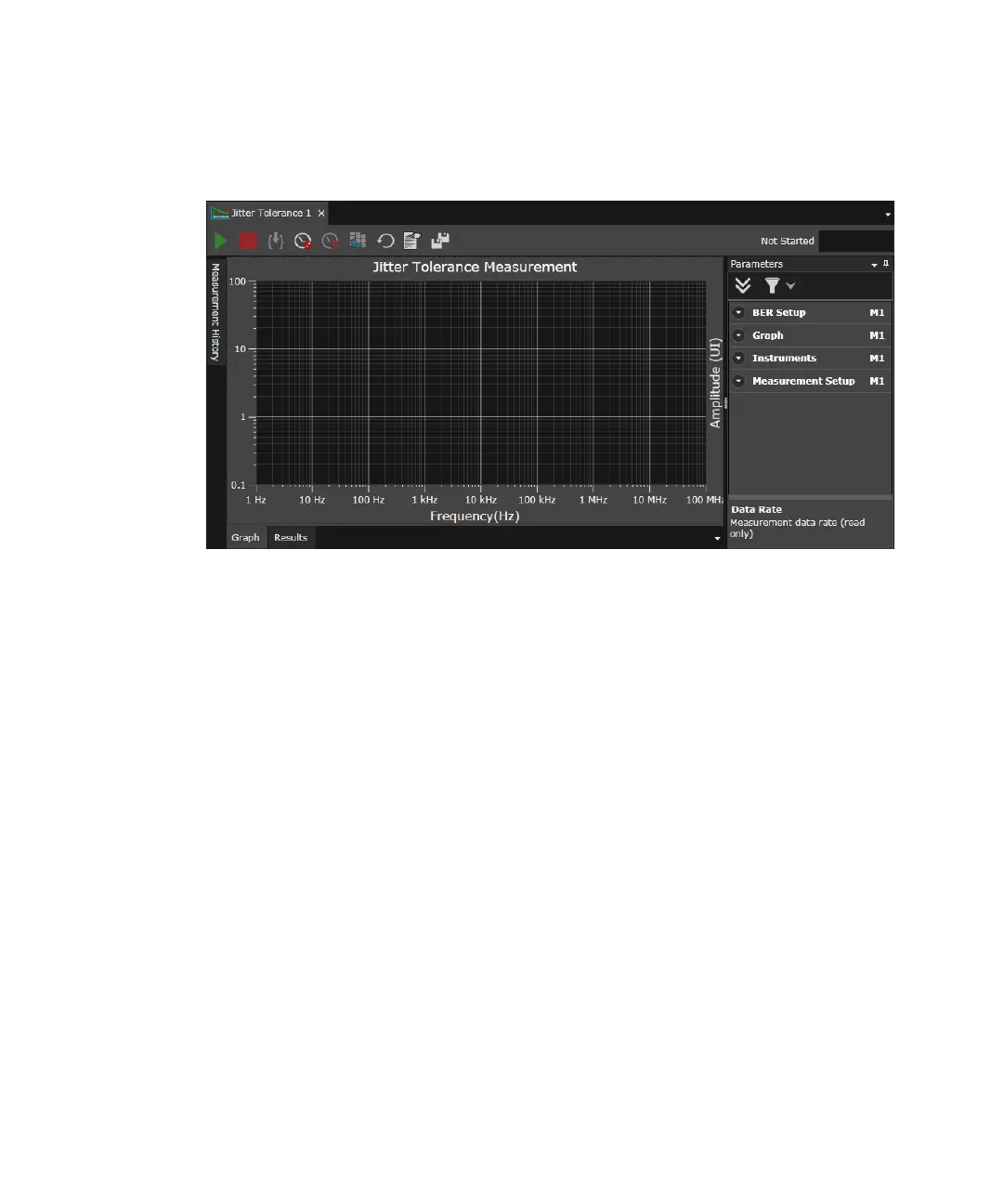

Jitter Tolerance measurement is used to determine the ability of a
device or system to maintain communication quality in the presence of
jitter. It comes in two varieties:
• Jitter Tolerance Characterization determines the jitter levels where
the device under test can no longer maintain a desired bit error ratio
(BER).
• Jitter Tolerance Compliance verifies that the device under test is
able to maintain a BER level at pre-defined jitter levels and jitter
frequencies, as defined by a standard.
For details, refer to Jitter Tolerance Measurement on page 508.
• Eye Diagram Measurement - Opens the Eye Diagram measurement
user interface as shown in the following figure:
