104 Keysight M8000 Series of BER Test Solutions User Guide
3 Quick Tour with M8070A User Interface
• The SCPI Editor lists all SCPIs that can be used to program
M8020A/M8030A/M8040A and also provides a platform to execute
them. For details, refer to SCPI Editor on page 588.

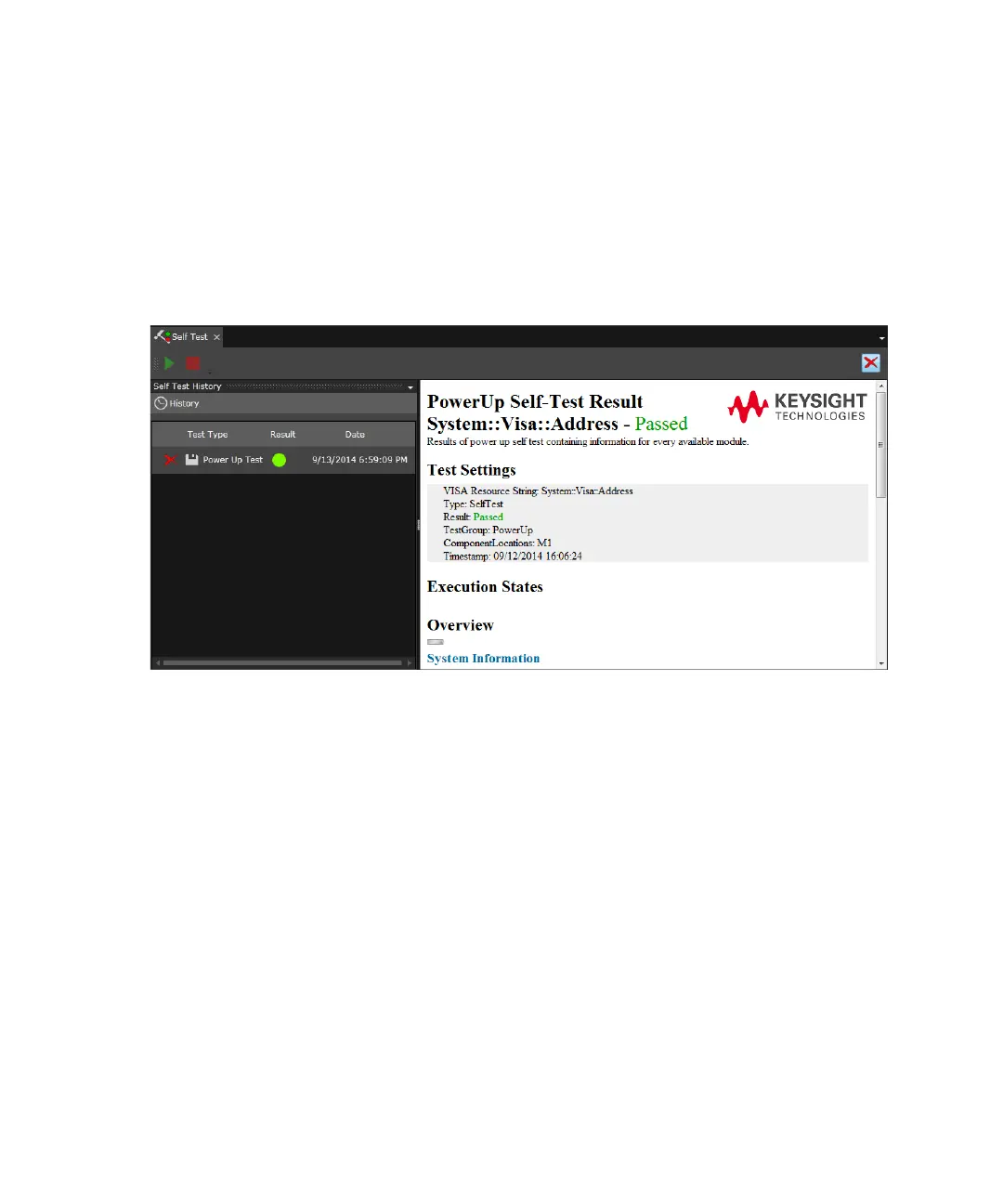

• Self Test - Opens the Self Test utility user interface as shown in the
following figure:
The Self Test utility checks the specific system information of the
hardware components for basic functionality. On execution, the
following results are displayed:
• System related information such as connected modules, serial no.
and hardware revision.
• Module related information such as calibration, power supplies and
memory controller.
For details, refer to Self Test Utility on page 596.
• Licenses... - Opens the Licenses window user interface as shown in the
following figure:
