112 Keysight M8000 Series of BER Test Solutions User Guide
3 Quick Tour with M8070A User Interface
• Analyzer port information such as:
• Data information that shows the name/type of the pattern
downloaded to that data block and its indicator shows which data
block is currently transmitted the sequence.
• State information of analyzer such as BRM (indicated by green LED).
• Error indicators of analyzer such as CDR Unlock, Data Loss, Symbol
Loss and Sync Loss (indicated by red LED).
• Error indicator for the current GUI state. When the current GUI is
stopped, the respective indicator turns red.
• Calculated BER
• Alignment BER Threshold button to start BER threshold
auto alignment.

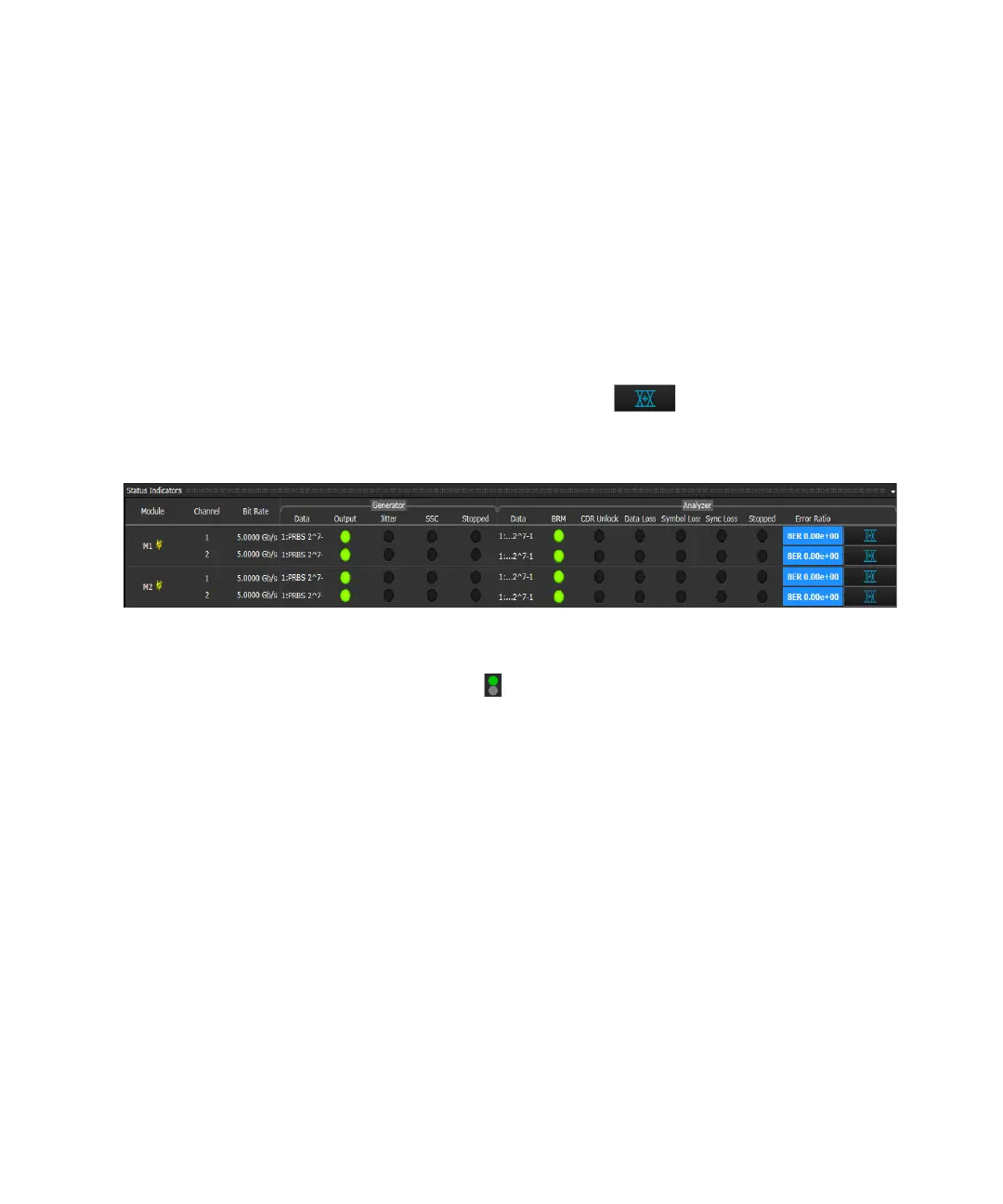

The Status Indicator window always appears whenever you launch the
M8070A user interface. However, you can open/close this window by
clicking on the Status Indicator button, present on the status bar.
