164 Keysight M8000 Series of BER Test Solutions User Guide
4 User Interface - M8020A Display Views
Mux Only Mode
The Mux Only mode is used to multiplex the signal in 2:1 ratio. In this
mode, M8061A receives the non-inverted signal from the two Data Out
ports of M8041A module and multiplex them in one channel in 2:1 ratio.
Using this mode, you can set the parameters of Data Out port of M8061A
module.

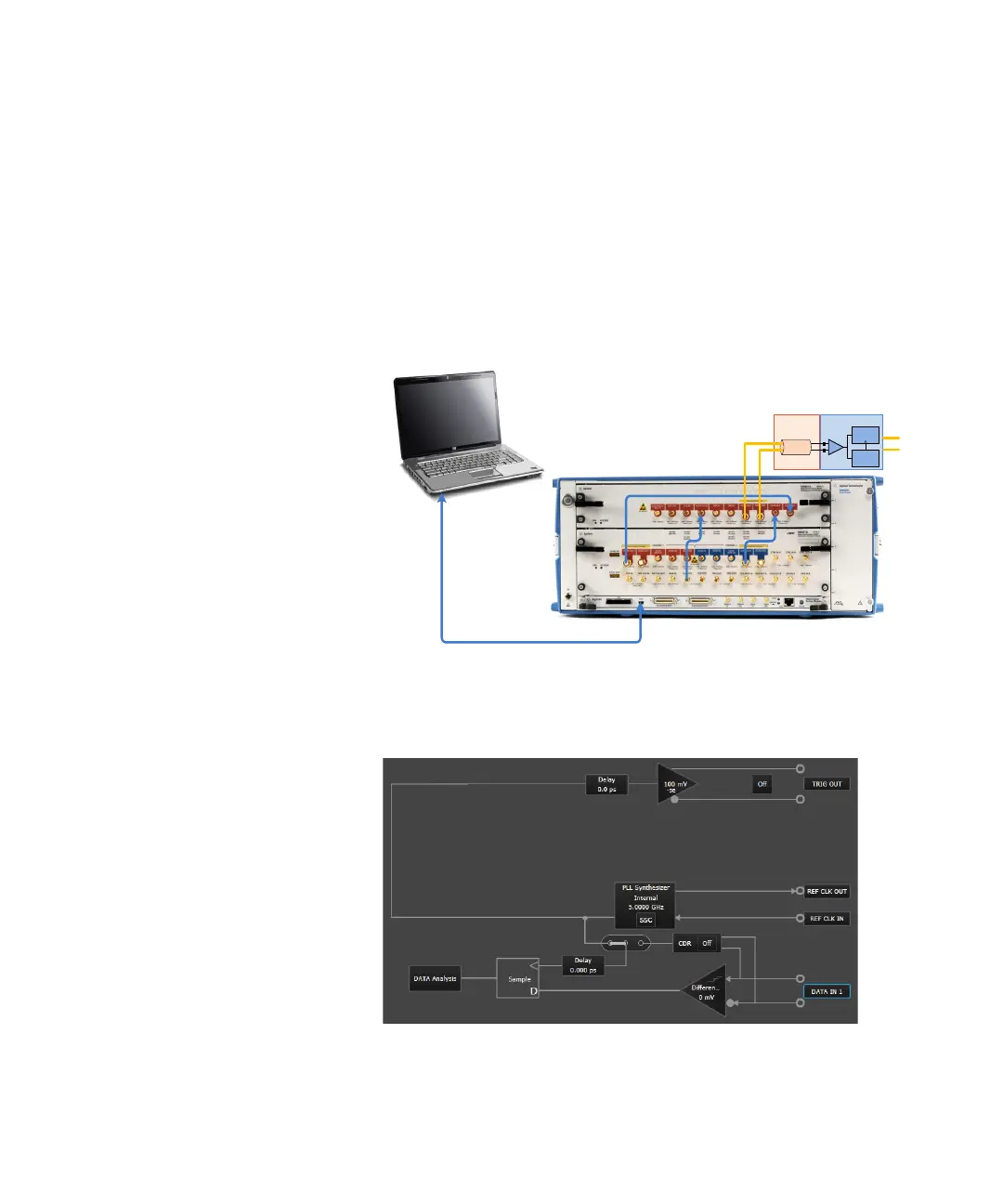

The following figure shows the connection diagram of Mux Only mode:
The following figure shows the block diagram M8041A module in Mux
Only mode:
USB
Channel (CH)
Receiver (RX)
RX latch
CDR
Channel
DUT
