Keysight Technologies M8000 Series User Manual

Keysight M8000 Series of BER Test Solutions User Guide 165
User Interface - M8020A Display Views 4

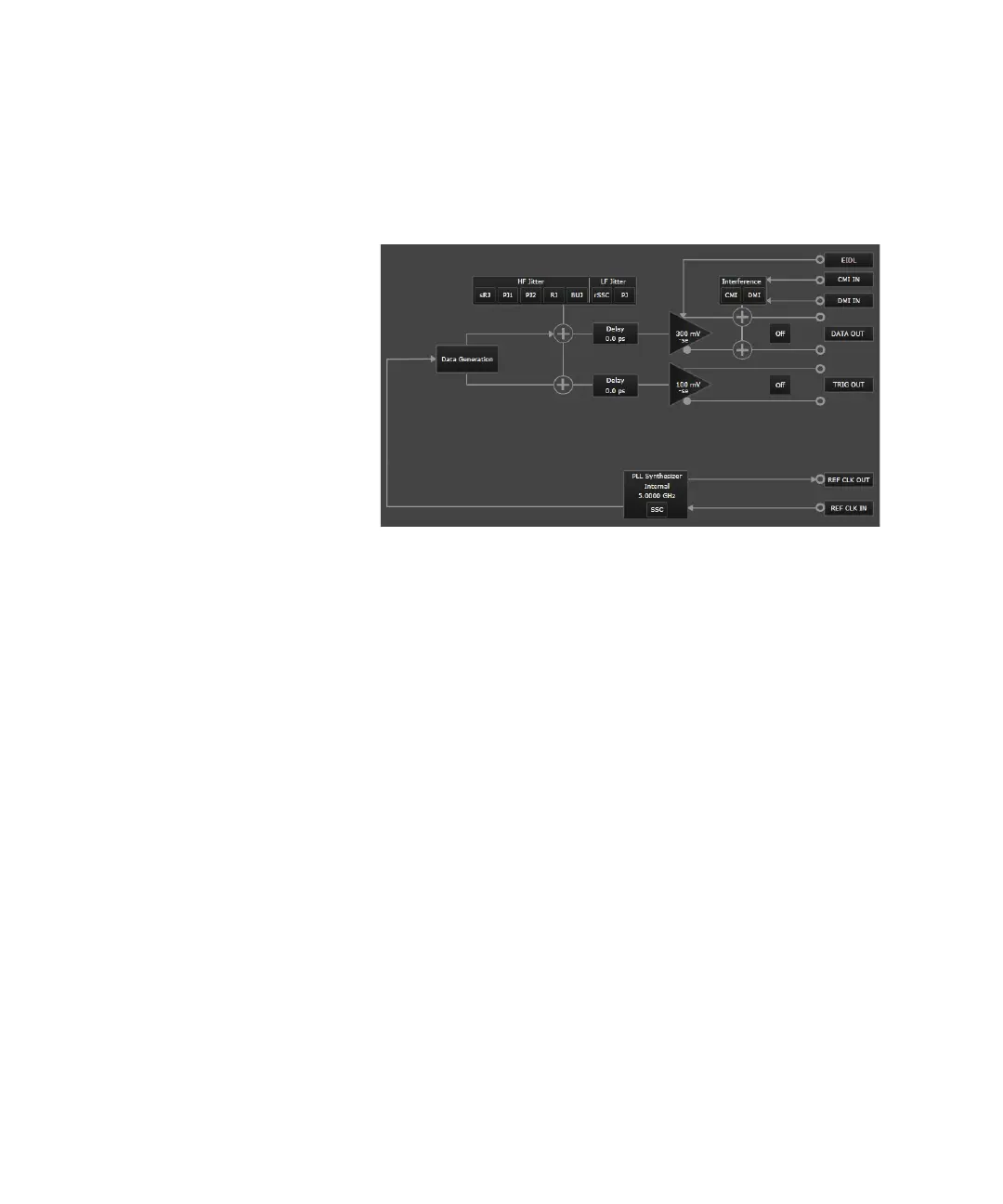

The following figure shows the block diagram M8061A module in Mux
Only mode:
Demux Only Mode
The Demux Only mode is used to de-multiplex the signal in 1:2 ratio. In
this mode, the M8061A module provides the output to CDR module
(N4877A) which de-multiplex the received signal in 1:2 ratio. Using this
mode, you can set the parameters of Data Out and Data In ports of
M8061A module.
The following figure shows the connection diagram of Demux Only mode:
