264 Keysight M8000 Series of BER Test Solutions User Guide
5 Setting up Generator

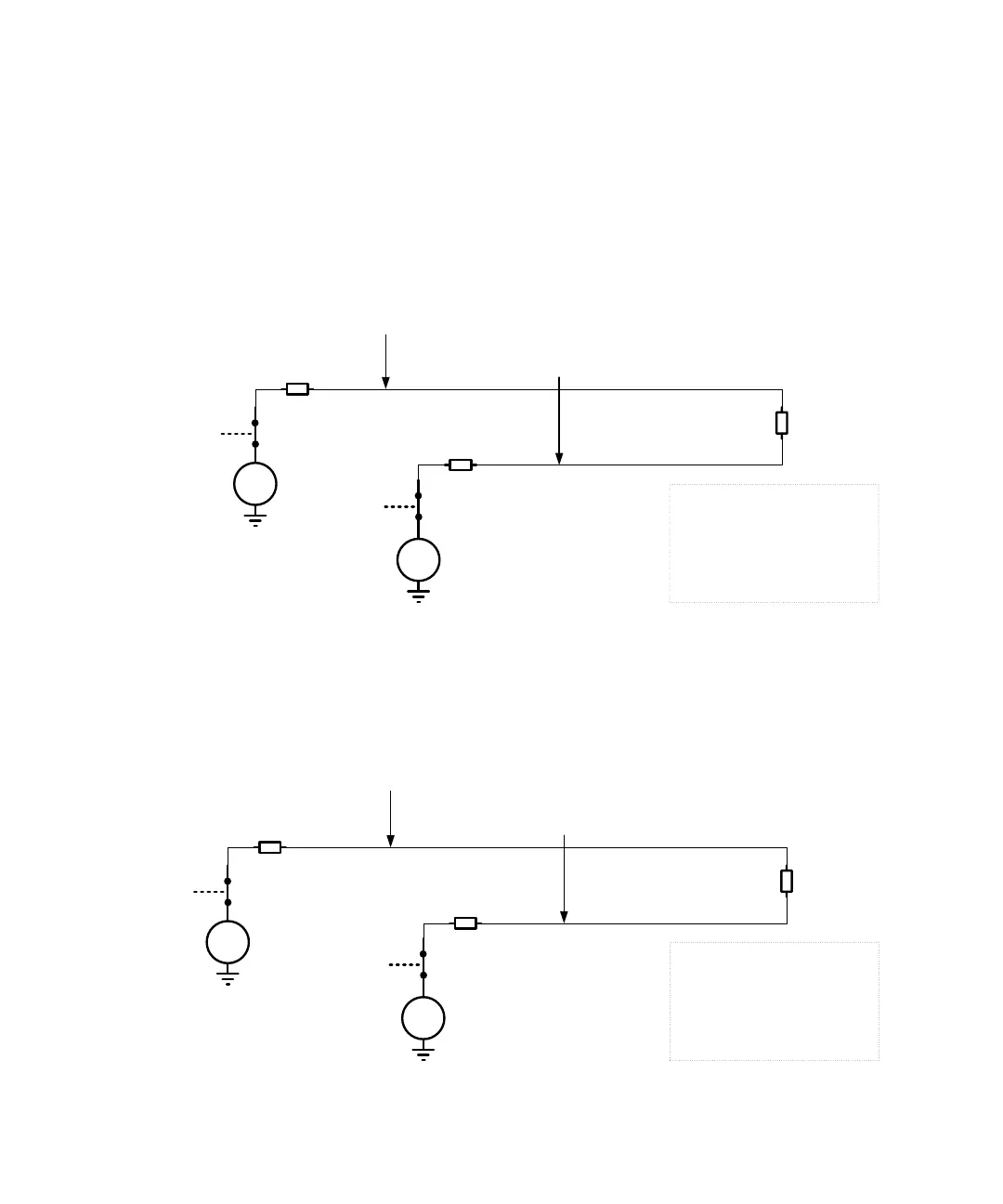

DC Check for Balanced Termination
Step 1 If the Measured Voltage = OFFSET -> Pass, go to Step 2. However, this is
false if DUT is unbalanced with VT unequal to OFFSET.
Step 2 If the Measured Voltage = OFFSET + 100 mV -> Pass, go to Step 3.
However, this is false if DUT is unbalanced (no matter if VT is equal or
unequal to OFFSET).
V
Measured Voltage = OFFSET → Pass
VCCO P = OFFSET
V
VCCO N = OFFSET
Closed
Switch
Internal 50 Ohm
Legends
VT – Termination Voltage
P – Normal (Non-Inverted)
N – Complement (Inverted)
VCCO – Output Voltage Power Supply
DUT – Device Under Test
This is false if DUT is unbalanced with VT unequal to OFFSET
Closed
Switch
DUT 100 Ohm
Internal 50 Ohm
V
Measured Voltage = OFFSET +100 mV → Pass
VCCO P = OFFSET +100 mV
V
VCCO N = OFFSET +100 mV
Closed
Switch
Internal 50 Ohm
Legends
VT – Termination Voltage
P – Normal (Non-Inverted)
N – Complement (Inverted)
VCCO – Output Voltage Power Supply
DUT – Device Under Test
This is false if DUT is unbalanced (no matter if
VT is equal or unequal to OFFSET)
Closed
Switch
DUT 100 Ohm
Internal 50 Ohm
