392 Keysight M8000 Series of BER Test Solutions User Guide
7 Setting up Patterns

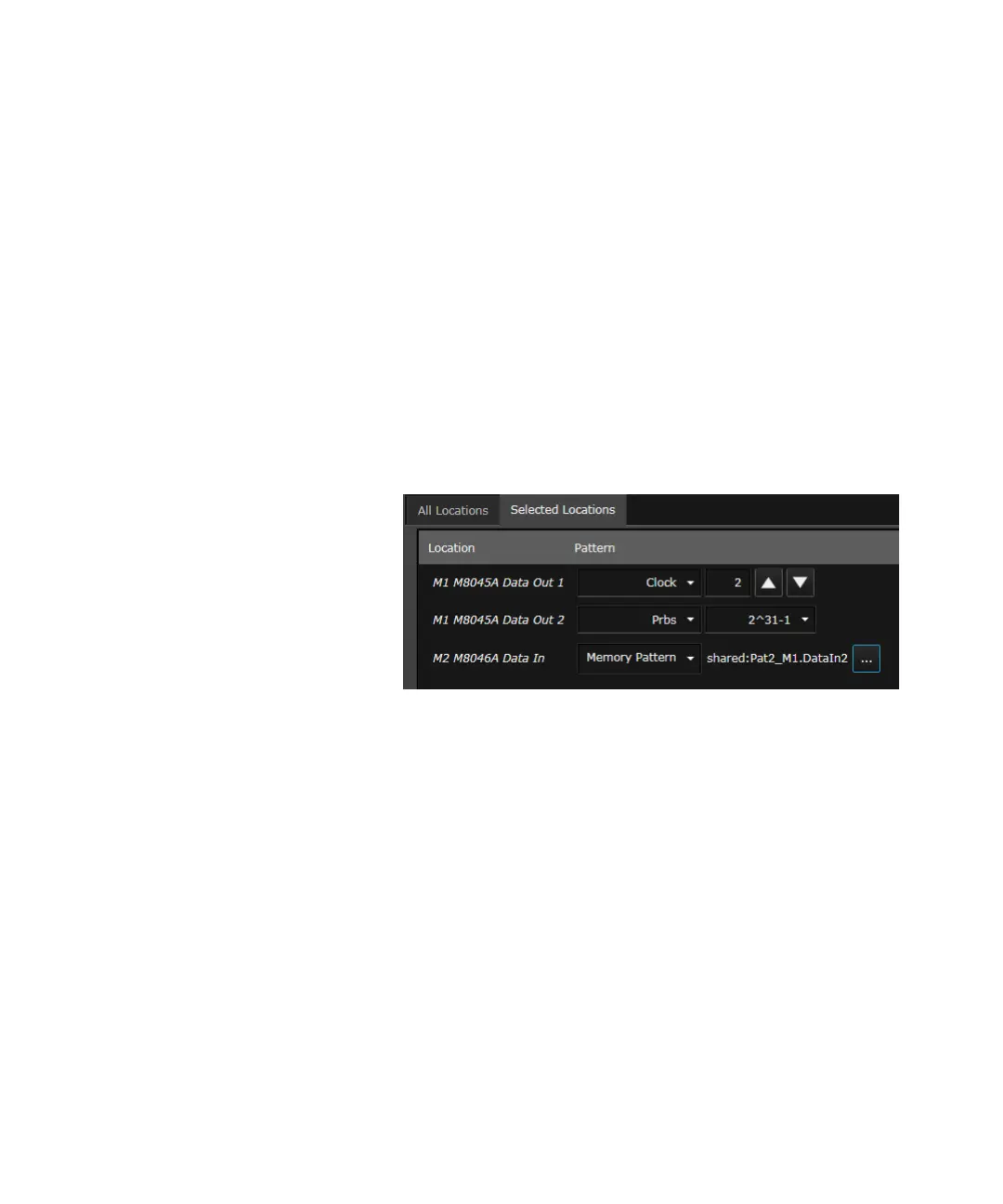

Selected Locations
This tab allows you to setup individual patterns for selected locations. You
to select the pattern from the following options:
•Clock
•Pulse
•PRBS
Refer to the Table 51 on page -382 and Table 52 on page -383 for the
list of available PRBS polynomials.
• Static
•Memory
In case the Memory option is selected, a Select Pattern dialog will
appear to load the memory pattern.
If you wish to open the Sequence Editor with the selected patterns, either
select the "Open sequence editor after applying changes" check-box or
click the Sequence Editor... button.
Click Apply to apply the changes.
