Keysight M8000 Series of BER Test Solutions User Guide 41
Know Your Hardware 2
• Adjustable ISI offered for M8041A and M8051A (option 0G5), software
2.0 and serial number >= DE55300500
• Built in 8 tap de-emphasis (option 0G4)
• Built in receiver equalization (CTLE, option 0A3)
• Built in reference clock multiplier for pattern generator (option 0G6)
• Simultaneous common mode and differential mode level interference
(option 0G7)
• Interactive link training (option 0S1, Software 1.5)
• Four universal control inputs with adjustable threshold
• Three universal control outputs with adjustable levels
• 2 Gb pattern memory per channel (requires software 1.5)
M8041A Module Components

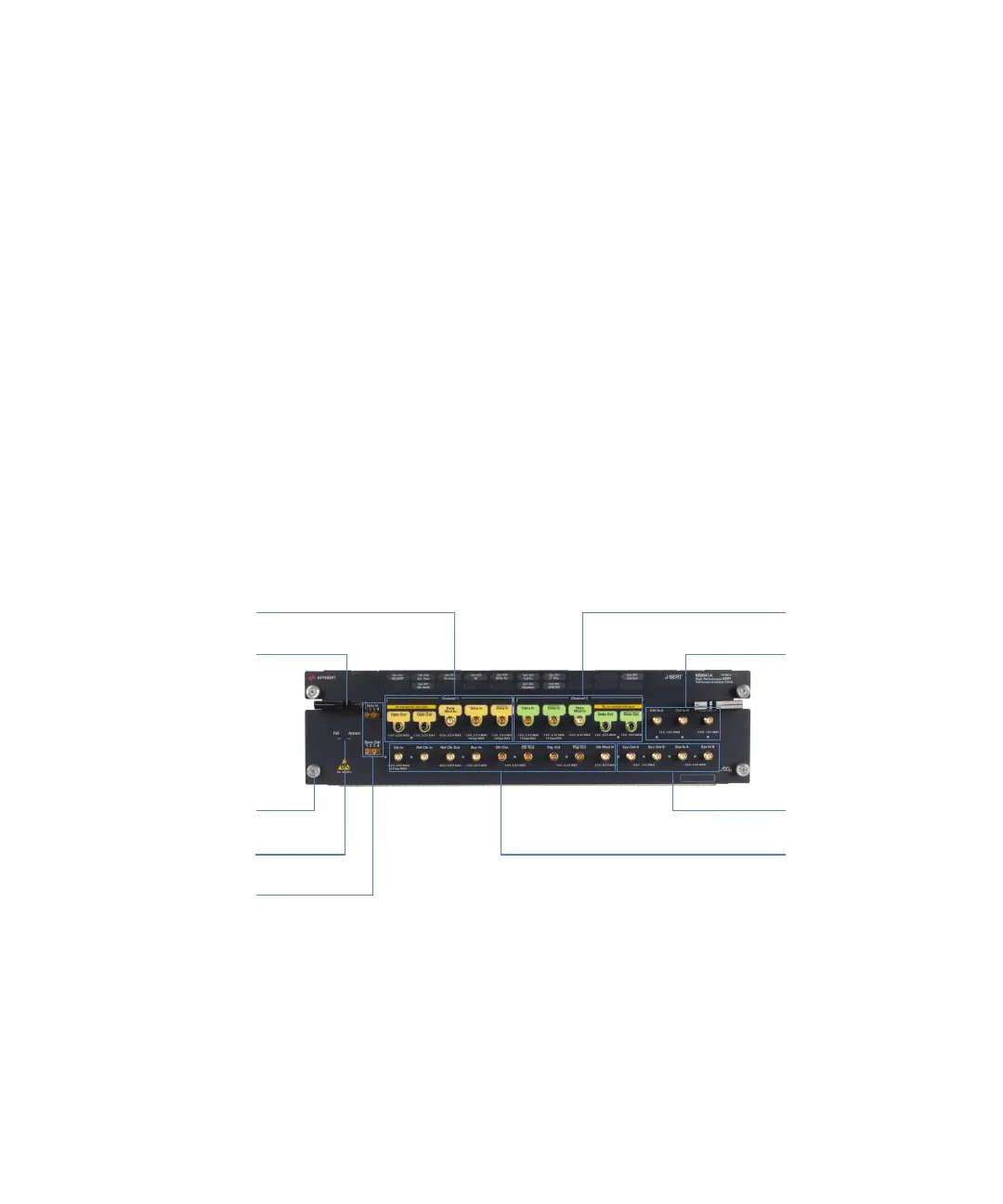

The following figure displays the front panel of the M8041A module with its
various components labeled.
Retaining Screws
Module Insertion/
Extraction Handles
Channel 1 Data
Inputs/Outputs
Channel 2 Data
Inputs/Outputs
Control Inputs/
Output
System Inputs/
Outputs
Clock Inputs/
Outputs
Front Panel LEDs
Sync In/Out
To Next Page
