418 Keysight M8000 Series of BER Test Solutions User Guide
7 Setting up Patterns
5 If the current pattern is in use in some other location(s), then the
orange Download button will get highlighted when the pattern is
modified.
6Click on the Download button to download the pattern. Once it is
download, the green Download button will appear.
Editing a Captured Pattern
To edit a captured pattern, it needs to be converted to an editable pattern.
Follow the given steps make the captured pattern editable:
1 Open an already saved captured pattern. Refer to Opening Existing
Patterns on page 401.
2 Select the bits to be edited in the patterns
3 Use the keyboard to enter the required bits. It can be in form of 0 or 1.

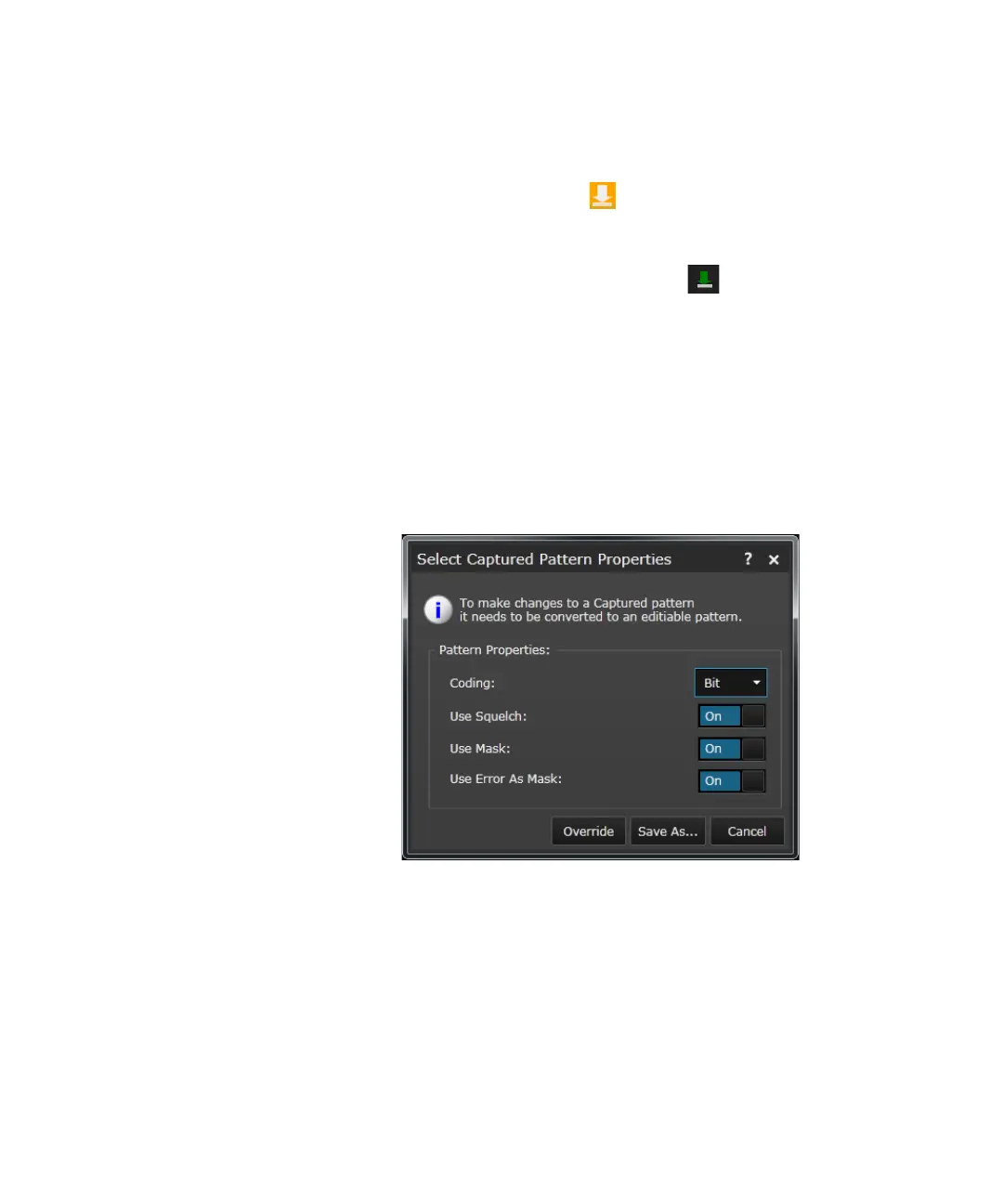

A Select Captured Properties dialog will appear:
4 Change the properties of current pattern. Using this option, you can
change the pattern coding and enable/disable Mask, Squelch and
Error as Mask.
The Use Error As Mask option is only visible when the Use Mask option
is enabled and coding is same as captured pattern.
5Click Override to remove all errors from the pattern.
6Click Save As. A Save Pattern As dialog will appear.
7 Specify the name and location and click Save.
