Keysight M8000 Series of BER Test Solutions User Guide 451

Setting up Patterns 7

Test Setup

Test Setup Requirements

The following are the test setup requirements to perform a USB link

training:

• Keysight M8020A High Performance Serial BERT with a M8041A

module

• One Keysight U7242A Fixture

• One 6 inch USB 3.0 cable

• Four SMA cables

• Four 11742A blocking capacitor

M8020A Setup

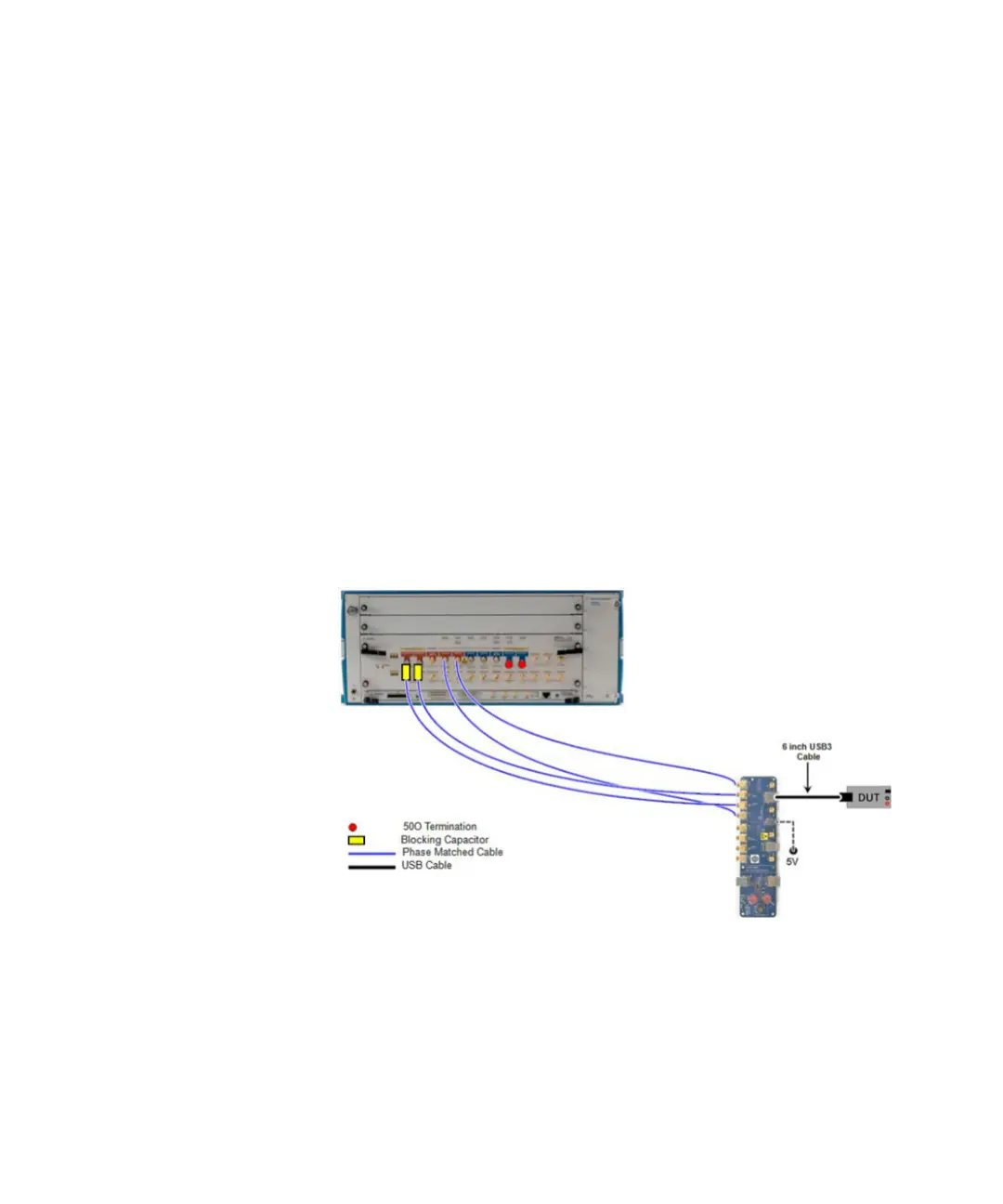

The following figure illustrates M8020A device setup to perform a USB link

training:
