Working with Measurements 8
• ErrorRatio@TargetConfidenceLevel: Displays the number of error ratio
achieved at specified confidence level at certain point of time.
• Results: Display the measurement result either Pass or Fail. It is only
available when the “Accumulation End” is selected as “Pass/Fail”.
However, when the symbol coded patterns are loaded in Sequence Editor,

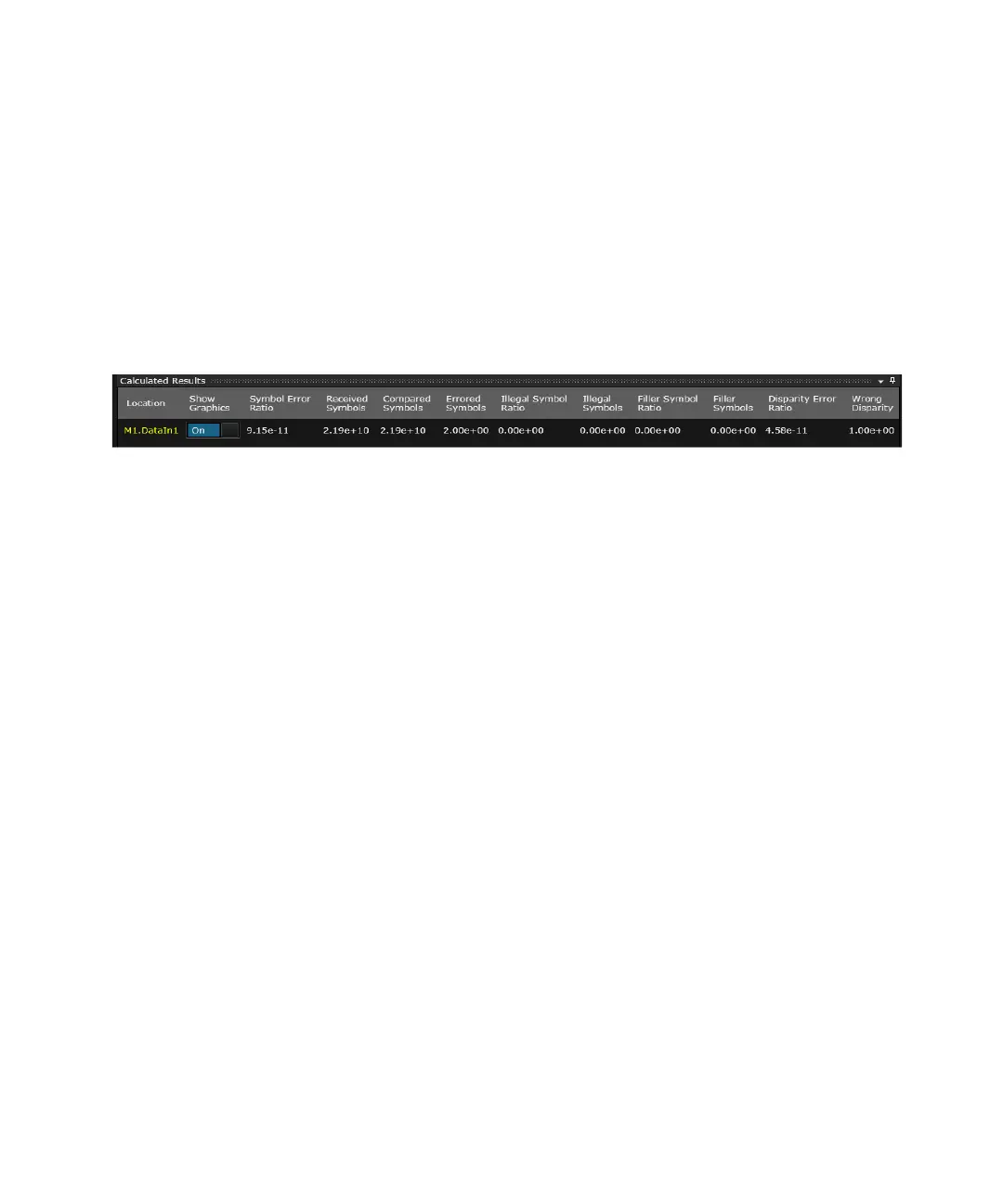

the following results are displayed:
• Symbol Error Ratio: Displays the symbol ratio of the number of errored
symbols to the total number of symbols received.
• Received Symbols: Displays the total number of Received Symbol
Count (all incoming symbols excluding incoming filler symbols)
received in a time interval.
• Compared Symbols: Displays the number of compared symbols
considered for the accumulation period.
• Errored Symbols: Displays the number of errored symbols measured
during the accumulation period.
• Illegal Symbol Ratio: Displays the ratio of the number of Illegal Symbol
count to the number of symbols received in the accumulation period.
• Illegal Symbols: Displays the total number of Illegal Symbols received
in the accumulation period.
• Filler Symbols Ratio: Displays the ratio of total no of filler symbols to
the number of symbols received during the accumulation period.
• Filler Symbols: Displays the total no of filler symbols received during
the accumulation period.
• Disparity Error Ratio: Displays the ratio of the number of illegal
disparity change count to the number of symbols received in the
accumulation period.
• Wrong Disparity: Displays the total number of wrong disparity received
in the accumulation period.
• Error Ratio: Displays the ratio of the number of errors to the number of
bits.
• Compared Bits: Displays the number of compared bits during the
accumulation period.
