• Errored Bits: Displays the number of errored bits during the
accumulation period.
• ConfidenceLevel@TargetErrorRatio: Displays the percentage of
confidence level achieved at specified target error ratio at certain point
of time.
• Results: Display the measurement result either Pass or Fail. It is only
available when the “Accumulation End” is selected as “Pass/Fail”.
• Total Words: Displays the total number of received sequencer words.
• Frame Error Ratio: Displays the ratio of the number of frame errors to
the number of frames received in the accumulation period.
• Frames: Displays the number of frames received in a time interval.
• Errored Frames: Displays the number of errored frames received in a
time interval.
• ErrorRatio@TargetConfidenceLevel: Displays the number of error ratio
achieved at specified confidence level at certain point of time.

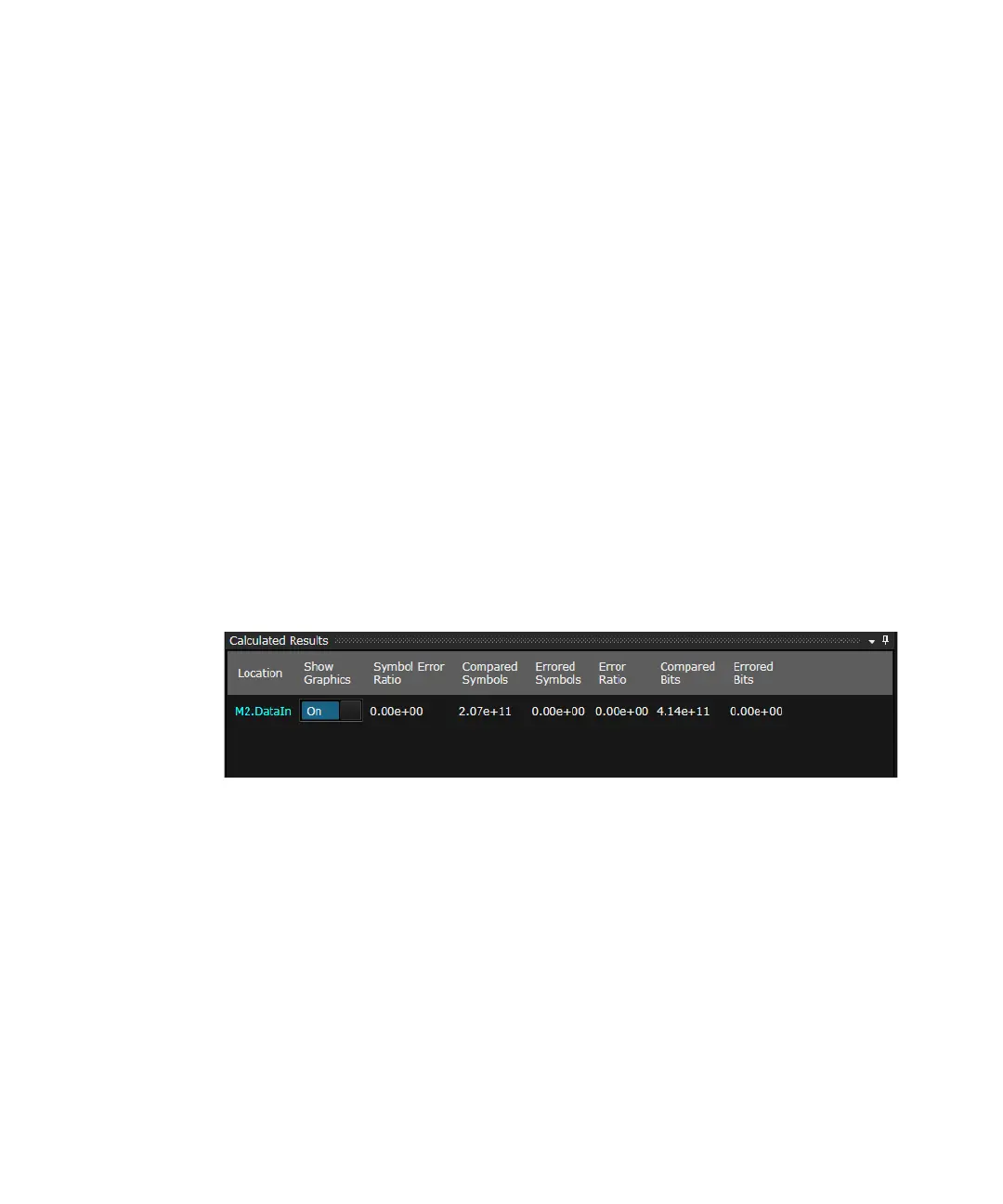

The following results are displayed when an Error Ratio measurement is
performed with PAM4 line coding:
• Symbol Error Ratio: Displays the symbol ratio of the number of errored
symbols to the total number of symbols received.
• Errored Symbols: Displays the number of errored symbols considered
for the accumulation period.
• Compared Symbols: Displays the number of compared symbols
considered for the accumulation period.
• Error Ratio: Displays the ratio of the number of errors to the number of
bits.
• Compared Bits: Displays the number of compared bits during the
accumulation period.
• Errored Bits: Displays the number of errored bits during the
accumulation period.
