Keysight M8000 Series of BER Test Solutions User Guide 595
Utilities 9

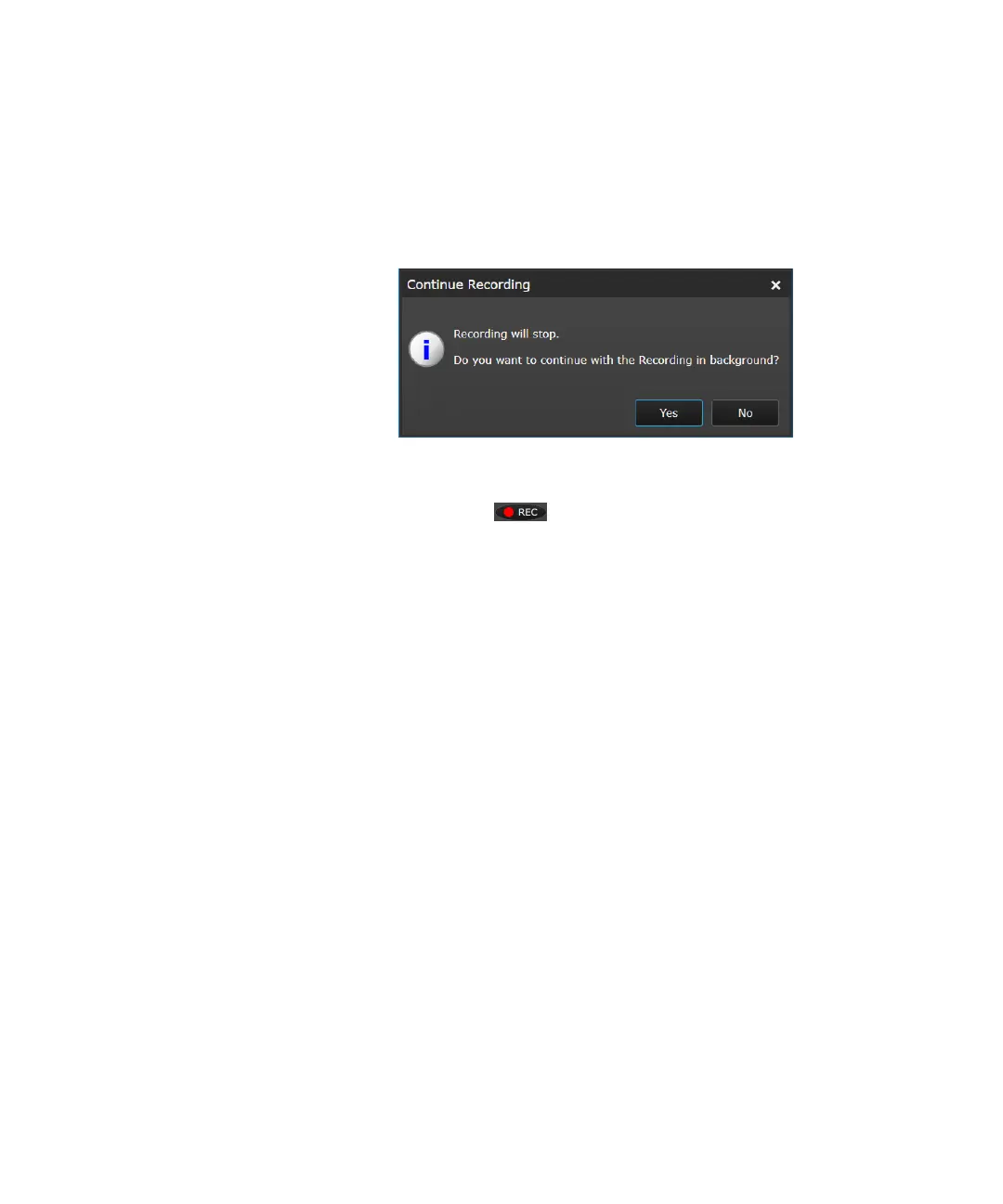

• Run SCPI Recorder in Background - You can continue the SCPI
recording in the background while you perform the other GUI functions.
To do so, click on the SCPI Recorder options > Close. You will see the
following message:
Click “Yes” to continue recording in the background. The SCPI
Recorder dialog will minimize. You can recall this dialog either on
pressing the button or clicking on Utilities > SCPI Recorder.
On closing the SCPI Recorder dialog, all the captured commands will
appear in the dialog unless the M8070A software instance is closed.
