98 Keysight M8000 Series of BER Test Solutions User Guide
3 Quick Tour with M8070A User Interface
The Sequence Editor allows you to create and maintain sequences. In
addition to this, it also allows you to edit the memory patterns. For details,
refer to Sequence Editor on page 359.
Measurements Menu
The Measurements menu provides the following selections:

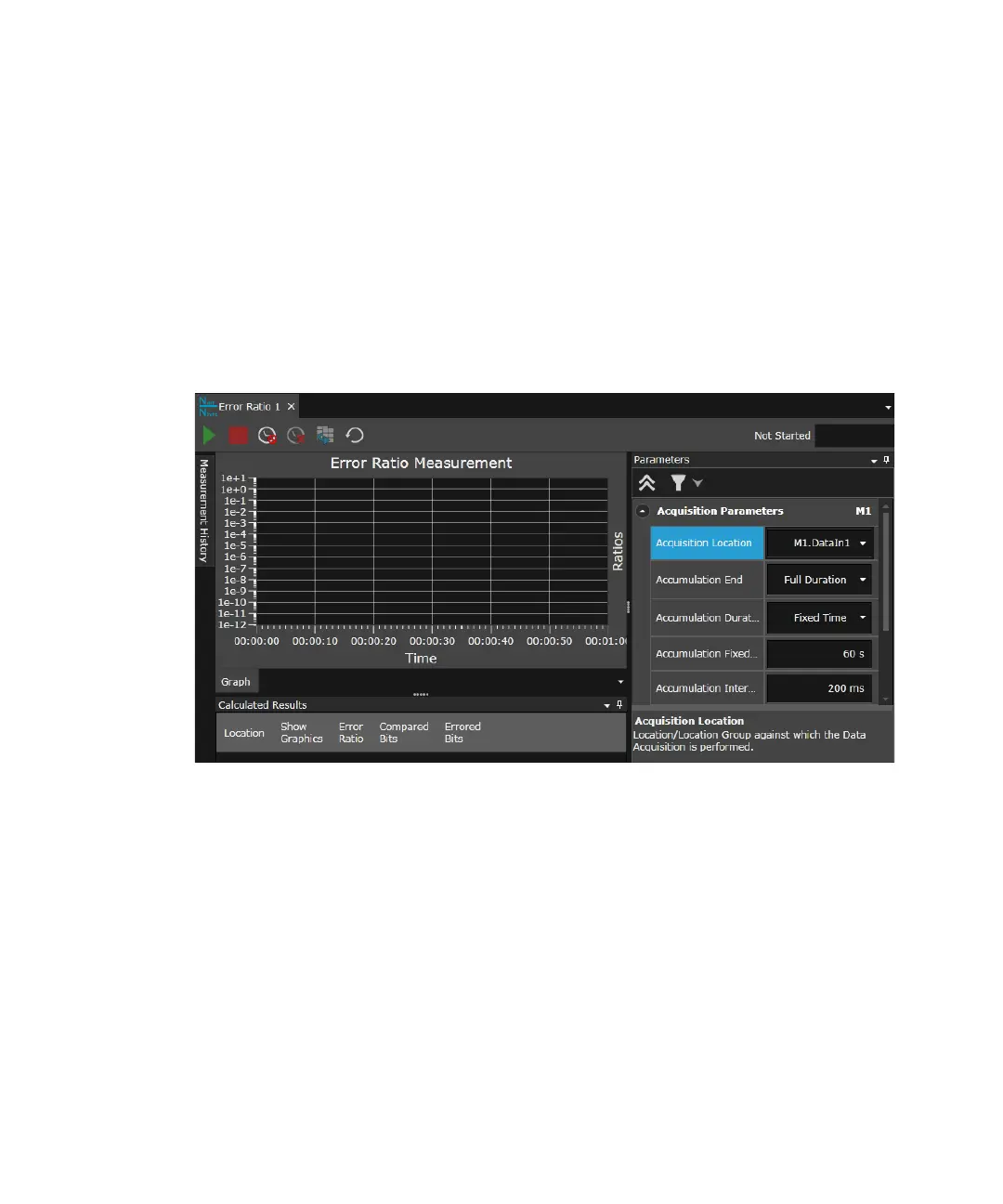

• Error Ratio - Opens the Error Ratio measurement user interface as
shown in the following figure:
The error ratio measurement allows you to collect measurement data
over a specific period. This can be used to create test scenarios that
are reproducible and comparable. Also, you can let tests run over long
times and then evaluate the results afterwards. For details, refer to
Error Ratio Measurement on page 467.
• Output Timing - Opens the Output Timing measurement user interface
as shown in the following figure:
