7.2.3.6 I/O-settings
With the button <I/O settings> (2) you can open the menu „I/O-settings“ (3).
This menu provides the setting of the assignment of the available digital inputs and
outputs.
3 inputs and 4 outputs are available.
The selection of the functional area „Inputs“ and „Outputs“ happens by clicking on the
accordant register card (4).
With the button <OK ()> (5) you can close the menu and you can save the settings.
The button <Cancel> (6) closes the menu without taking over the carried out changes.

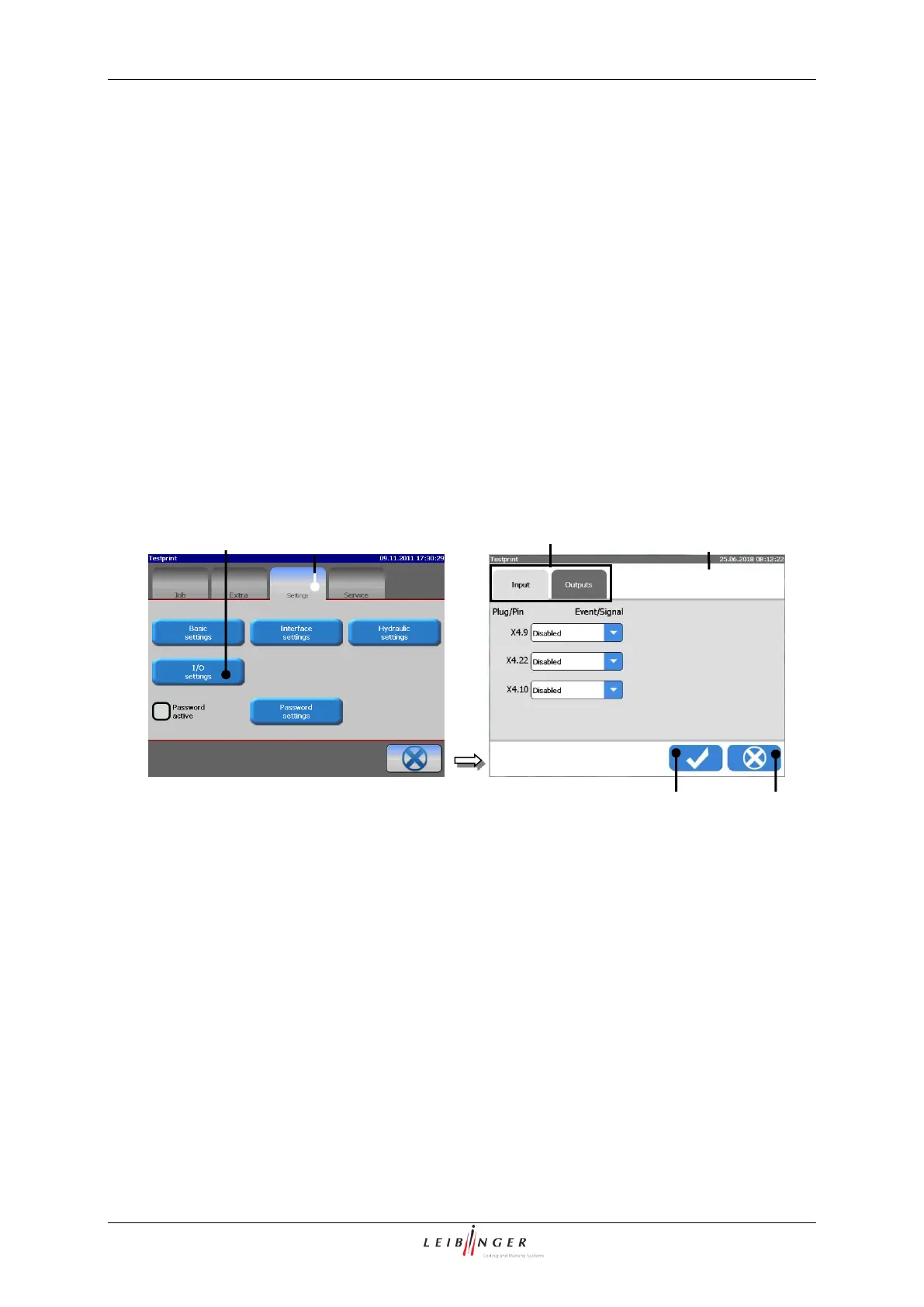

Figure 81
Menu "I/O settings"
1 – Register card <Settings>
4 – Register cards
2 – Button <I/O settings>
5 – Button <OK ()>
3 – Menu <I/O settings>
6 – Button <Cancel>
3
2
5
6
1
4
