Page 206 Job editor Group 8
Release R1.12 en JET2 neo
8.5.3.1 Encoder source
(StrokeGo-source)
With this setting you can define the encoder source.
 Intern: If this function is activated, the signal is generated by the printer and needs no
external encoder device.
Additionally you have to enter the <Internal speed (intern Speed)> (3).
Attention! You should only work with an internal encoder source if the
product is always directed at the print head with a fix defined and constant
speed. For unsteady production speeds a distortion of the print image can
be caused.
You will find further information regarding this topic in the chapter Internal
speed (page 207)!
 Extern: If this function is activated the signal has to be generated by an external
encoder (e.g. incremental encoder). The encoder has to be connected to the interface
X1 of the LEIBINGER JET2neo.
Additionally you have to define the <Encoder direction> (4) and the <Resolution>
(5).

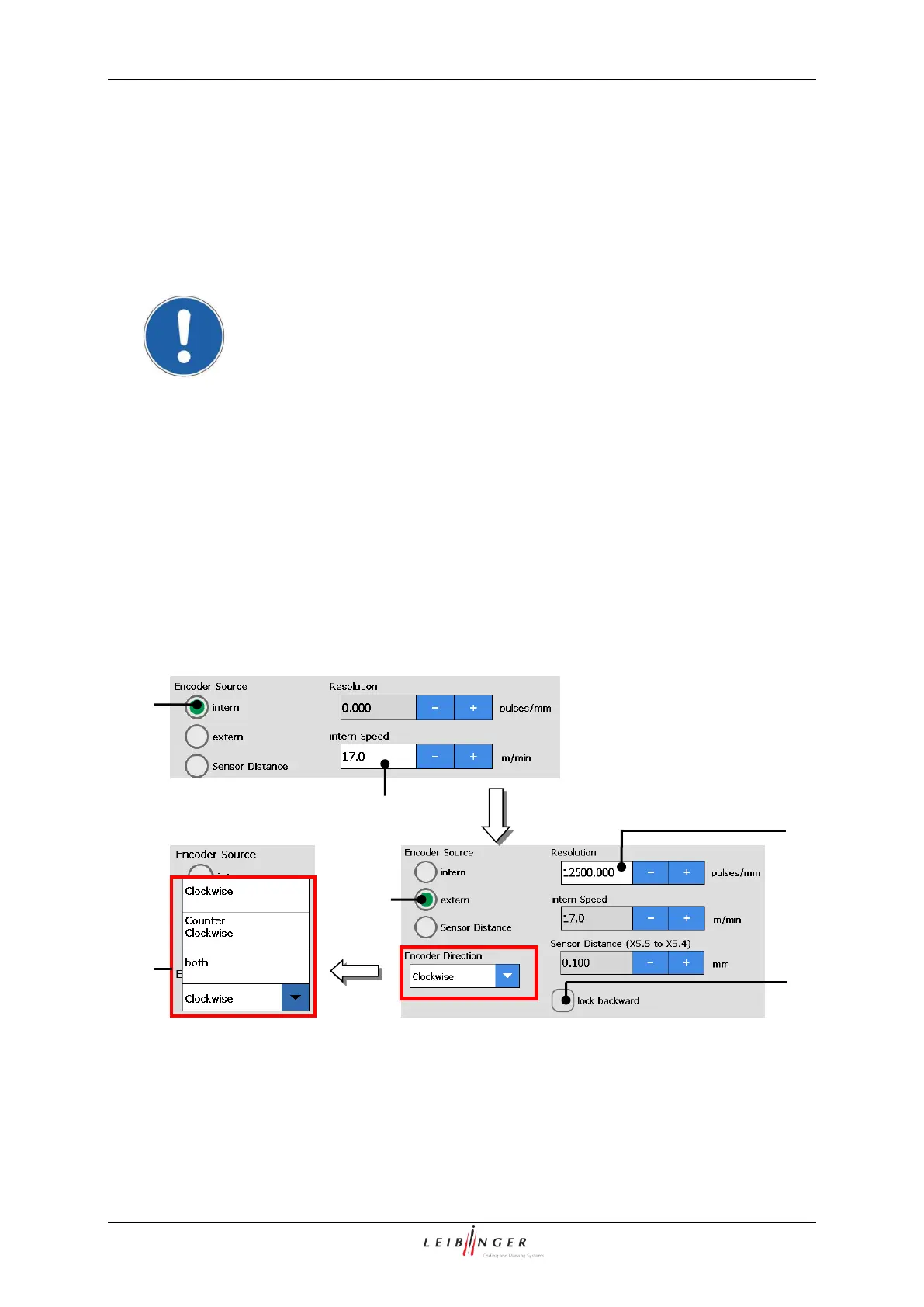

Figure 129
Encoder source
1 – Control box <Encoder source intern>
4 – Selection box <Encoder direction>
2 – Control box <Encoder source extern>
5 – Display field <Resolution>
3 – Display field <Intern speed>
6 – Control box <lock backward>
1
3
6
5
2
4
