Leibinger JET2neo - Interface X3 (Outputs)

Group 5 Transport/Start up Page 47
JET2 neo Release R1.12 en

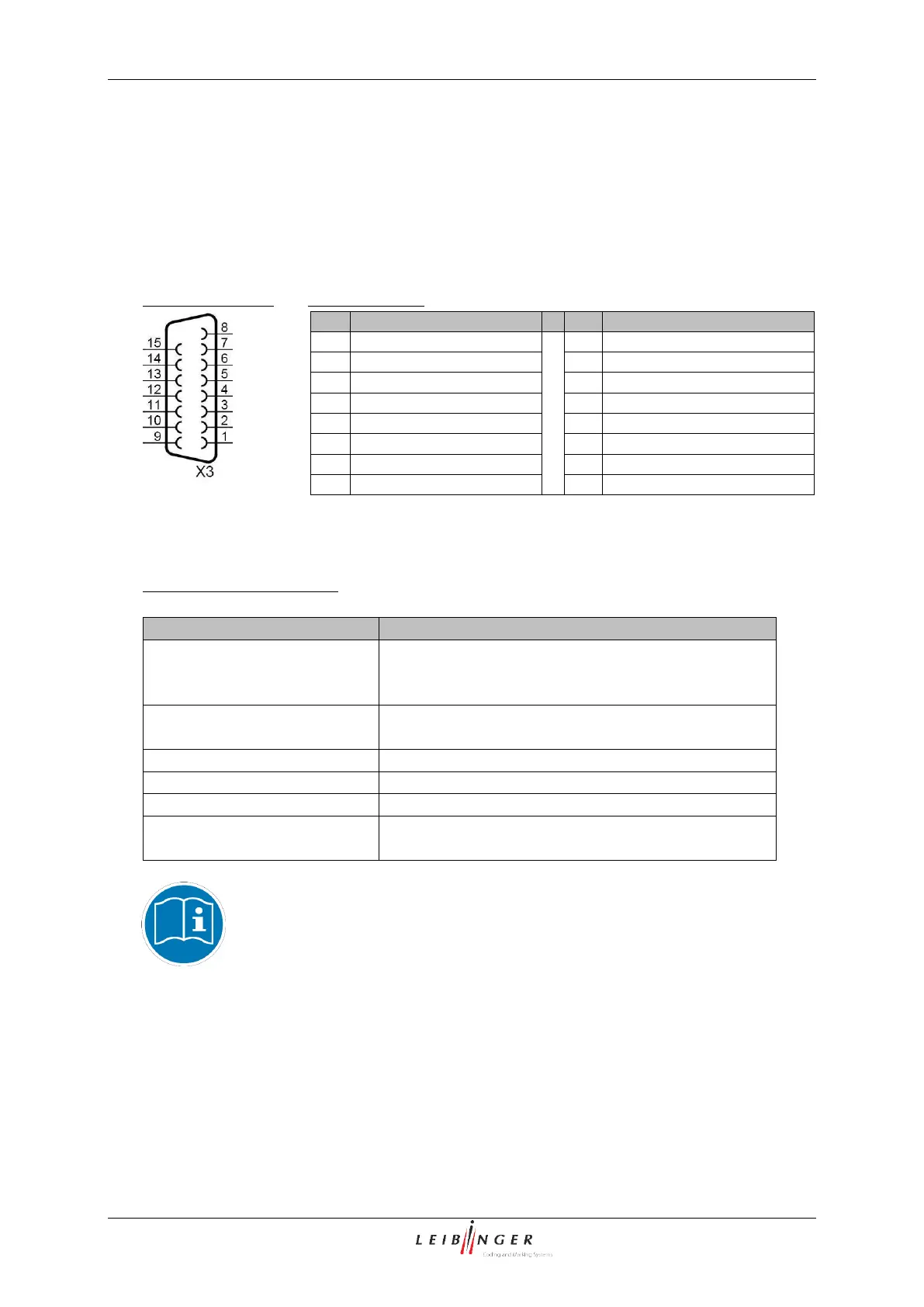

5.5.3 Interface X3 (Outputs)
4 outputs which can be freely selected are available for special functions. The outputs 1-
3 are predefined as a standard and should be not changed.
 Output 1 = Print stop error
 Output 3 = Ready to print
 Output 2 = Refill warning
Plug assignment:
Pin connection:
Specifications Output 1-4:
Parameter
Value
Driver type
24V high side driver
ON = +24V
OFF = high resistance
Output current
max. 700mA/output
max 700 mA totally
(1)
Max. switching frequency
2 kHz
(2)
Max. delay time
100µs
Turn on resistance
max. 0,28 Ohm
Features
 Short-circuit-proof
 Overcurrent- and excess temperature –proof
The function allocations of the outputs are carried out with the software of
the JET2neo in the menu Main menu  Settings  I/O-settings 
Outputs.
You will find a circuit diagram of the interface in the appendix of this
manual!
(1)
All 24V ouputs which are designated with (1) are protected by a self-reset fuse with 700mA, that
means the sum of all output currents which are supplied of this 24V should not exceed 700mA.
(2)
Depending on the set function.
Pin
Designation
Pin
Designation
1
Output 1
9
2
Output 2
10
3
Output 3
11
4
Output 4
12
5
+24V
(1)
13
Reserved
6
Reserved
14
Reserved
7
Reserved
15
GND
8
GND
Reserved = Do not connect
