8.5.3.5 Return stop
(Lock backward)
With the control box <lock backward> (6) the function „lock backward movement of the
encoder“ is activated or deactivated.
For activated “lock backward” the strokes which are generated for a possible backward
motion will be included for following forward motion to control the correct start of the text
output.
That means the print will be only continued if the correct printing position has been
reached. Therefore you will get a print without any gaps or overlaps.
8.5.3.6 Speed measuring with two sensors
As an alternative to the use of an external encoder or a constant internal speed there is a third
option available:
The current production speed can be measured based on the signals from two sensors
connected to interface X5:
- Sensor 1 has to be connected to X5.5 (PrintGo Gate input) and
- Sensor 2 to X5.4 (PrintGo input).
With this setup PNP-sensors are required for both inputs.

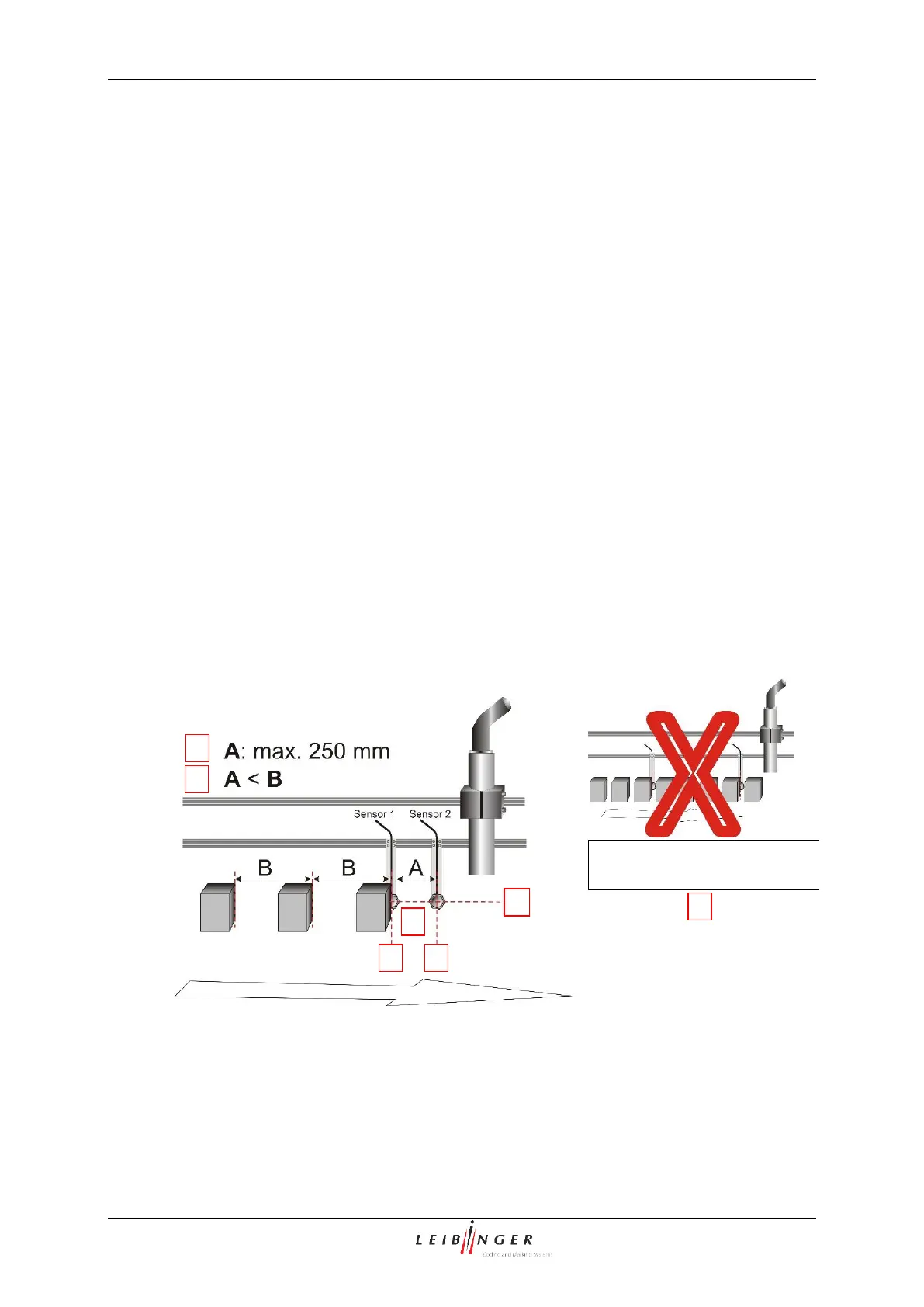

Sensor setup
Wrong setup!
5
1
2
3
4
7
8
