Leibinger JET2neo - Figure 117 - Printstyle Parameter Values (Font Width); Figure 118 - Printstyle Parameter Values (Orientation); Orientation

Page 190 Job editor Group 8
Release R1.12 en JET2 neo

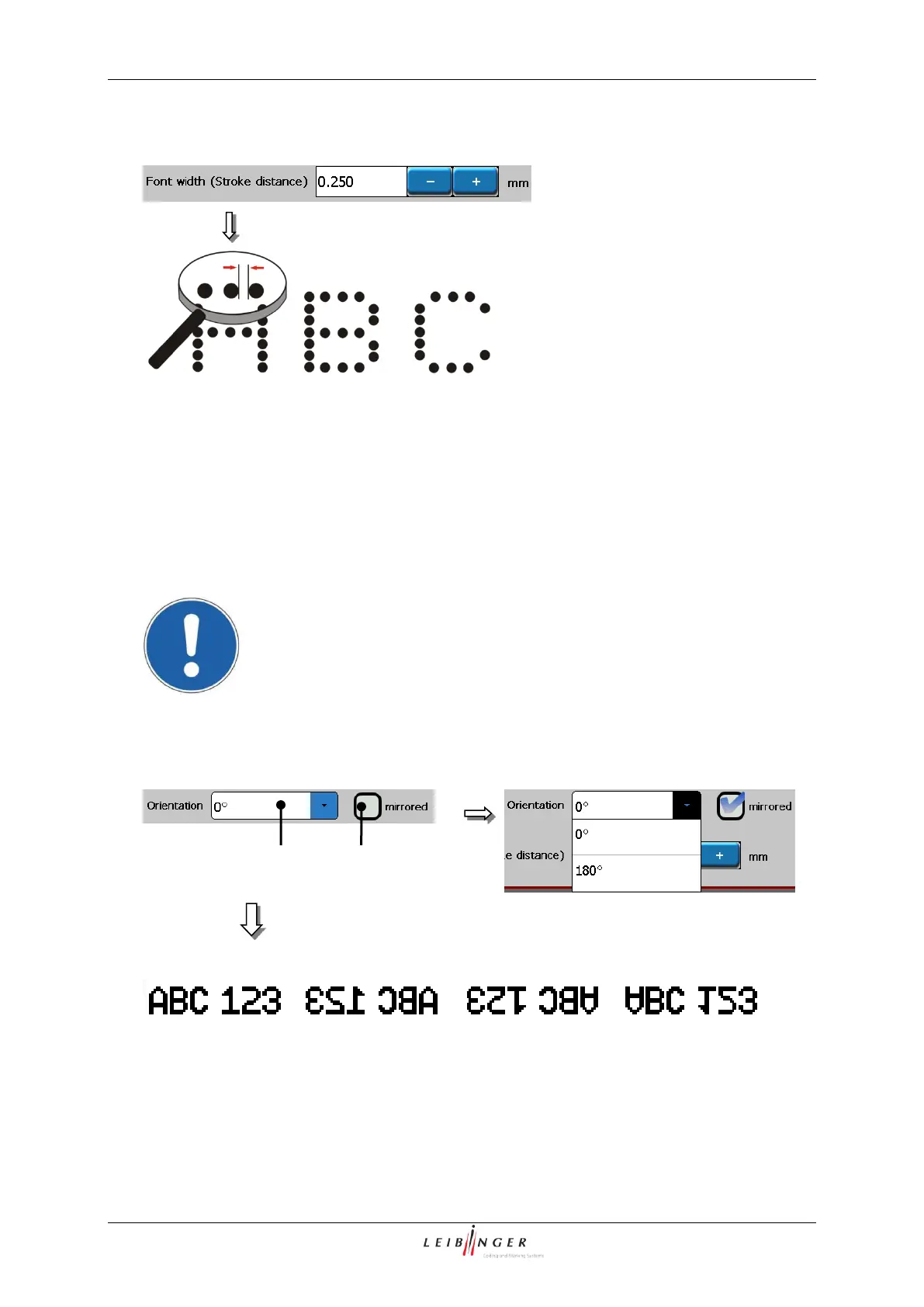

Figure 117
Font width
8.5.1.3 Orientation
With the Pop-up window <Orientation> (1) you can rotate all printing elements by 180°.
To get a reflection you have to activate the control <mirrored> (2).
Attention!
The made settings have not only an effect on single printing objects but
on the complete print-band!
Figure 118
Orientation
normal display
mirrored
180° rotated
180° + mirrored
1 – Pop-up window <Orientation>
2 –Control box <mirrored>
2
1
