7.2.3.6.2 Outputs
With the register card <Outputs> you can define the assignment of the available outputs.
Attention! Standardly the outputs 1- 3 are already predefined !
 Output 1 (X3.1) = Print stop error
 Output 2 (X3.2) = Refill warning
 Output 3 (X3.3) = Ready to print
E.g.: The output 1 (X3.1 (of the Pin No. 1 of interface X3)) should be assigned.
Proceeding:

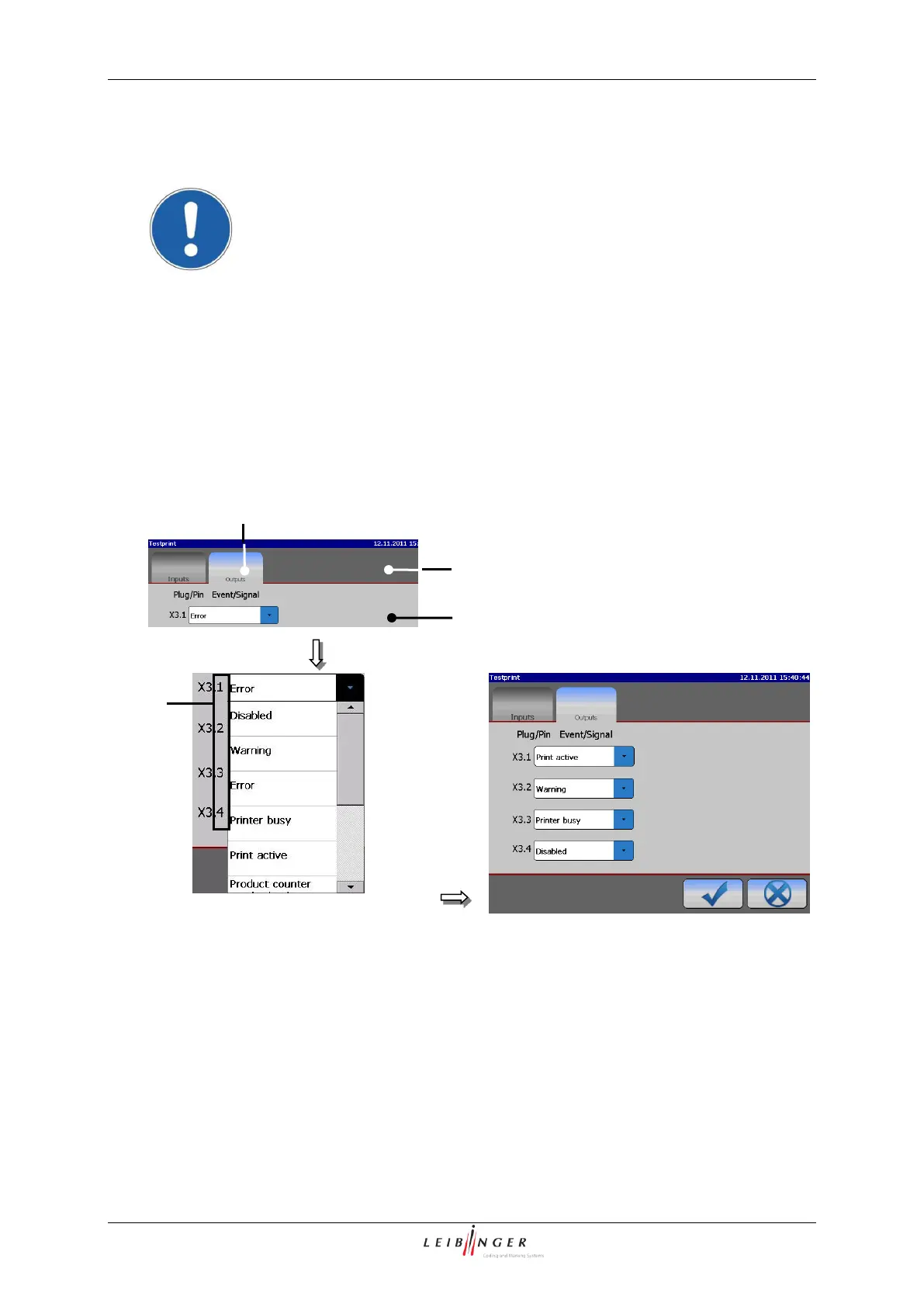

Figure 83
Carry out output assignment
1 – Menu <I/O-settings>
3 – Pop-up window <X3.1>
2 – Register card <Outputs>
4 – Pin designation
4
1
3
2
