Page 42 Transport/Start up Group 5
Release R1.12 en JET2 neo

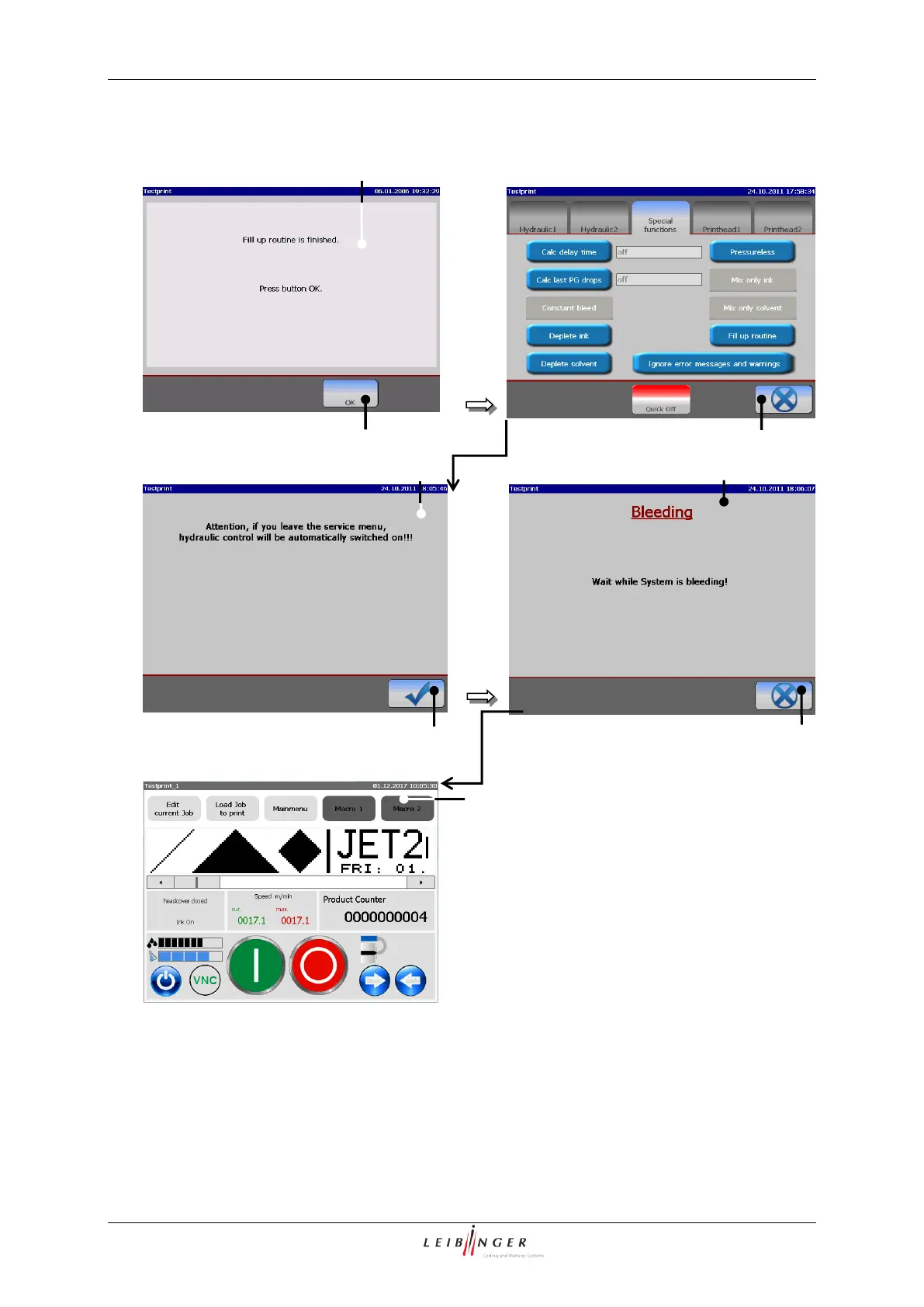

Figure 10
Fill up routine (Step 2)
9 – Message <Fill up routine finished>
13 – Button <OK ()>
10 – Button <OK ()>
14 – Message <Bleeding>
11 – Button <Close>
15 – Button <Cancel>
12 – Message <Hydraulic control>
16 – Basic menu
9
14
10
16
15
13
11
12
