6.4.1 Number blocks

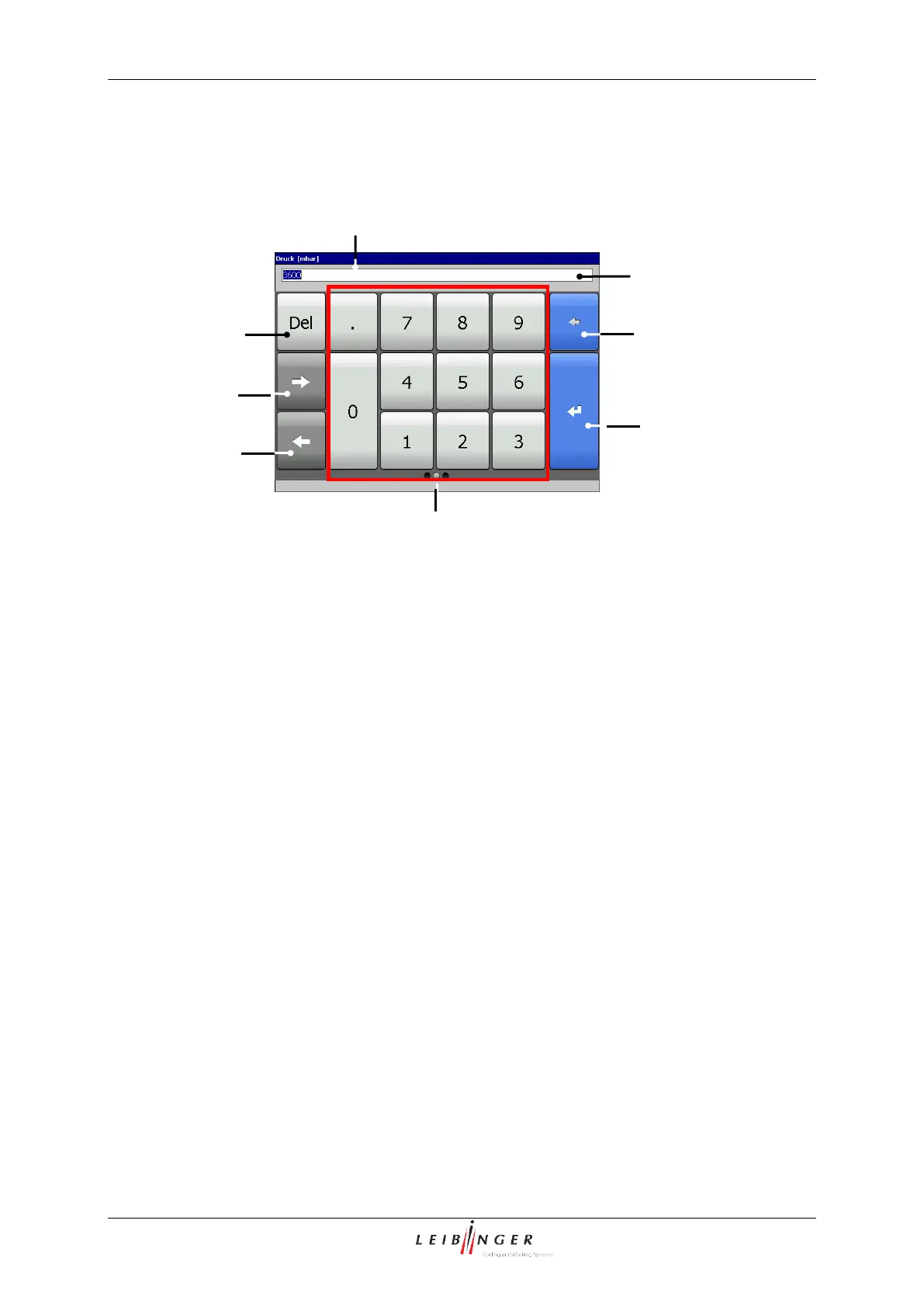

Figure 19
Structure of the number blocks (Example view)
1 – Title bar
4 – Button <>
7 – Button <Backspace>
2 – Display
5 – Button <>
8 – Button <Return >
3 – Figures (Digits)
6 – Button <Del>
The required values (figures) are entered with the number blocks.
 In the title bar (1) of a number block the name of the parameter currently to be entered
and its unit if necessary is displayed.
 The entered value is shown in the Display (2).
 The button < Backspace > (7) deletes the character in front of (to the left of) the
current cursor position.
 The button <Del> (6) enables the deletion of the characters behind (to the right of) the
current cursor position.
 With the button <> (4) you can shift the current cursor position by one digit to the
right..
 With the button <> (5) yi ou can shift the current cursor position by one digit to the
left.
 With the button <Return > (8) you can take over the input and the number block
closes.
